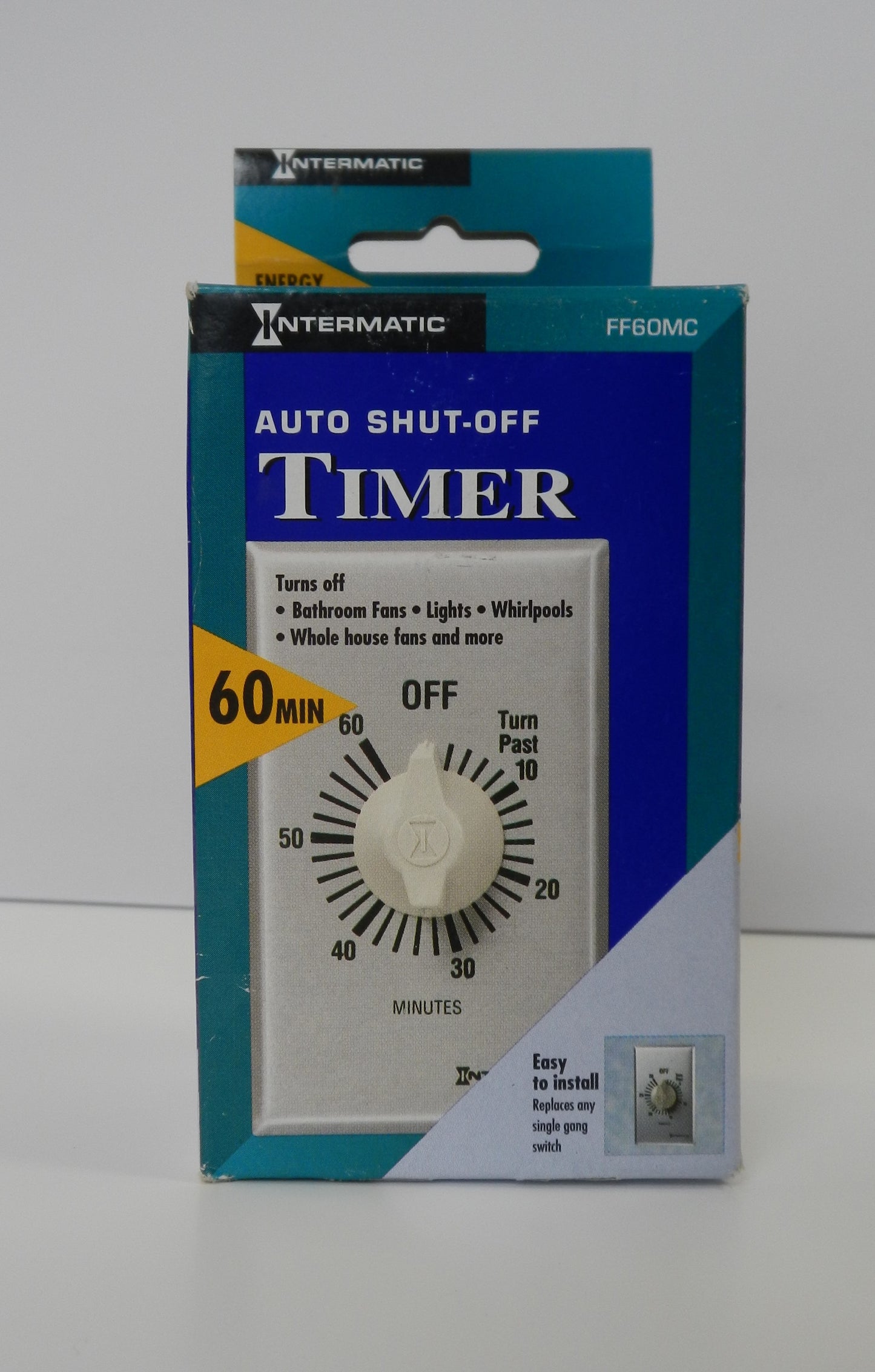

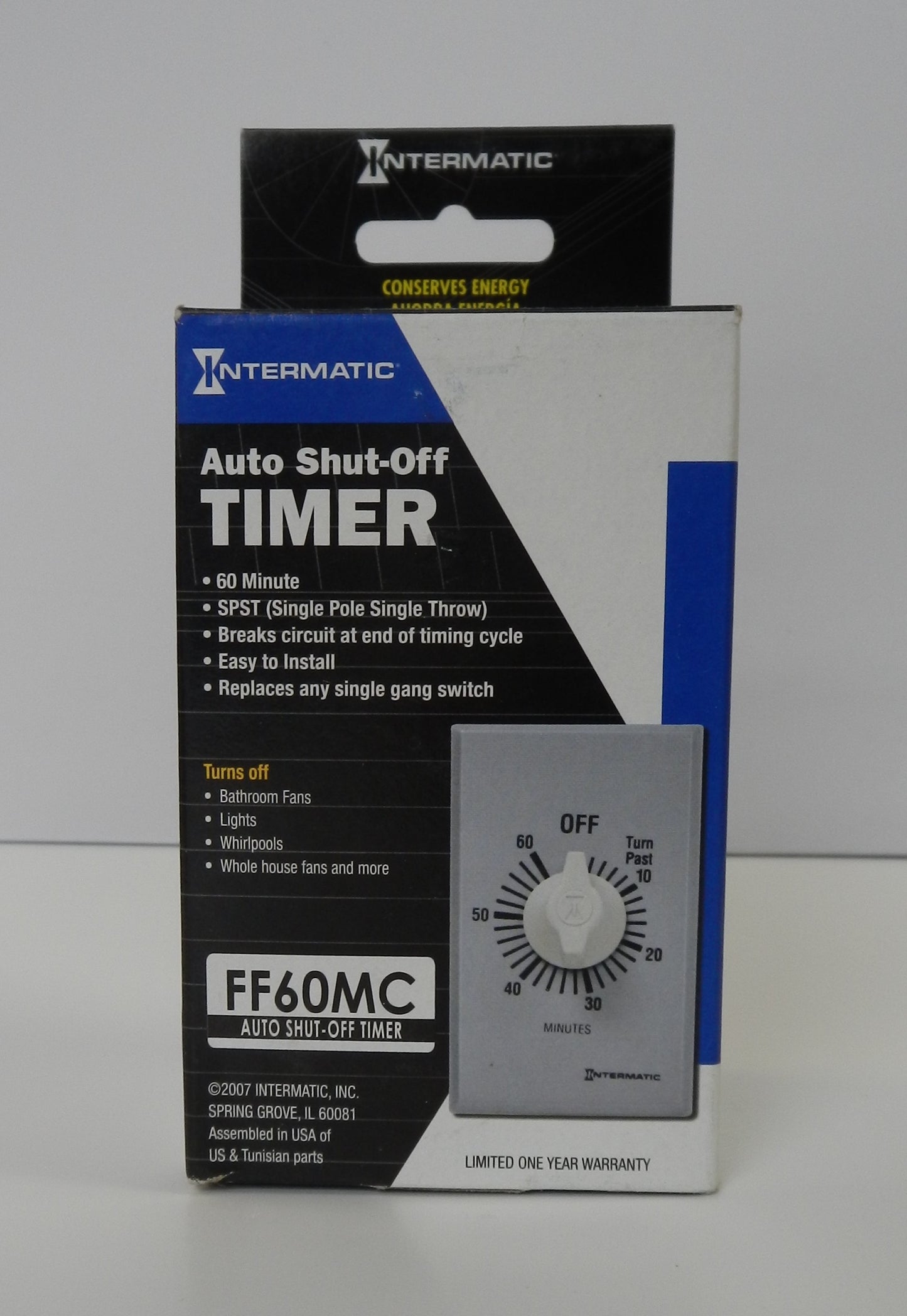

FF60MC Intermatic 60-Minute Spring-Wound Countdown Timer SPST 125-277VAC Commercial Silver

Description:

• Genuine Intermatic commercial-grade spring-wound countdown timer for automatic shut-off of electrical loads
• 60-minute mechanical countdown timer requires no electricity to operate
• SPST (Single-Pole Single-Throw) switch automatically turns connected equipment OFF when the timer expires
• Compatible with 125–277 VAC, 50/60 Hz electrical systems
• Designed to replace a standard single-gang wall switch
• Ideal for controlling bathroom exhaust fans, lighting, ventilation systems, heaters, and small motors
• Brushed silver metal finish with matching wall plate included
• Compatible with LED, CFL, fluorescent, and incandescent lighting
• No neutral wire required, making it ideal for retrofit installations
• Heavy-duty commercial design for offices, schools, industrial facilities, and residential applications

Specifications:

• Manufacturer Name: Intermatic
• Part Number (MPN): FF60MC
• Product Series: FF Series Commercial
• Product Type: Spring-Wound Countdown Timer
• Countdown Time: 60 Minutes
• Switch Type: SPST (Single-Pole Single-Throw)
• Operation: Mechanical / Analog
• Hold Function: No
• Input Voltage: 125–277 VAC
• Frequency: 50/60 Hz
• Neutral Required: No

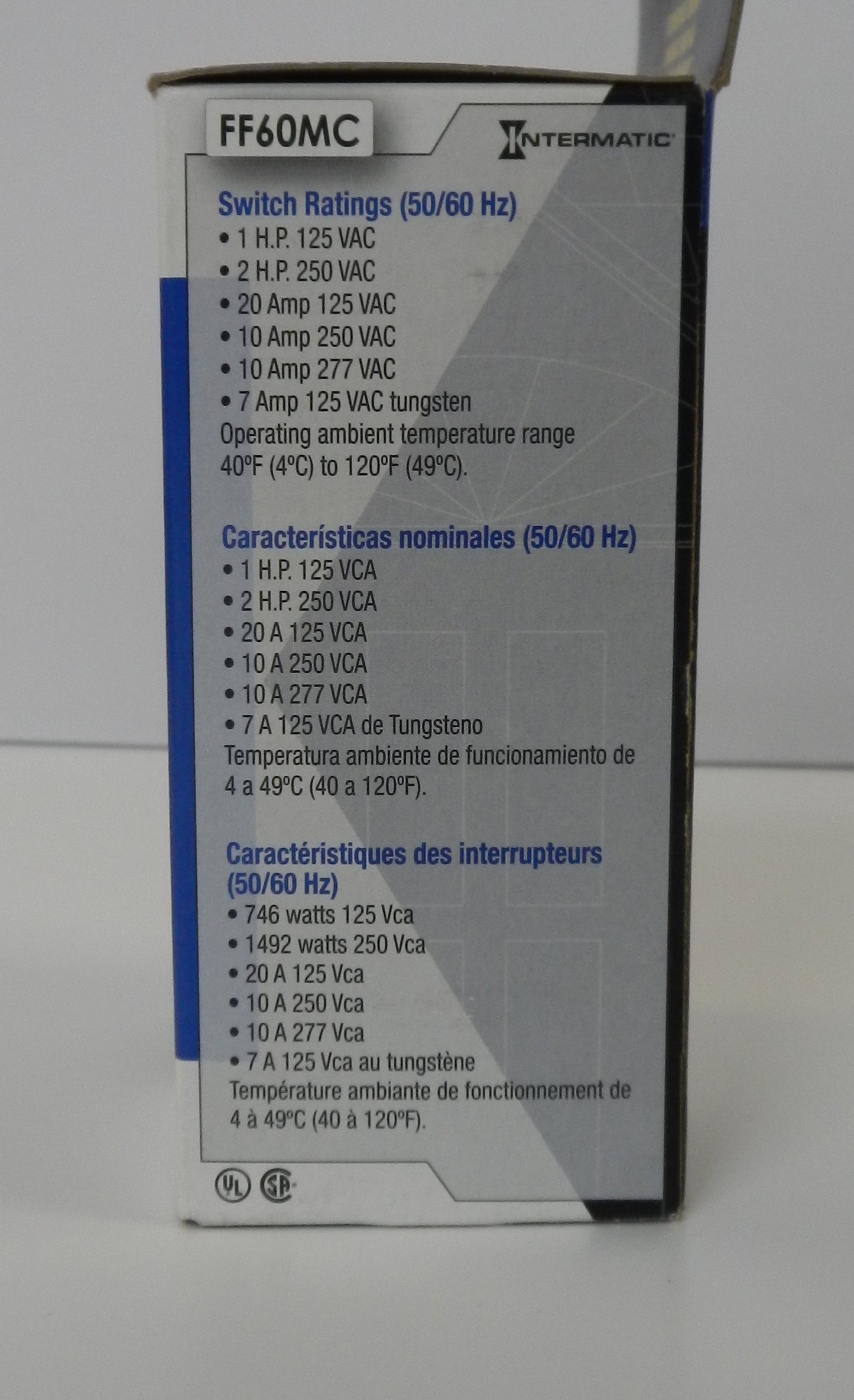

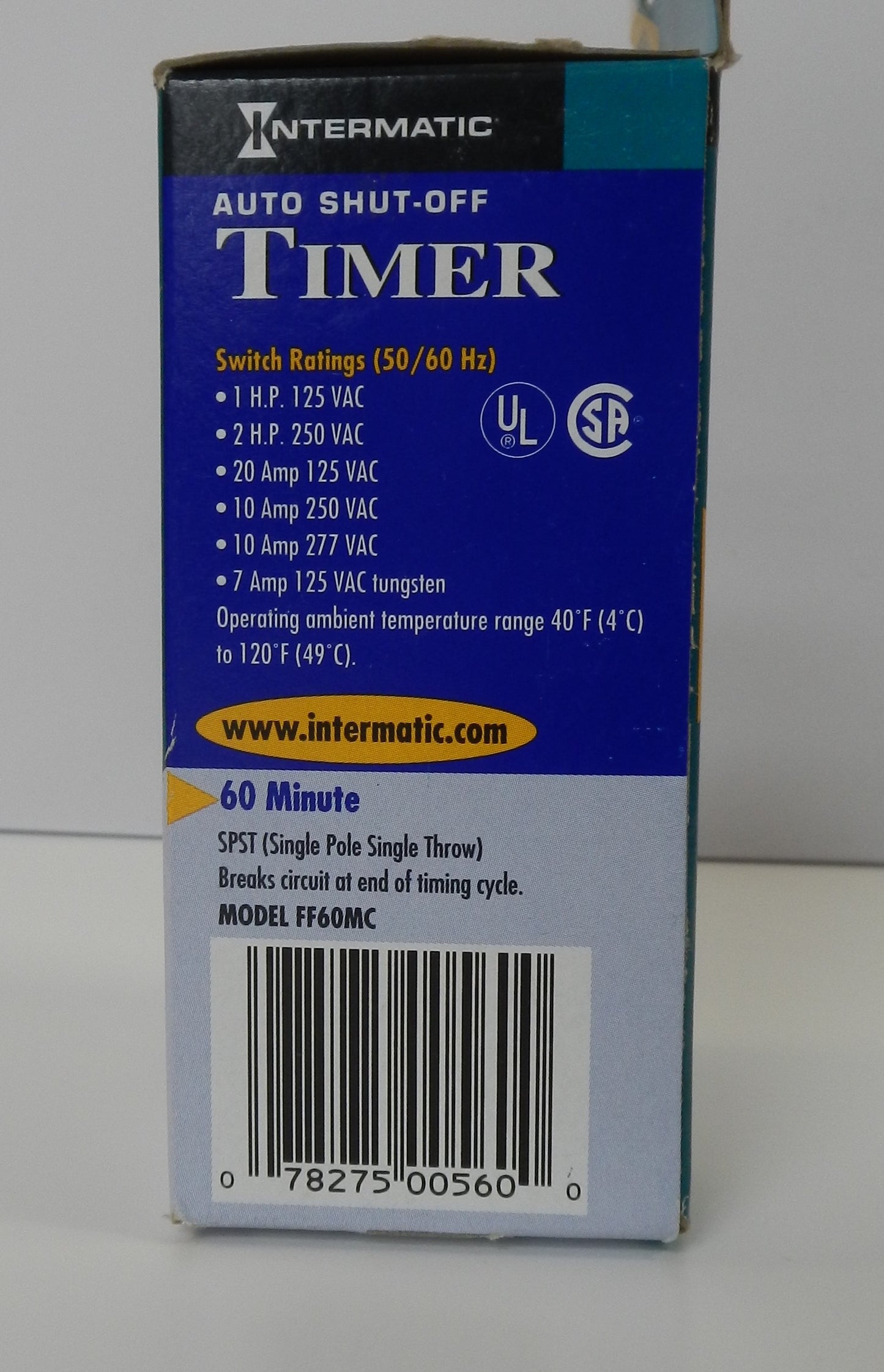

• Resistive Load Rating:
  • 20A, 2500W @ 125 VAC
  • 10A, 2500W @ 250 VAC
  • 10A, 2770W @ 277 VAC
• Motor Rating:
  • 1 HP @ 125 VAC
  • 2 HP @ 250 VAC
• Tungsten Rating:
  • 7A @ 125 VAC (875W)
• Compatible Loads:
  • LED
  • CFL
  • Fluorescent
  • Incandescent
  • Motors
  • Ventilation Fans
• Mounting: Standard Single-Gang Wall Box
• Finish: Brushed Silver
• Includes Wall Plate: Yes
• Certifications:
  • cCSAus
  • UL Recognized
• Country of Origin: Tunisia
• Warranty: 1-Year Limited

Dimensions:

• Height: 4.125 in (104.8 mm)
• Width: 1.75 in (44.5 mm)
• Depth: 1.25 in (31.8 mm)

Weight:

• Approximate Weight: 0.14 kg (0.30 lb)
