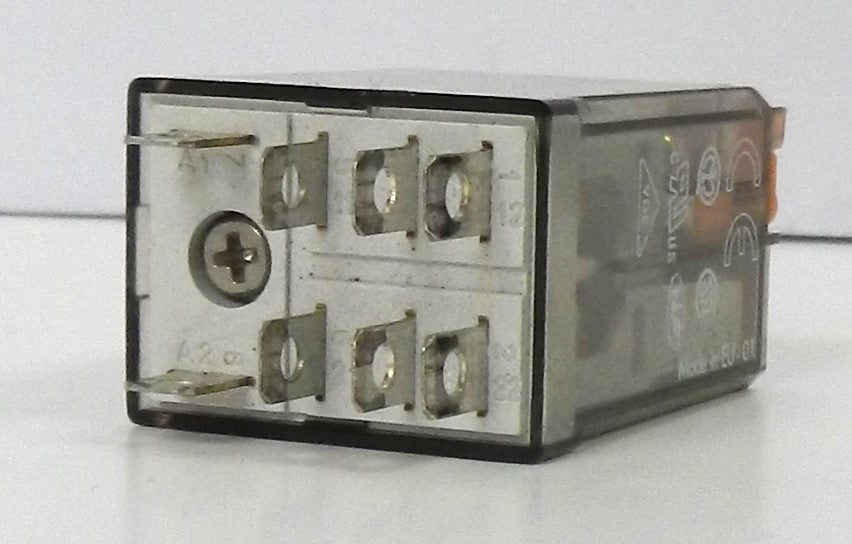

56.32.8.120.0040 Finder 56 Series DPDT Plug-In Power Relay 120VAC Coil 12A with Test Button

Description:

• Genuine Finder 56 Series industrial plug-in power relay for automation, control panels, and machine control applications
• Features DPDT (2 Form C) contact configuration with a 12A contact rating
• Operates with a 120 VAC coil for reliable switching of industrial loads
• Equipped with a mechanical status indicator and lockable test button for easy testing and diagnostics
• Plug-in/socket mount design allows fast installation and simple relay replacement
• Uses quick-connect (Faston) terminals for secure field wiring
• Silver Nickel (AgNi) contacts provide long electrical life and dependable switching performance
• Compatible with Finder 96 Series relay sockets
• Ideal for industrial automation, HVAC systems, control panels, OEM equipment, process control, and general-purpose switching applications

Specifications:

• Manufacturer Name: Finder
• Part Number (MPN): 56.32.8.120.0040
• Product Series: 56 Series
• Product Type: Industrial Plug-In Power Relay
• Contact Configuration: DPDT (2 Form C)
• Number of Poles: 2
• Contact Rating: 12 A
• Contact Voltage: 250 VAC Max
• Maximum Switching Capacity: 4800 VA
• Coil Voltage: 120 VAC
• Coil Type: Non-Latching AC
• Coil Current: 12 mA
• Coil Resistance: 4.7 kΩ
• Operate Time: 9 ms
• Release Time: 6 ms
• Mounting Type: Socket / Plug-In
• Terminal Type: Quick Connect (Faston 4.8 mm)
• Contact Material: Silver Nickel (AgNi)
• Features:
  • Mechanical Indicator
  • Lockable Test Button
  • RT I Dust-Protected Construction
• Operating Temperature: -40°C to +70°C
• Certifications:
  • CE
  • CSA
  • cURus
  • VDE
  • ENEC
• Applications:
  • Industrial Automation
  • Control Panels
  • HVAC Systems
  • Machine Control
  • OEM Equipment
  • Process Control
  • Power Switching

Dimensions:

• Height: 37.2 mm (1.46 in)
• Width: 20.7 mm (0.81 in)
• Depth: 27.7 mm (1.09 in)

Weight:

• Approximate Weight: 0.035 kg (0.08 lb).
