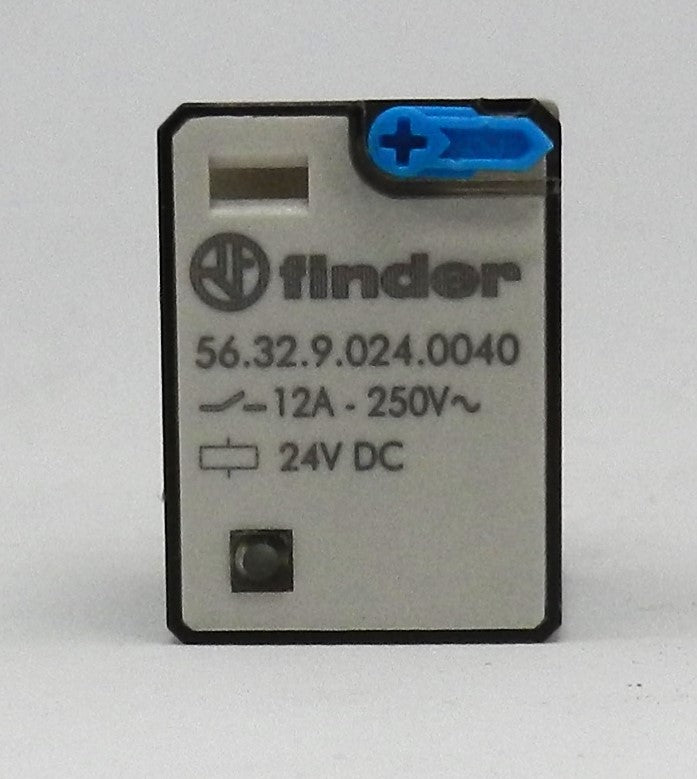

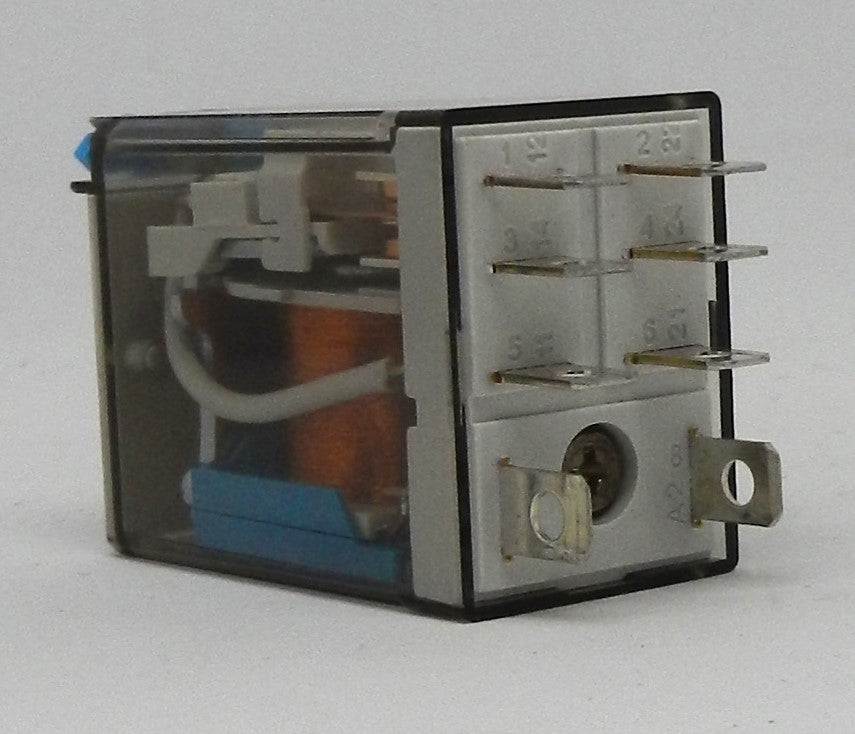

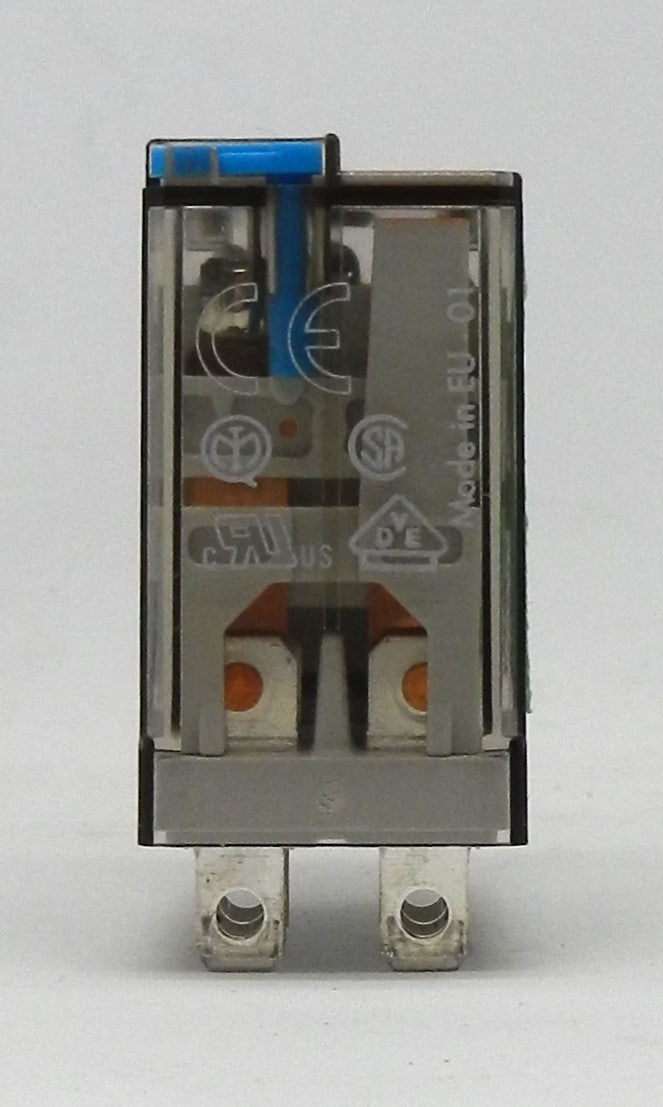

56.32.9.024.0040 Finder 56 Series DPDT General Purpose Relay 24VDC Coil 12A Plug-In with Test Button

Description:

• Genuine Finder 56 Series industrial general-purpose plug-in relay
• Features DPDT (2 Form C) contact configuration with 12A switching capacity
• Operates with a 24V DC coil for industrial control and automation applications
• Includes a mechanical status indicator and lockable test button for easy testing and troubleshooting
• Plug-in design for use with compatible Finder 96 Series relay sockets
• Silver nickel (AgNi) contacts provide excellent electrical performance and long service life
• Quick-connect terminals simplify installation and maintenance
• Suitable for industrial control panels, PLC systems, HVAC equipment, machine automation, motor control, OEM equipment, and process control
• Dust-protected enclosure designed for reliable operation in demanding industrial environments

Specifications:

• Manufacturer Name: Finder
• Part Number (MPN): 56.32.9.024.0040
• Product Series: 56 Series
• Product Type: General Purpose Power Relay
• Contact Configuration: DPDT (2 Form C)
• Coil Voltage: 24 VDC
• Coil Type: Non-Latching
• Coil Current: 40 mA
• Coil Resistance: 600 Ω
• Contact Rating:
  • 12A @ 250 VAC (Resistive)
  • 12A @ 30 VDC (Resistive)
• Maximum Switching Voltage:
  • 400 VAC
  • 220 VDC
• Maximum Switching Power:
  • 4800 VA
• Contact Material: Silver Nickel (AgNi)
• Mounting Type: Plug-In / Socket Mount
• Compatible Socket: Finder 96 Series
• Termination Style: Quick Connect (4.7 mm)
• Features:
  • Mechanical Indicator
  • Lockable Test Button
  • EMC Coil Suppression
• Operating Temperature: -40°C to +70°C
• Certifications:
  • CE
  • CSA
  • cURus
  • ENEC
  • UKCA
  • VDE
  • EAC
  • RINA

Dimensions:

• Height: 37.7 mm (1.48 in)
• Width: 27.7 mm (1.09 in)
• Depth: 20.7 mm (0.81 in)

Weight:

• Approximate Weight: 0.02 kg (0.05 lb).
