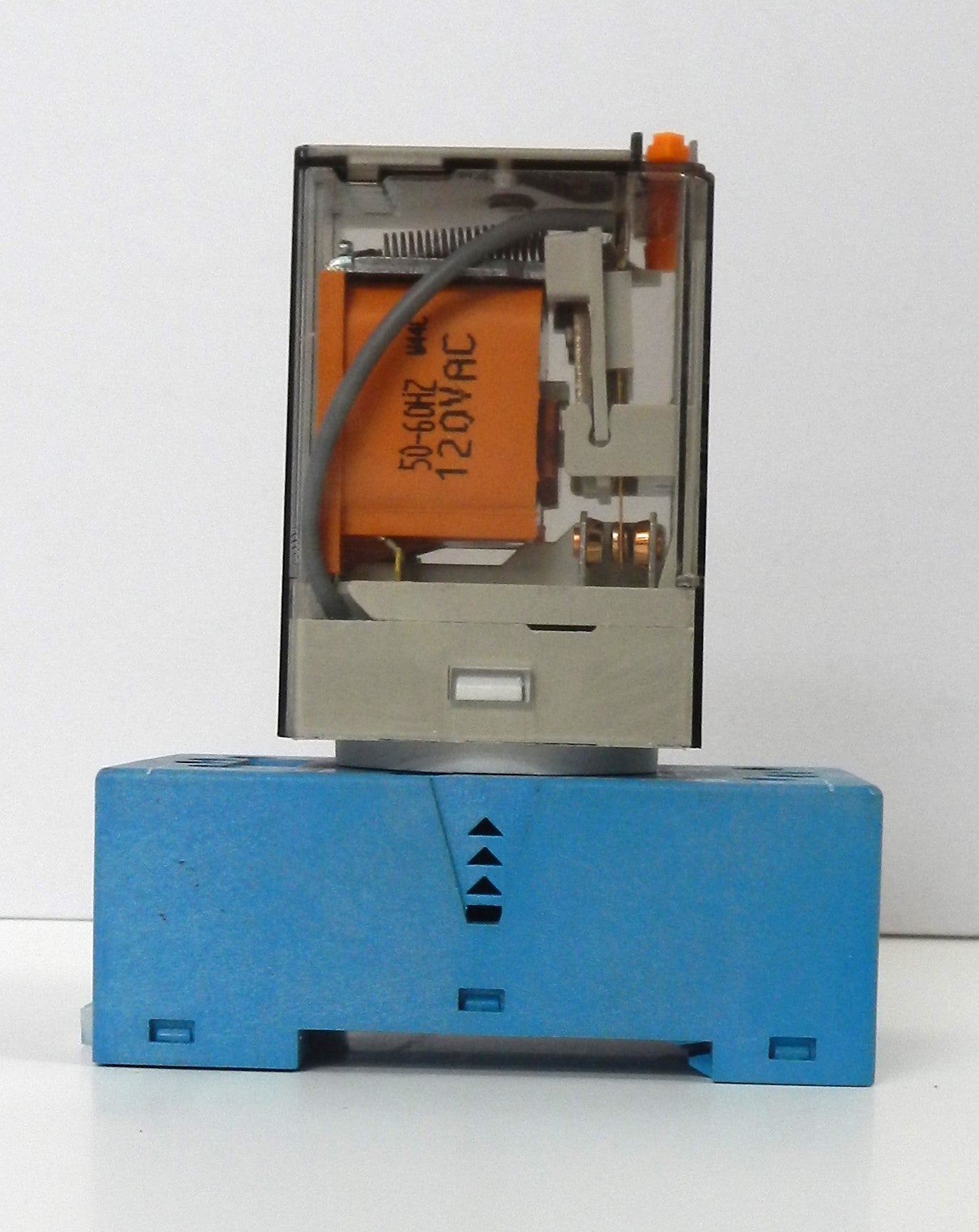

60.12.8.120.0040 Finder 60 Series General Purpose Relay DPDT 10A 120VAC Plug-In 8-Pin

Description:

• Genuine Finder 60 Series general-purpose industrial relay for automation and control applications
• Features DPDT (2 Form C) contact configuration with 10A switching capacity
• Equipped with a 120 VAC non-latching coil for reliable operation
• 8-pin octal plug-in design enables quick installation and easy replacement
• Includes a mechanical status indicator and lockable test button for convenient testing and diagnostics
• Silver Nickel (AgNi) contacts provide excellent durability and long electrical life
• Suitable for switching control circuits, motors, lighting, HVAC systems, alarms, and industrial equipment
• Compatible with Finder 8-pin relay sockets for DIN rail or panel mounting
• Ideal for industrial automation, machine control, process control, OEM equipment, and electrical control panels

Specifications:

• Manufacturer Name: Finder
• Part Number (MPN): 60.12.8.120.0040
• Product Series: 60 Series
• Product Type: General Purpose Relay
• Contact Configuration: DPDT (2 Form C)
• Contact Rating: 10 A
• Coil Voltage: 120 VAC
• Coil Type: AC, Non-Latching
• Coil Resistance: 1.94 kΩ
• Coil Current: 18.6 mA
• Maximum Switching Voltage: 400 VAC
• Rated Contact Voltage: 250 VAC
• Contact Material: Silver Nickel (AgNi)
• Mounting Type: Socketable
• Terminal Style: 8-Pin Octal Plug-In
• Operate Time: 11 ms
• Release Time: 4 ms
• Must Operate Voltage: 96 VAC
• Must Release Voltage: 24 VAC
• Operating Temperature: -40°C to +70°C
• Features:
  • Mechanical Indicator
  • Lockable Test Button
• Certifications:
  • CE
  • CSA
  • cURus
  • VDE
  • UKCA
  • CCC
  • EAC
  • RINA

Dimensions:

• Length: 54.2 mm (2.13 in)
• Width: 32.5 mm (1.28 in)
• Height: 36.4 mm (1.43 in)

Weight:

• Approximate Weight: 0.085 kg (0.19 lb).
