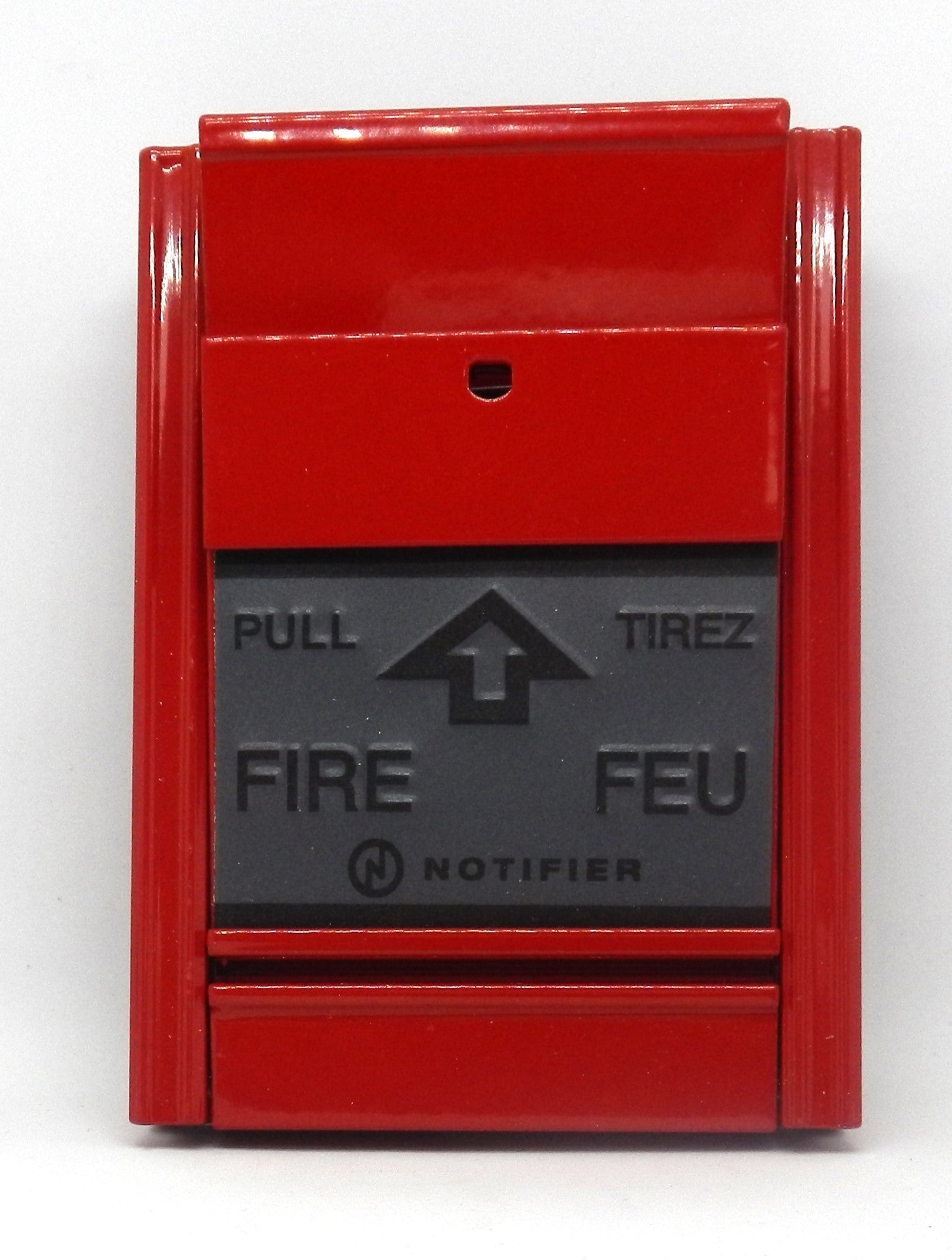

MPS-950B Notifier Non-Coded Single-Stage Manual Fire Alarm Pull Station ULC Listed

Description:

• Genuine Notifier manual fire alarm pull station for conventional fire alarm systems
• Single-stage, non-coded manual pull station with normally open contacts
• Designed for reliable manual fire alarm initiation in commercial, institutional, and industrial buildings
• Durable extruded aluminum construction with red baked enamel finish for long service life
• Low-profile design fits standard single-gang electrical boxes
• Bilingual (English/French) operating instructions for Canadian installations
• Resettable using a 1/8-inch screwdriver after activation
• Can be converted to a double-action pull station with the optional MPS-DALK conversion kit
• Compatible with the optional NBS-950 surface-mount back box
• Ideal for schools, hospitals, office buildings, warehouses, industrial facilities, and commercial fire alarm systems.

Specifications:

• Manufacturer Name: Notifier (Honeywell)
• Part Number (MPN): MPS-950B
• Product Type: Manual Fire Alarm Pull Station
• Operation: Single-Stage
• Contact Type: Normally Open (N.O.)
• Coding: Non-Coded
• Contact Rating:
  • 1 A @ 30 VDC
  • 0.1 A @ 125 VAC
• Construction: Extruded Aluminum
• Finish: Red Baked Enamel

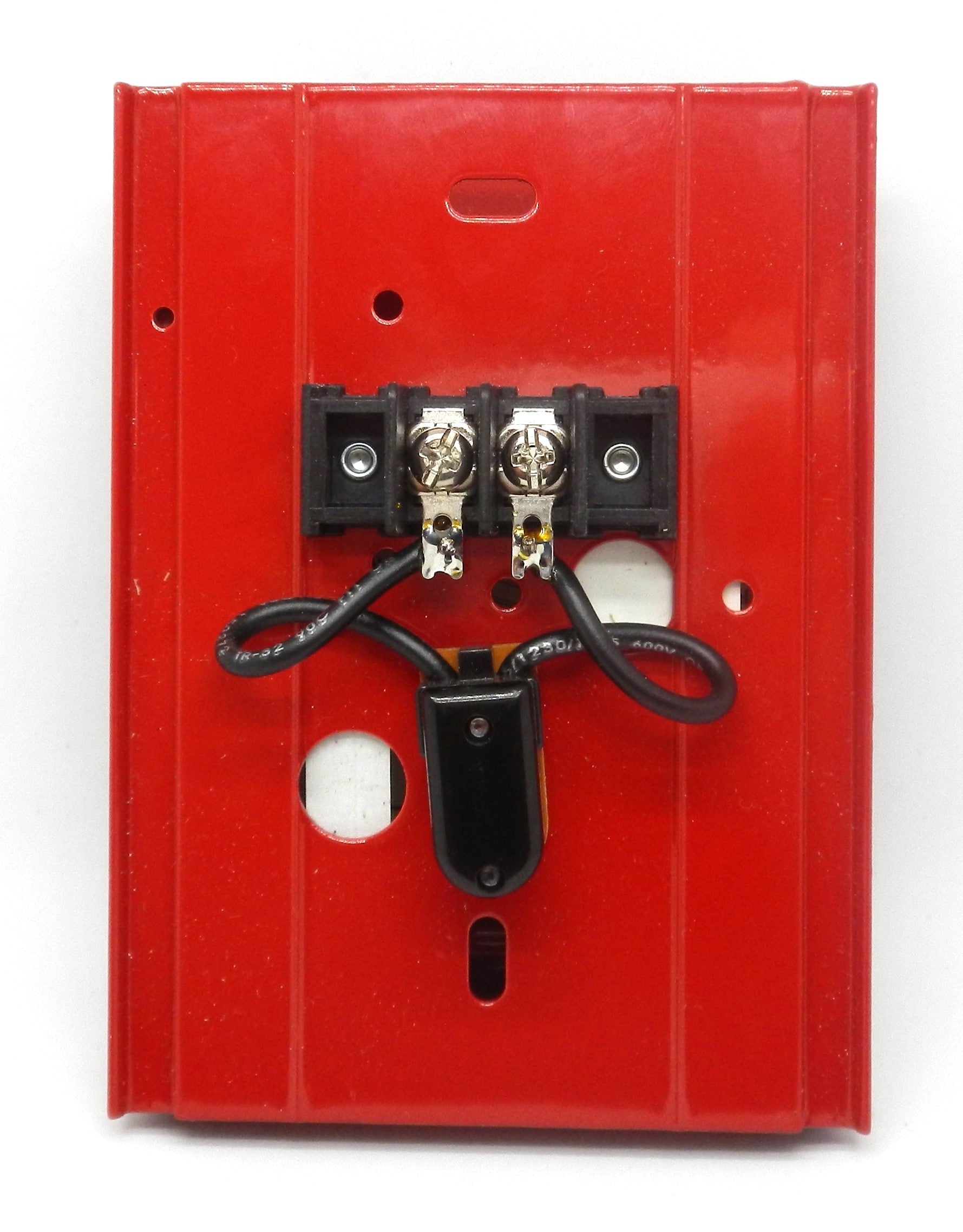

• Mounting: Standard Single-Gang Electrical Box
• Reset Method: Front Reset Using 1/8" Screwdriver
• Optional Accessories:
  • MPS-DALK Double-Action Lever Kit
  • NBS-950 Surface Mount Box
  • GL-004K Break Glass Rod Kit
• Certifications:
  • ULC Listed
• Applications:
  • Fire Alarm Systems
  • Commercial Buildings
  • Industrial Facilities
  • Schools
  • Hospitals
  • Office Buildings
  • Warehouses

Dimensions:

• Height: 114.3 mm (4.5 in)
• Width: 88.9 mm (3.5 in)
• Depth: 19.1 mm (0.75 in)

Weight:

• Approximate Weight: 0.16 kg (0.35 lb).
