PXF9 Fuji Electric 96×96mm Digital PID Temperature Controller Universal Input LCD Display

Description:

• Genuine Fuji Electric digital PID temperature controller for precise industrial temperature and process control
• Large 96 × 96 mm panel-mounted controller with a bright, high-contrast LCD display for easy monitoring
• Features universal input supporting thermocouples, RTDs, voltage, current, and millivolt signals, making it suitable for a wide variety of sensors.
• High-speed 50 ms sampling and ±0.2% reading accuracy provide fast, stable, and precise process control.
• Supports multiple control modes including PID, PID2, ON/OFF, Fuzzy Logic, 2-Degree-of-Freedom PID, Auto-Tuning, and Self-Tuning.
• Available with configurable relay, SSR drive, current, voltage, or motorized valve control outputs depending on model configuration.
• Optional RS-485 Modbus RTU communication for PLC, HMI, and SCADA integration.
• Ideal for ovens, furnaces, plastics processing, packaging equipment, food processing, HVAC, chemical processing, laboratories, and industrial automation systems.

Specifications:

• Manufacturer Name: Fuji Electric

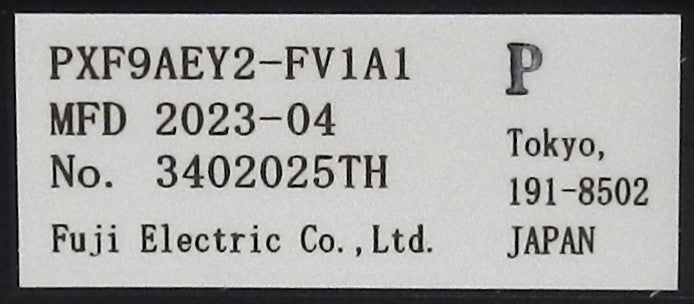

• Part Number (MPN): PXF9
• Product Series: PXF Series
• Product Type: Digital PID Temperature Controller
• Panel Size: 96 × 96 mm
• Mounting Type: Panel Mount
• Display: Large LCD, 4-Digit Process Value Display
• Input Type:
  • Thermocouple
  • RTD
  • Voltage
  • Current
  • mV
• Input Accuracy:
  • ±0.2% (RTD)
  • High-accuracy universal measurement
• Sampling Rate: 50 ms
• Control Modes:
  • PID
  • PID2
  • ON/OFF
  • Fuzzy Logic
  • 2-Degree-of-Freedom PID
  • Auto-Tuning
  • Self-Tuning
• Control Outputs (Model Dependent):
  • Relay
  • SSR Drive
  • Linear Current
  • Linear Voltage
  • Motorized Valve
• Communication: Optional RS-485 Modbus RTU
• Ramp/Soak Program: Up to 64 Steps
• Stored Setpoints: 8
• Power Supply Options:
  • 100–240 VAC
  • 24 VAC/DC
• Front Protection Rating: IP66 (with sealing gasket)
• Operating Temperature: -10°C to +50°C
• Applications:
  • Industrial Temperature Control
  • Ovens
  • Furnaces
  • Plastics Processing
  • Packaging Equipment
  • Food Processing
  • HVAC Systems
  • Process Automation

Dimensions:

• Panel Cutout: 92 × 92 mm
• Front Panel Size: 96 × 96 mm
• Depth: 65.7 mm.

Weight:

• Approximate Weight: 0.35 kg (0.77 lb).
