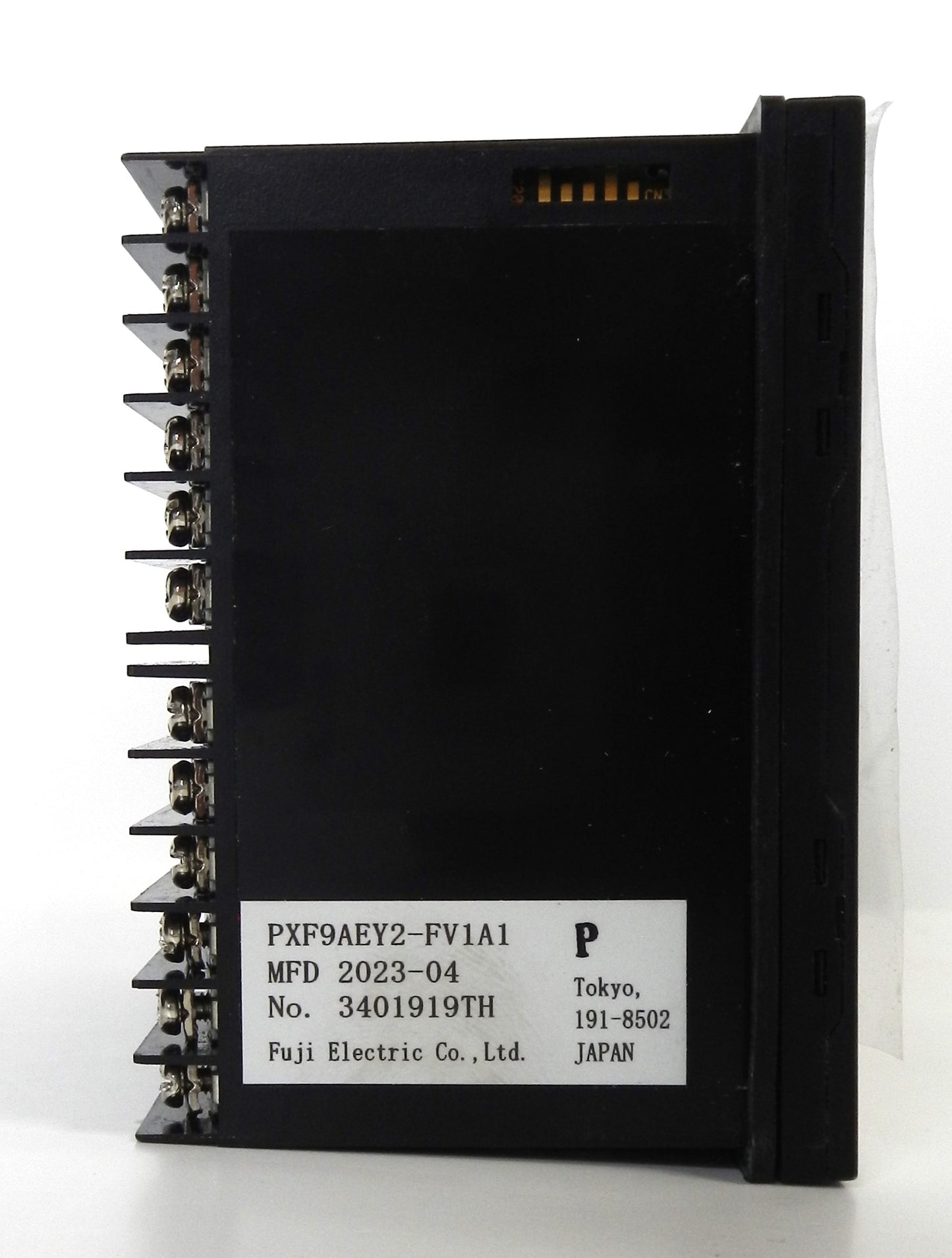

PXF9AEY2-FV1A1 Fuji Electric PXF9 Digital PID Temperature & Process Controller 1/4 DIN 100-240VAC

Description:

• Genuine Fuji Electric PXF9 digital PID temperature and process controller for precision industrial control applications
• 1/4 DIN (96 × 96 mm) panel-mounted controller with a bright dual-line LCD display
• Universal input supports thermocouples, RTDs (Pt100), DC voltage, and DC current for maximum application flexibility
• Powered by 100–240 VAC, 50/60 Hz
• Features PID auto-tuning for fast, stable, and accurate temperature regulation
• Equipped with SSR drive control output and 2 configurable alarm outputs
• Fast 50 ms sampling rate provides precise control and rapid response to process changes
• USB connectivity available with an optional programming cable for PC configuration and parameter backup
• Ideal for ovens, furnaces, packaging equipment, food processing, plastics, HVAC, laboratory equipment, and industrial process automation
• Successor to the Fuji PXR9 series with enhanced performance and simplified configuration.

Specifications:

• Manufacturer Name: Fuji Electric
• Part Number (MPN): PXF9AEY2-FV1A1
• Product Series: PXF9
• Product Type: Digital PID Temperature & Process Controller
• Display Size: 1/4 DIN (96 × 96 mm)
• Supply Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Control Method: PID with Auto-Tuning
• Sampling Speed: 50 ms
• Input Type:
  • Universal Thermocouple
  • RTD (Pt100)
  • DC Voltage
  • DC Current
• Control Output: SSR Drive Output
• Alarm Outputs: 2
• Display: Dual-Line LCD
• Mounting Type: Panel Mount
• Front Panel Protection: IP66
• Configuration: Front Keypad or Optional PC Programming Cable
• Applications:
  • Temperature Control
  • Process Control
  • Industrial Automation
  • Ovens & Furnaces
  • Packaging Equipment
  • Plastics Processing
  • Food Processing
  • HVAC Systems
  • Laboratory Equipment

Dimensions:

• Panel Size: 96 × 96 mm (1/4 DIN)
• Panel Cutout: 92 × 92 mm
• Mounting Depth: Approx. 100 mm

Weight:

• Approximate Weight: 0.23 kg (0.50 lb).
