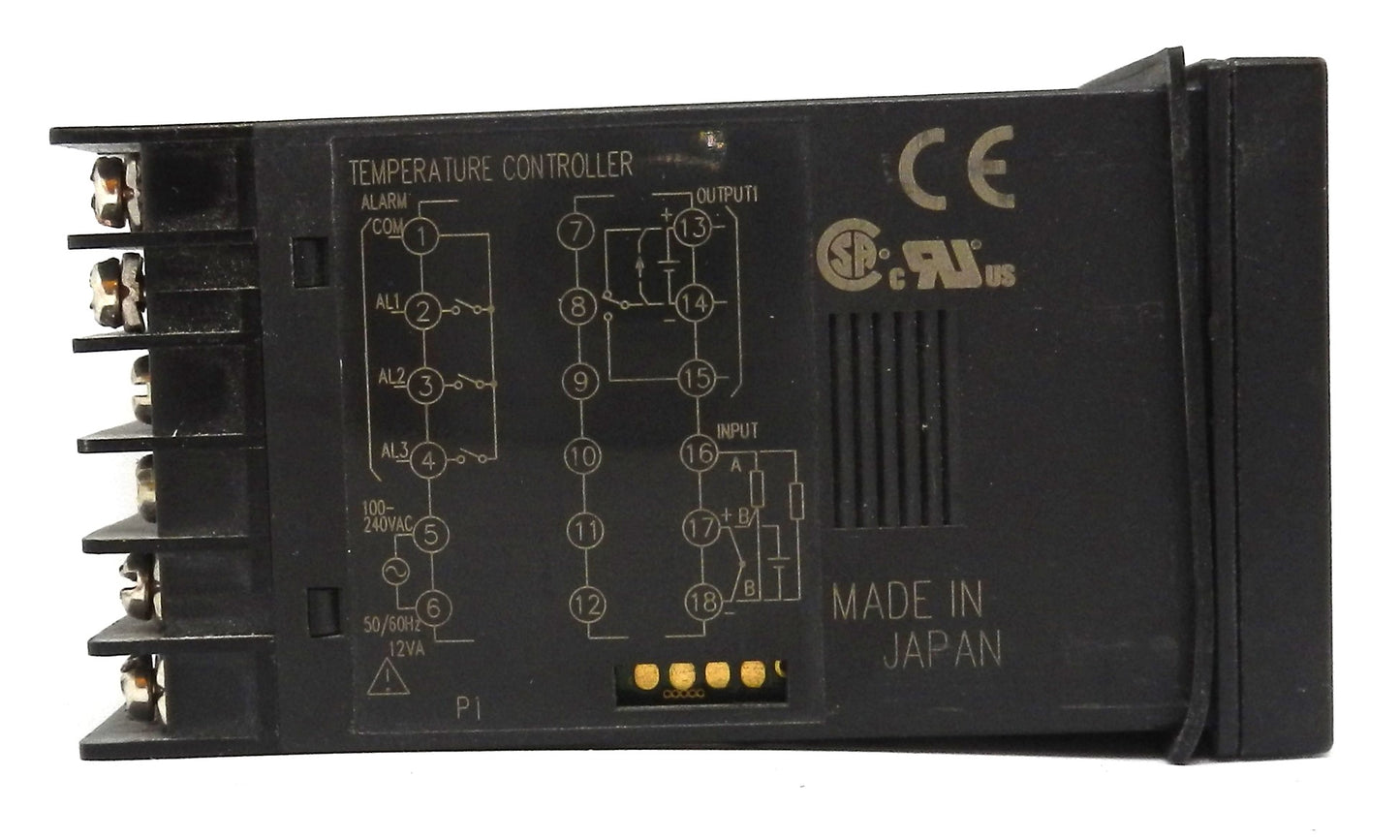

PXR4-REY1-4V0A1 Fuji Electric 48×48mm PID Temperature Controller 100-240VAC 4-20mA Output

Description:

• Genuine Fuji Electric PXR4 Series digital PID temperature and process controller
• Compact 48 × 48 mm (1/16 DIN) panel-mounted controller for precise temperature and process regulation
• Advanced PID control with Auto-Tuning and Fuzzy Control for fast response and stable process control
• Supports multiple input types including thermocouple, RTD, voltage, and current inputs
• Features 4–20 mA analog control output for proportional process control
• Operates from a universal 100–240 VAC, 50/60 Hz power supply
• Dual LED display provides simultaneous Process Value (PV) and Set Value (SV) indication
• Front panel rated IP66 / NEMA 4X when properly installed for reliable operation in harsh industrial environments
• Suitable for ovens, furnaces, packaging equipment, plastics processing, food processing, HVAC systems, and industrial automation
• Discontinued by the manufacturer; commonly used for maintenance and replacement of existing Fuji Electric control systems.

Specifications:

• Manufacturer Name: Fuji Electric
• Part Number (MPN): PXR4-REY1-4V0A1
• Product Series: PXR4
• Product Type: PID Temperature / Process Controller
• Controller Size: 48 × 48 mm (1/16 DIN)
• Display: Dual 4-Digit LED (PV & SV)
• Control Method:
  • PID Control
  • Fuzzy Control
  • Auto-Tuning
• Input Types:
  • Thermocouple
  • RTD
  • Voltage
  • Current
• Control Output: 4–20 mA DC
• Input Power:
  • 100–240 VAC
  • 50/60 Hz
• Sampling Rate: 0.5 Seconds
• Indication Accuracy:
  • ±0.5% of Measuring Range (typical)
• Front Protection: IP66 / NEMA 4X
• Rear Protection: IP20
• Mounting Type: Panel Mount
• Terminal Connection: 11-pin Socket
• Applications:
  • Industrial Temperature Control
  • Process Automation
  • Ovens & Furnaces
  • Packaging Equipment
  • Plastics Machinery
  • HVAC Systems
  • Food Processing
  • OEM Equipment

Dimensions:

• Panel Cutout: 45 × 45 mm
• Front Bezel: 48 × 48 mm
• Approximate Depth: 100 mm

Weight:

• Approximate Weight: 0.20 kg (0.44 lb).
