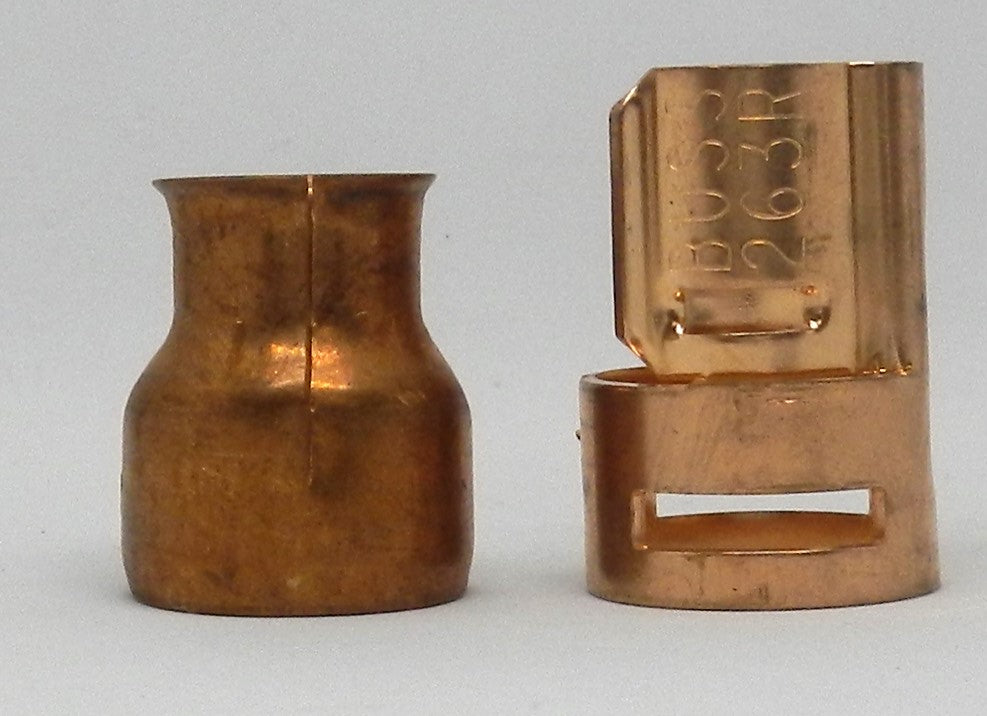

NO.263 Eaton Bussmann Fuse Reducer 30A Fuse to 60A Fuse Block 250V Class H/K

Description:

• Genuine Eaton Bussmann fuse reducer for industrial and commercial electrical applications
• Catalog number NO.263
• Allows a smaller up to 30A fuse to be installed in a 60A fuse block or disconnect switch
• Rated for 250 VAC applications
• Designed for Class H and Class K fuse applications
• Useful when converting equipment to a lower fuse rating without replacing the existing fuse block
• Maintains proper fuse positioning and electrical contact within the larger 60A fuse clips
• Non-rejection style fuse reducer
• Suitable for electrical panels, disconnect switches, industrial machinery, and equipment maintenance
• Eaton lists the NO.263 as an active Class H(K) fuse reducer.

Specifications:

• Manufacturer Name: Eaton Bussmann
• Part Number (MPN): NO.263
• UPC: 051712101905
• Product Type: Fuse Reducer
• Fuse Class: Class H / Class K
• Fuse Size: Up to 30A
• Fuse Block / Clip Size: 60A
• Voltage Rating: 250 VAC
• Amperage Rating: 60A
• Indication: Non-Indicating
• Style: Non-Rejection
• Function: Allows smaller fuse installation in larger fuse holder
• Compliance: RoHS Compliant
• Applications:
  • Fuse Blocks
  • Disconnect Switches
  • Industrial Control Panels
  • Electrical Distribution
  • Machinery Maintenance
  • Equipment Conversion

Dimensions:

• Length: 2.1 in (53.3 mm)
• Width: 1.2 in (30.5 mm)
• Height: 0.9 in (22.9 mm)

Weight:

• Approximate Weight: 0.044 lb (0.02 kg)
