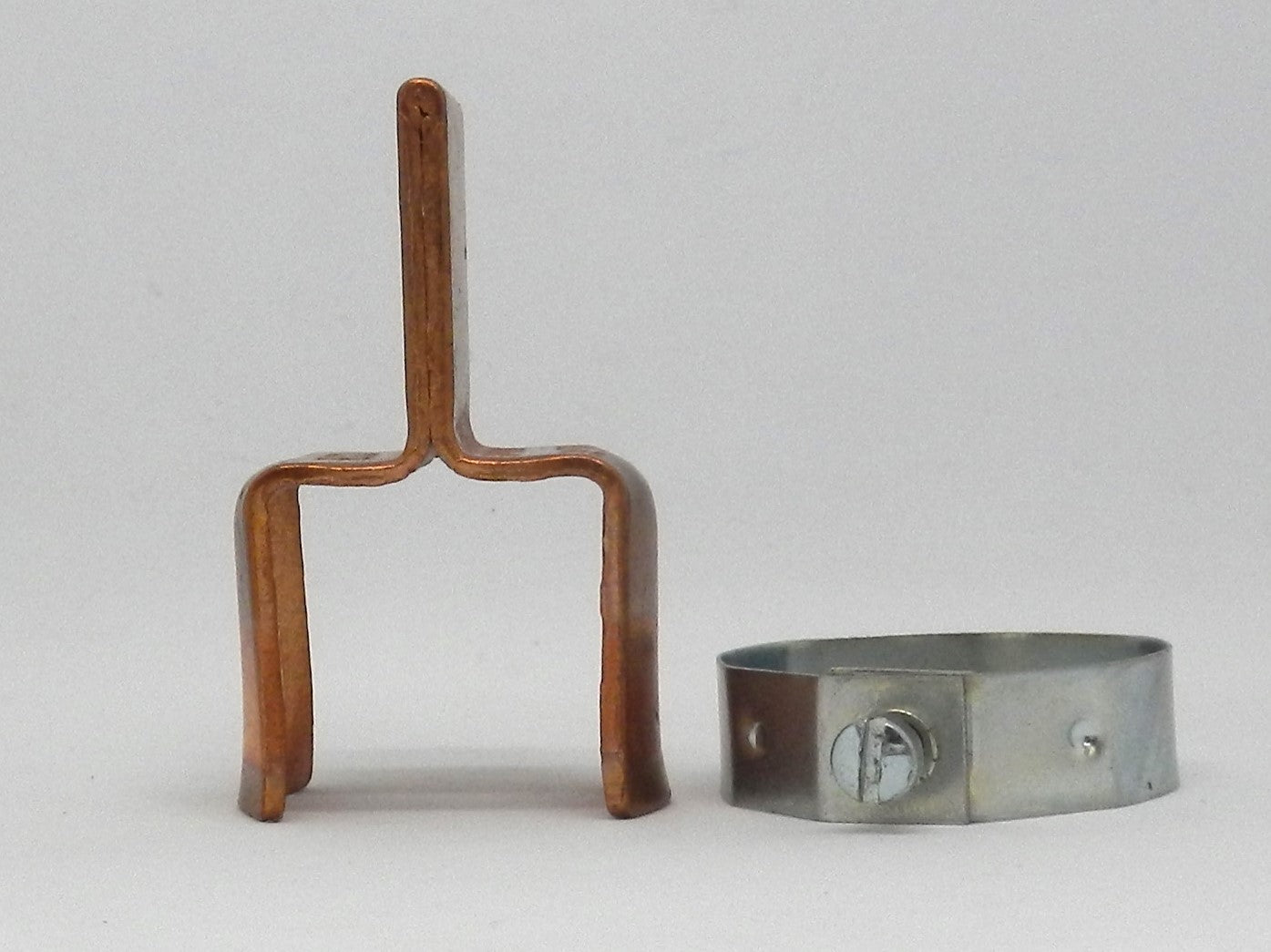

NO.616 Eaton Bussmann Fuse Reducer 100A to 35-60A 600V Class H/K

Description:

• Genuine Eaton Bussmann fuse reducer for industrial fuse blocks and disconnect switches
• Catalog number NO.616
• Allows 35–60A Class H or Class K fuses to be installed in a 100A fuse block or disconnect
• Rated for systems up to 600 VAC
• Designed for non-rejection fuse applications
• Provides a practical solution when a smaller ampere fuse must be installed in a larger fuse clip
• Helps prevent installation of an oversized fuse while retaining the existing fuse holder
• Suitable for industrial control panels, fused disconnects, machinery, distribution equipment, and electrical maintenance
• UL Listed and CSA Certified
• RoHS compliant

Specifications:

• Manufacturer: Eaton
• Brand: Bussmann
• Part Number: NO.616
• Product Type: Fuse Reducer
• Fuse Class: Class H / Class K
• Fuse Block Size: 100A
• Compatible Fuse Size: 35–60A
• Voltage Rating: 600V
• Type: Non-Indicating
• Fuse Block Style: Non-Rejection
• UPC: 051712331111
• Certifications:
  • UL Listed
  • CSA Certified
• Compliance: RoHS
• Country of Origin: Mexico

Dimensions:

• Length: 2 in
• Width: 1.5 in
• Height: 2.5 in

Weight:

• Approximate Weight: 0.18 lb (0.08 kg)
