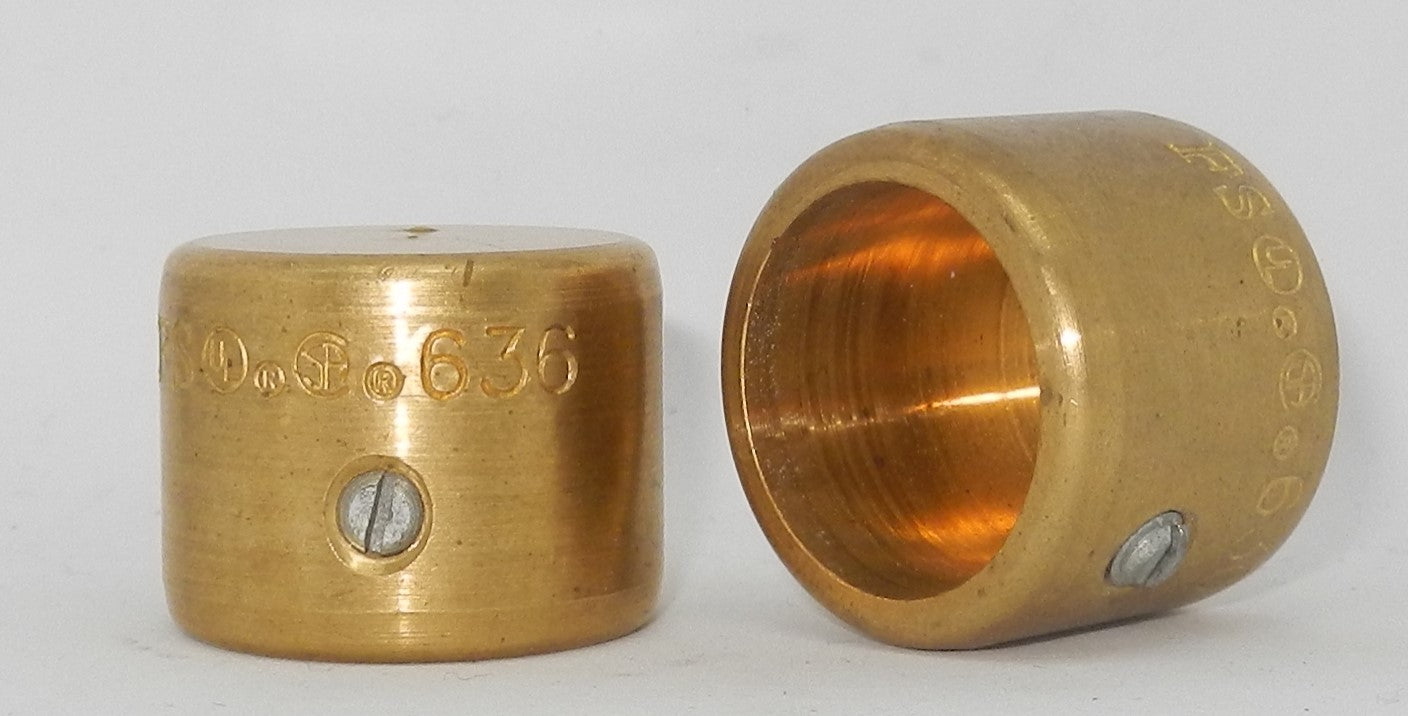

636 Mersen Ferraz Shawmut 30A to 60A Fuse Reducer 600V Class H/K Non-Rejection

Description:

• Genuine Mersen / Ferraz Shawmut fuse reducer for industrial fuse protection applications
• Catalog number 636
• Allows a 30A fuse to be installed in an existing 60A fuse clip/holder
• Rated for systems up to 600 VAC
• Designed for Class H and Class K fuse applications
• Non-rejection style reducer
• Useful when a lower-rated fuse is required without replacing the existing larger fuse holder
• Suitable for industrial disconnects, control panels, machinery, electrical distribution equipment, and maintenance applications
• Fuse reducers are typically supplied in pairs unless otherwise noted
• UL Listed and CSA Certified.

Specifications:

• Manufacturer Name: Mersen / Ferraz Shawmut
• Part Number (MPN): 636
• Product Type: Fuse Reducer
• Reducer Type: Non-Rejection
• Fuse Current Rating: 30 A
• Fuse Clip Rating: 60 A
• Voltage Rating: 600 VAC
• Fuse Class: Class H / Class K
• Function: Allows 30A Fuse to Fit 60A Fuse Clips
• Product Diameter: 1.06 in (27 mm)
• Product Length: 1.31 in (33.3 mm)
• UPC: 782001752330
• GTIN: 00782001752330
• UL Listed: Yes
• CSA Certified: Yes
• Harmonized System Code: 853890

Dimensions:

• Diameter: 1.06 in (27 mm)
• Length: 1.31 in (33.3 mm)

Weight:

• Approximate Weight: 0.0726 kg (0.16 lb)
