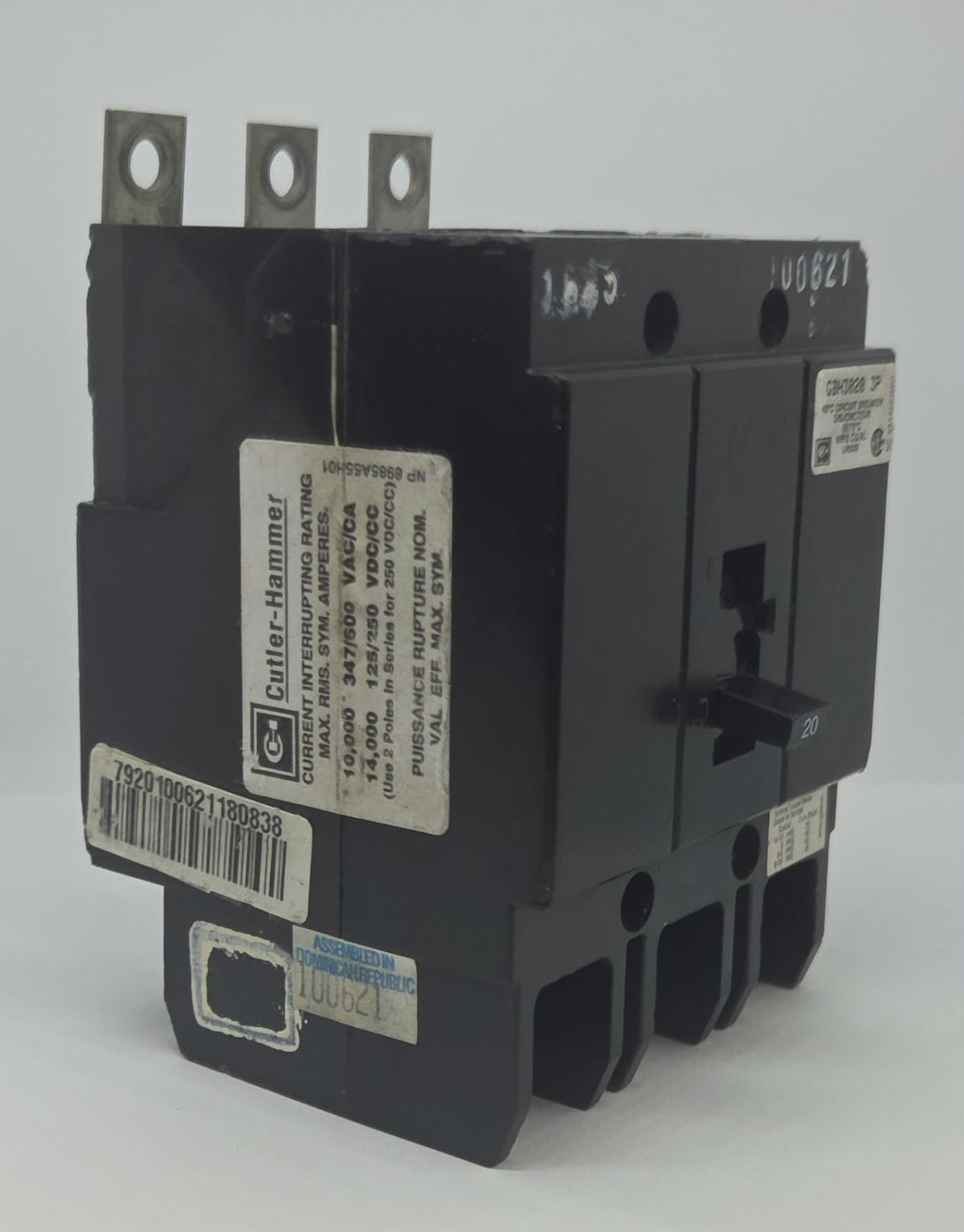

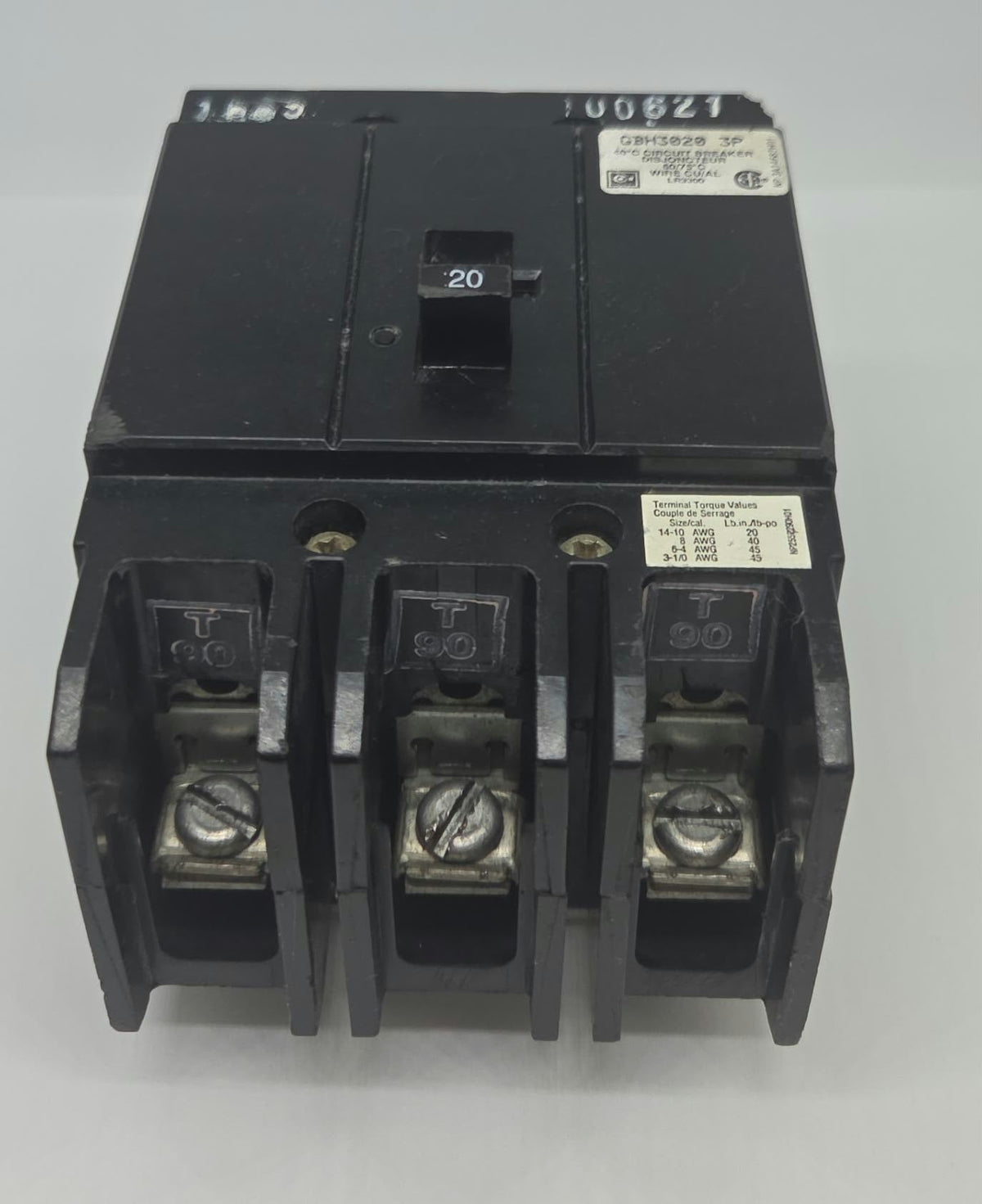

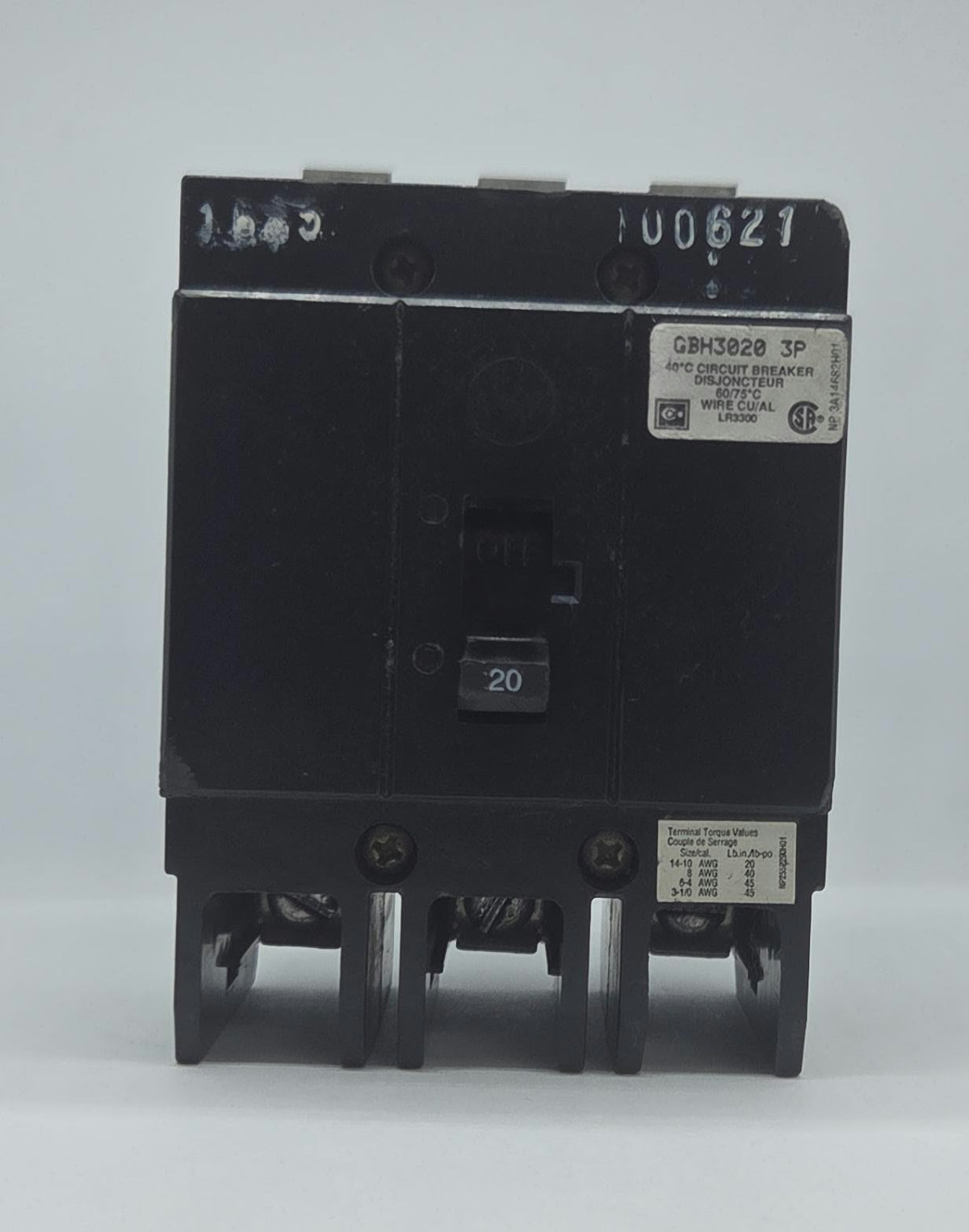

GBH3020 Cutler-Hammer 3-Pole 20A 480VAC Circuit Breaker

Description

• Cutler-Hammer molded case circuit breaker
• GBH Series industrial circuit breaker
• 3-pole configuration
• 20 ampere current rating
• Designed for industrial electrical distribution and circuit protection
• Suitable for compatible Cutler-Hammer electrical equipment and panel applications
• Accepts copper or aluminum conductors
• Used condition with cosmetic wear and markings visible in photos

Specifications

• Manufacturer: Cutler-Hammer
• Part Number: GBH3020
• Series: GBH
• Product Type: Molded Case Circuit Breaker
• Number of Poles: 3
• Current Rating: 20 A
• Voltage Rating: 480 VAC
• Frequency: 60/75 Hz
• Wire Compatibility: Copper / Aluminum
• Interrupting Rating: 10,000 RMS Symmetrical Amps at 347/600 VAC
• Interrupting Rating: 10,000 RMS Symmetrical Amps at 125/250 VDC
• Certification Marking: CSA
• Condition: Used

Dimensions

• Refer to manufacturer specifications for exact dimensions

Weight

• Refer to manufacturer specifications for exact weight
