RR7 General Electric Remote Control Lighting Relay Switch 20A SPST 24VAC Latching 3-Wire

$119.99 CAD

Sale Sold out

STYLE REFURBISH

Description:

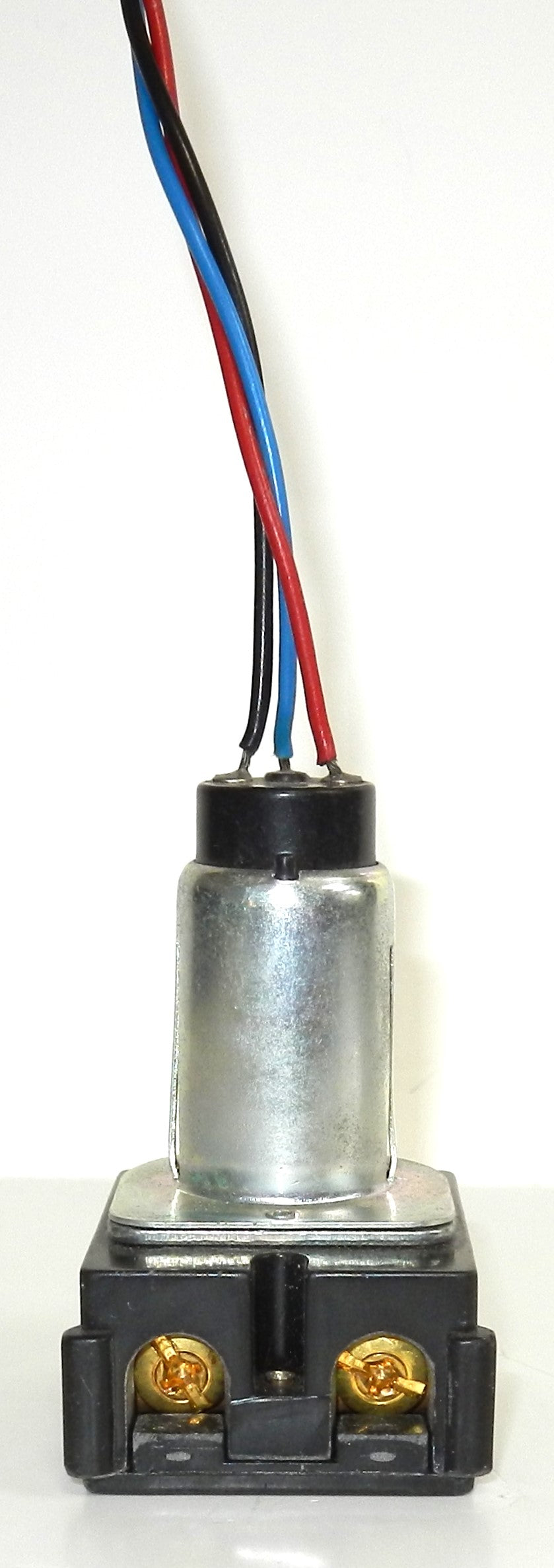

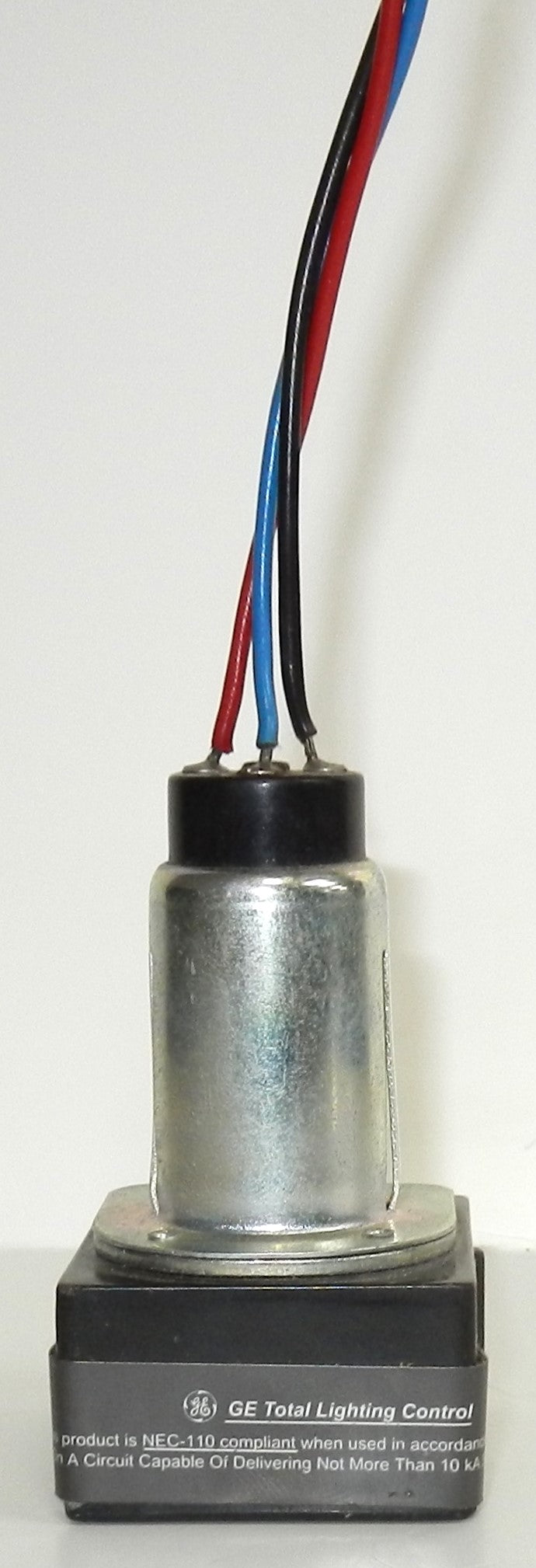

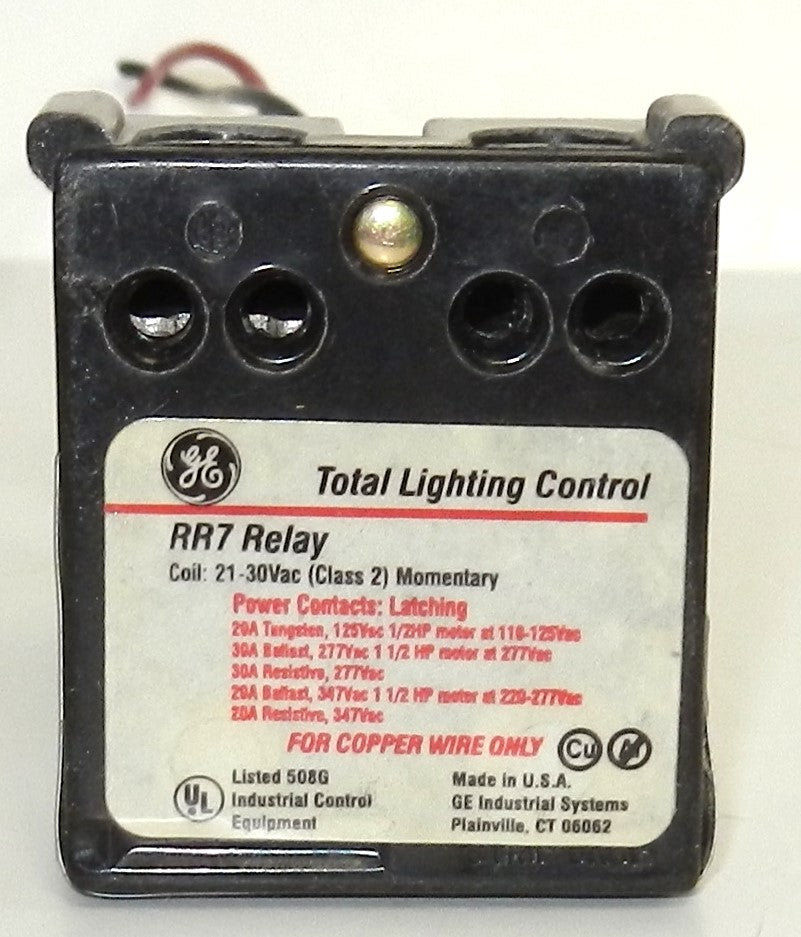

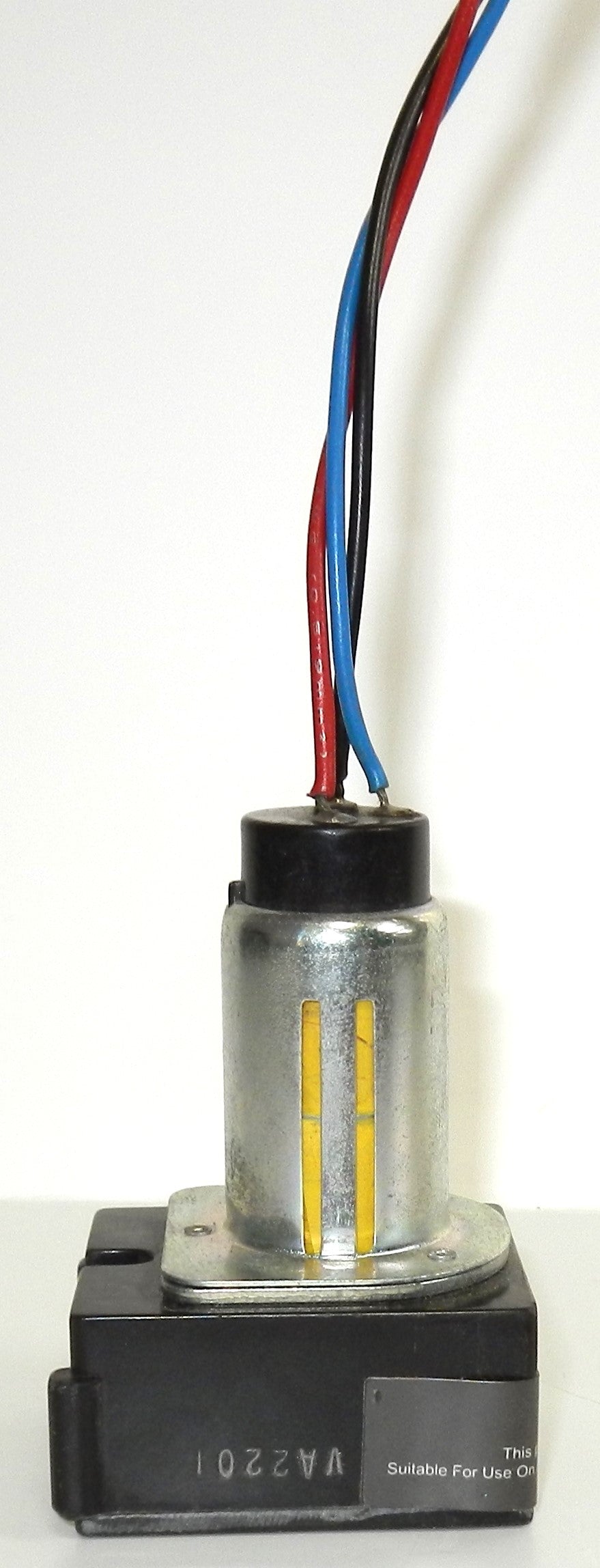

Genuine General Electric (GE) RR7 remote control lighting relay switch for low-voltage lighting control systems
Mechanical latching SPST relay requiring only a momentary 24 VAC Class 2 control pulse to switch ON or OFF
Rated for 120–277 VAC lighting circuits with 20A tungsten, ballast, and general-purpose loads
3-wire low-voltage control leads for compatibility with GE remote lighting control systems
Provides reliable switching without continuous coil power, reducing energy consumption
Designed for use in commercial buildings, schools, hospitals, offices, and institutional lighting control systems
Compatible with legacy GE RR Series relay panels and remote momentary switches
Direct replacement for existing GE RR7 lighting relays; superseded by RR7PBP in newer systems
UL Listed and CSA Certified for commercial lighting control applications
Ideal for retrofit, maintenance, and replacement of existing GE low-voltage lighting control installations.

Manufacturer Name: General Electric (GE)
Part Number (MPN): RR7
Product Series: RR Series
Product Type: Remote Control Lighting Relay Switch
Relay Type: Mechanical Latching
Contact Configuration: SPST
Number of Poles: 1
Control Voltage: 21–30 VAC Class 2 (Momentary Pulse)
Alternate Control Voltage: 30–38 VDC (Momentary Pulse)
Load Voltage: 120–277 VAC
Frequency: 60 Hz
Current Rating:
- 20A Tungsten
- 20A Ballast
- 30A Resistive
- 1/2 HP Motor @ 125/277 VAC
Control Wiring: 3-Wire Split Coil
Lead Length: 6 in
Operating Temperature: 32°F to 140°F (0°C to 60°C)
Mounting Type: Knockout / Relay Panel Mount
Certifications: UL Listed, CSA Certified
Replacement Part: RR7PBP
Application: Low-Voltage Lighting Control, Commercial Buildings, Schools, Hospitals, Offices, Lighting Control Panels, Building Automation.
