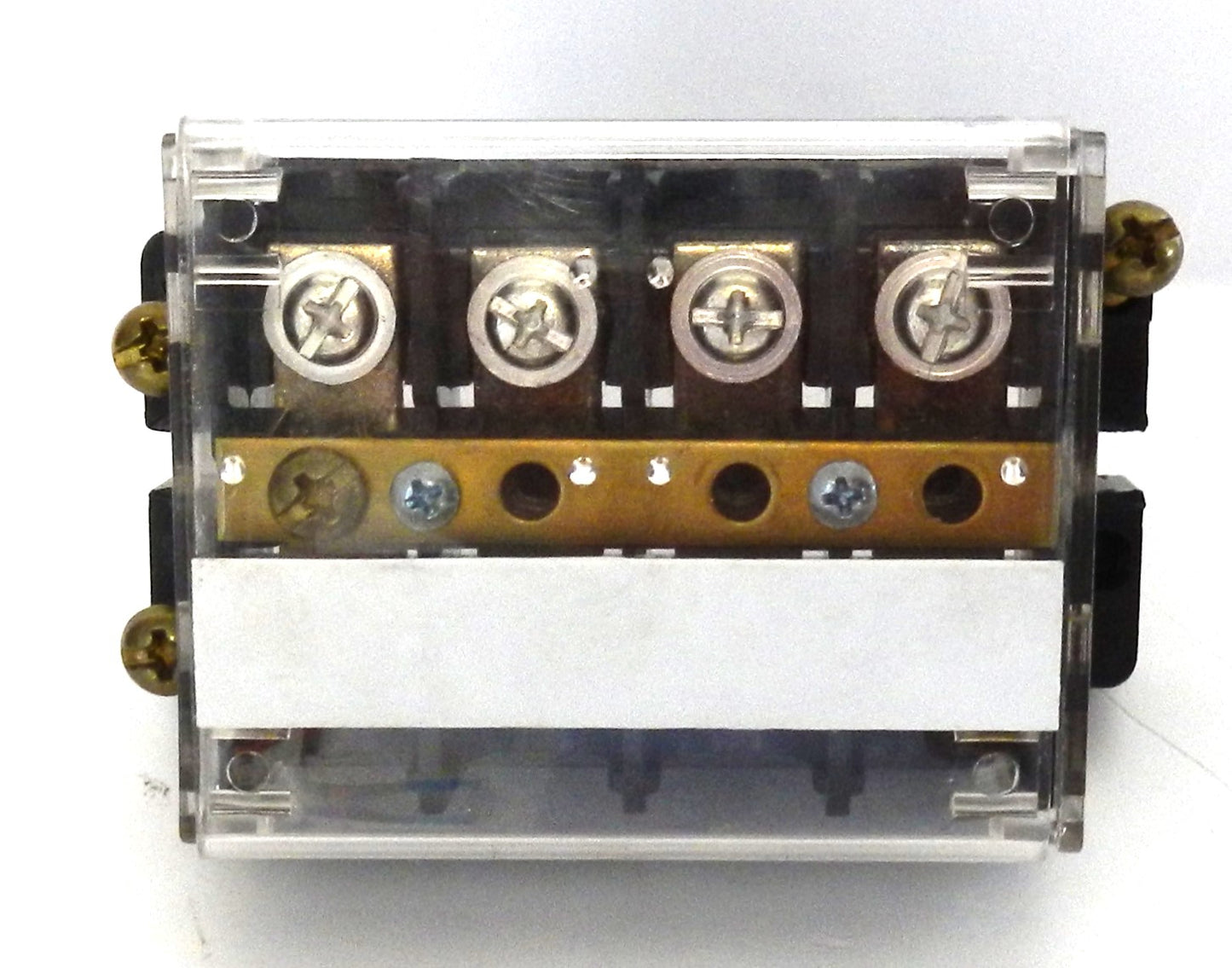

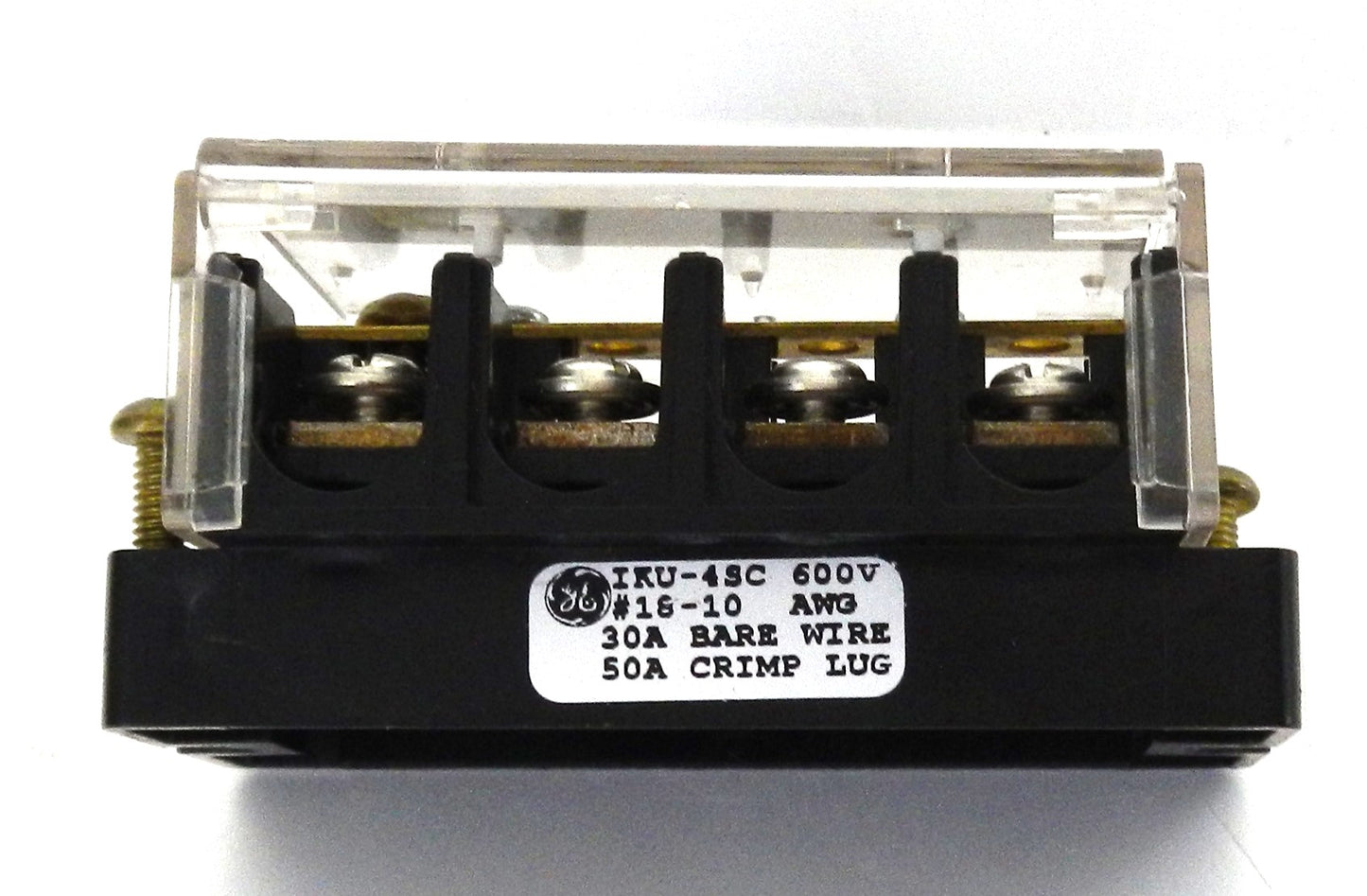

IKU-4SC General Electric Heavy-Duty Shorting Terminal Block 4-Pole 30A 300VAC with Cover

Description:

• Genuine General Electric (GE) heavy-duty shorting terminal block for control wiring, metering, and power distribution applications
• 4-pole terminal block with integrated shorting links for current transformer (CT) shorting and meter servicing
• Rated for 30 Amps and 300 VAC when used with bare wire
• Accepts 18–10 AWG copper conductors
• Rugged thermoplastic body provides excellent impact resistance and long service life
• Tin-plated brass terminals with #10-32 slotted washer-head screws ensure secure electrical connections

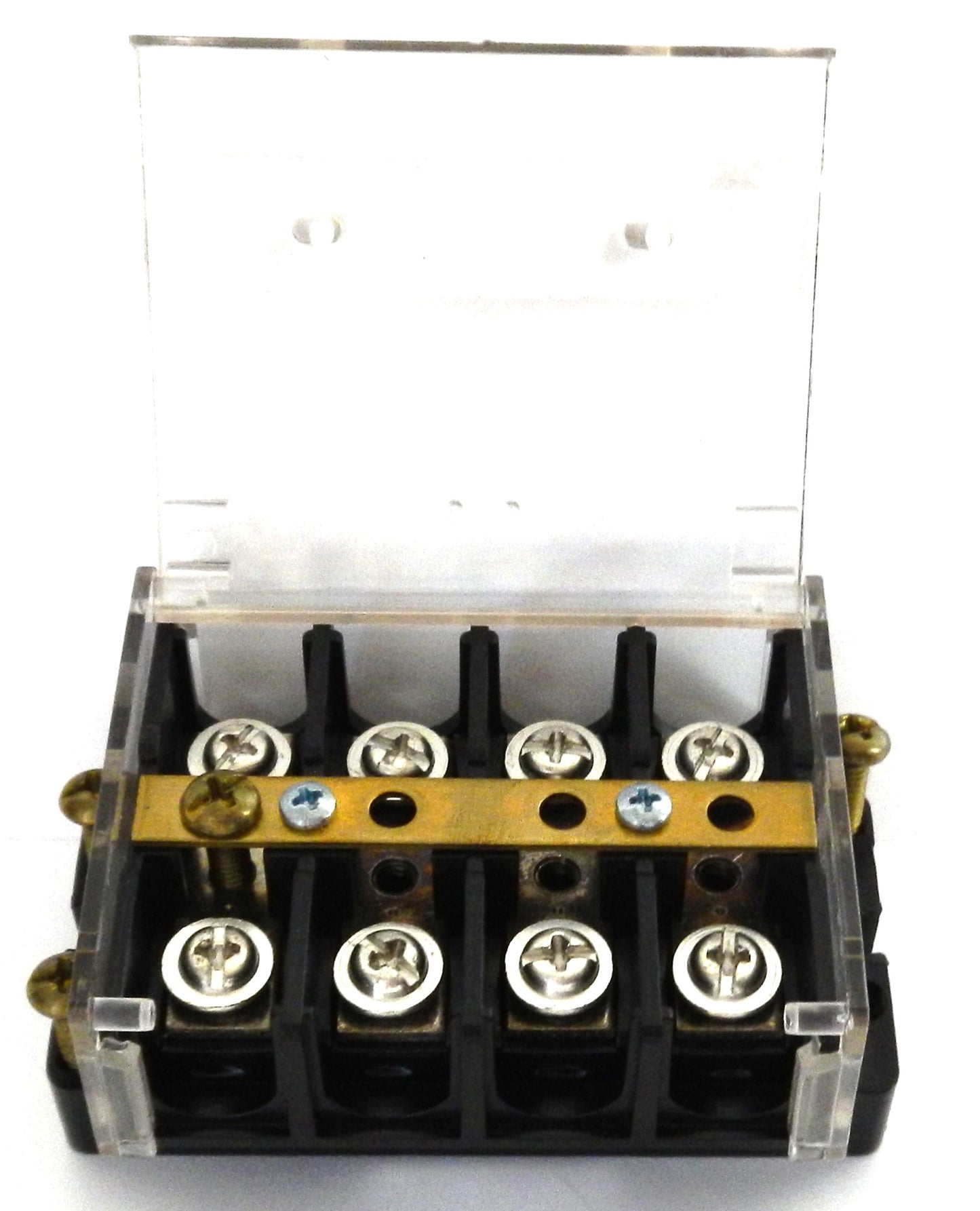

• Includes a clear hinged protective cover with marking strip for easy circuit identification
• Surface-mount design simplifies installation and replacement
• UL Recognized and cUL Recognized for dependable industrial performance
• Ideal for switchgear, metering panels, CT circuits, control panels, power distribution equipment, and industrial automation.

Specifications:

• Manufacturer Name: General Electric (GE)
• Part Number (MPN): IKU-4SC
• Product Series: IKU
• Product Type: Shorting Terminal Block
• Number of Poles: 4
• Terminal Type: Shorting Style
• Rated Current: 30 A
• Rated Voltage: 300 VAC
• Wire Size: 18–10 AWG Copper
• Terminal Material: Tin-Plated Brass
• Terminal Screw Size: #10-32 Slotted Washer Head
• Housing Material: UL 94 Thermoplastic
• Mounting Type: Surface Mount
• Cover: Clear Hinged Protective Cover Included
• Certifications: UL Recognized, cUL Recognized
• Application: Current Transformer Circuits, Metering Panels, Switchgear, Industrial Control Panels, Power Distribution, OEM Equipment, Electrical Protection Systems.

Dimensions:

• Overall Length: 3.25 in (82.6 mm)
• Mounting Distance (Min.): 2.88 in
• Mounting Distance (Max.): 3.00 in.

Weight:

• Approximate Weight: 0.20 lb (0.09 kg).
