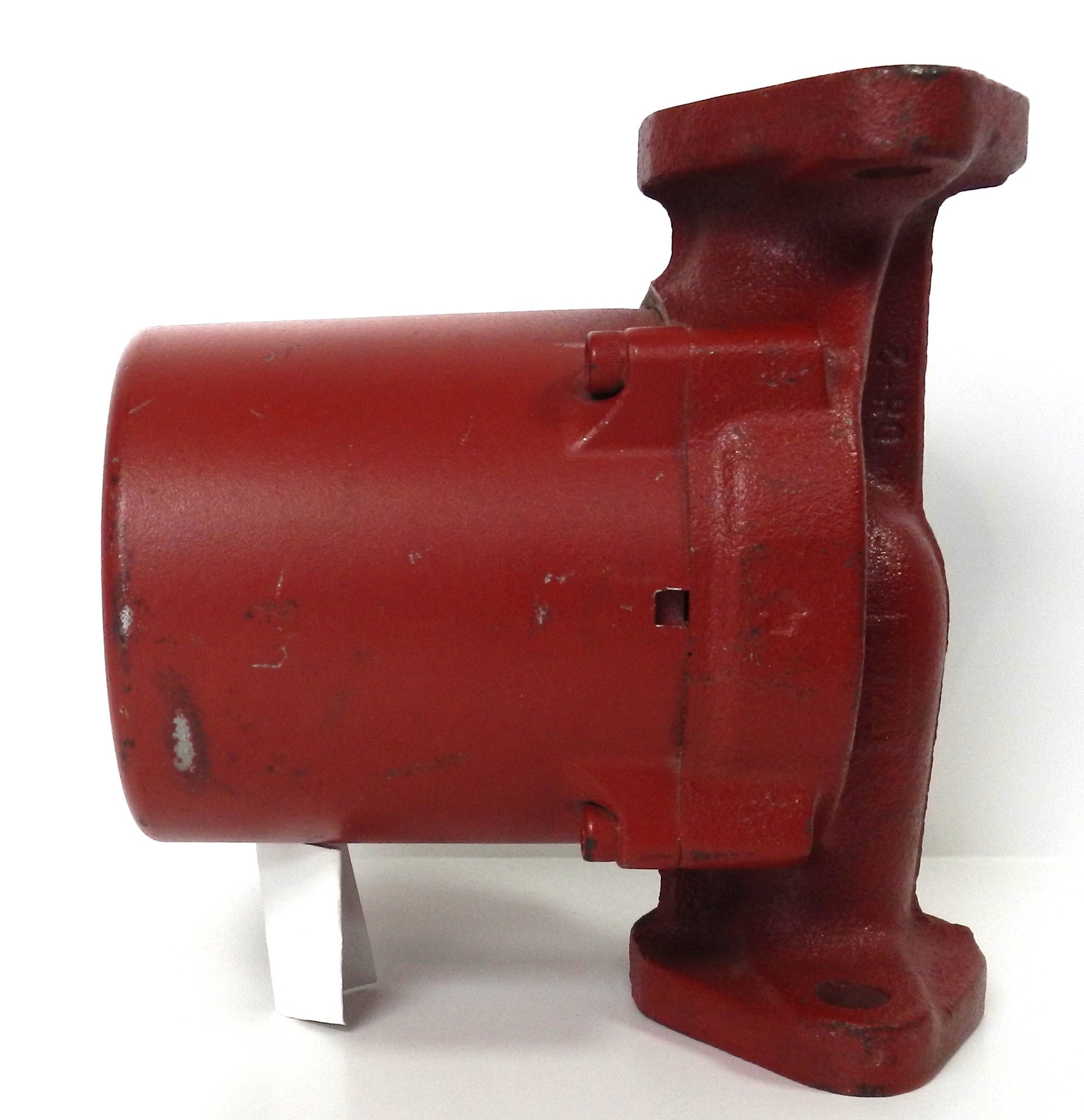

UP 26-99 F Grundfos 115V Cast Iron Circulator Pump Flanged Hydronic Heating Pump

Description:

• Genuine Grundfos UP 26-99 F high-performance circulator pump for hydronic heating, radiant floor heating, boilers, and HVAC systems
• Operates on 115 VAC, single-phase, 60 Hz power
• Durable cast iron pump housing designed for closed-loop heating systems
• Delivers flow rates up to 34 GPM (7.7 m³/h) with a maximum head of 32 ft (9.8 m) for demanding circulation applications
• Three-speed motor allows system performance adjustment to match application requirements

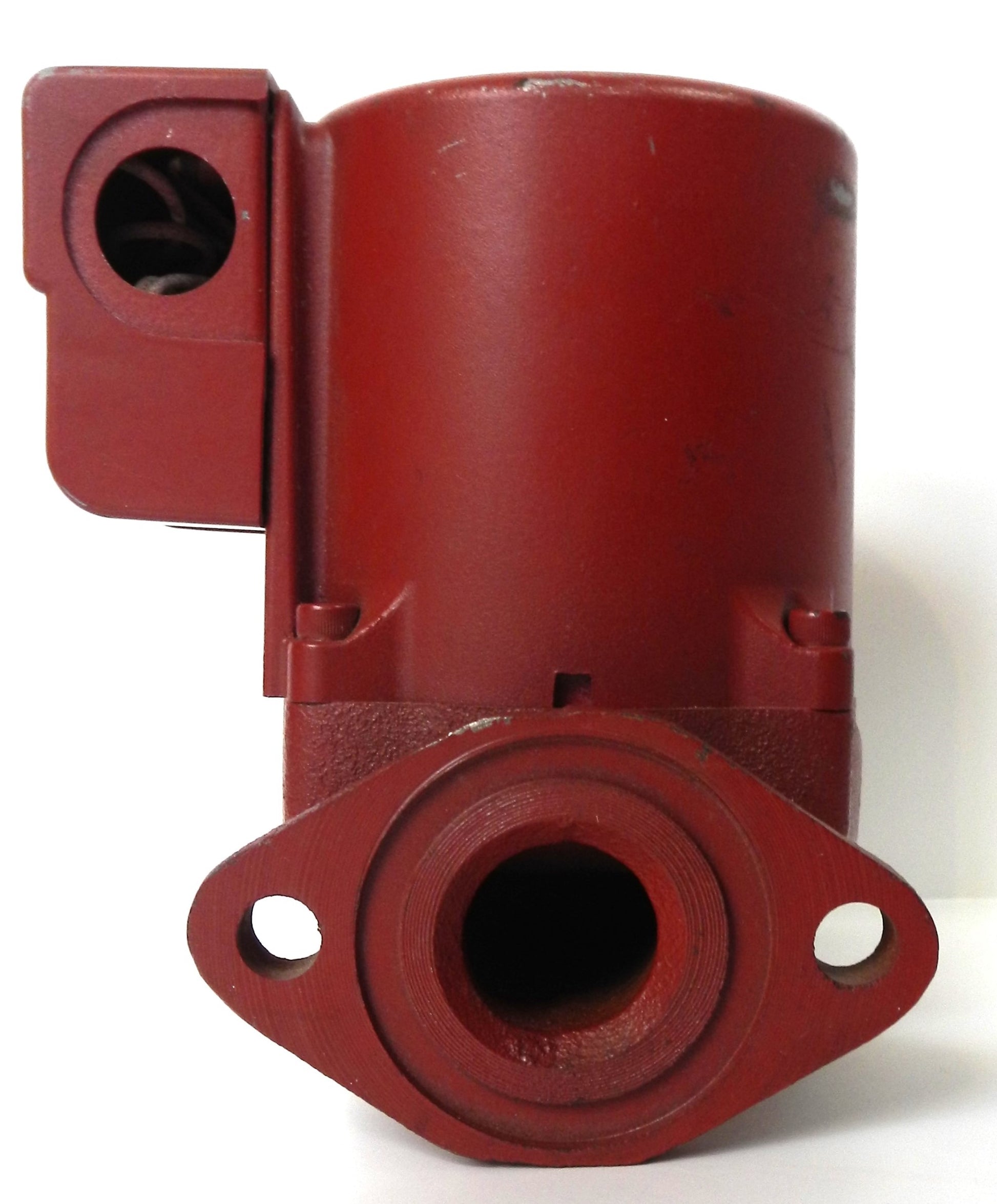

• Flanged connection with GF 15/26 flange pattern for easy installation
• Maintenance-free, water-lubricated motor provides quiet, reliable operation
• Suitable for residential, commercial, and industrial hot water circulation systems
• Ideal for boilers, radiant heating, fan coil units, heat exchangers, geothermal systems, and hydronic heating applications

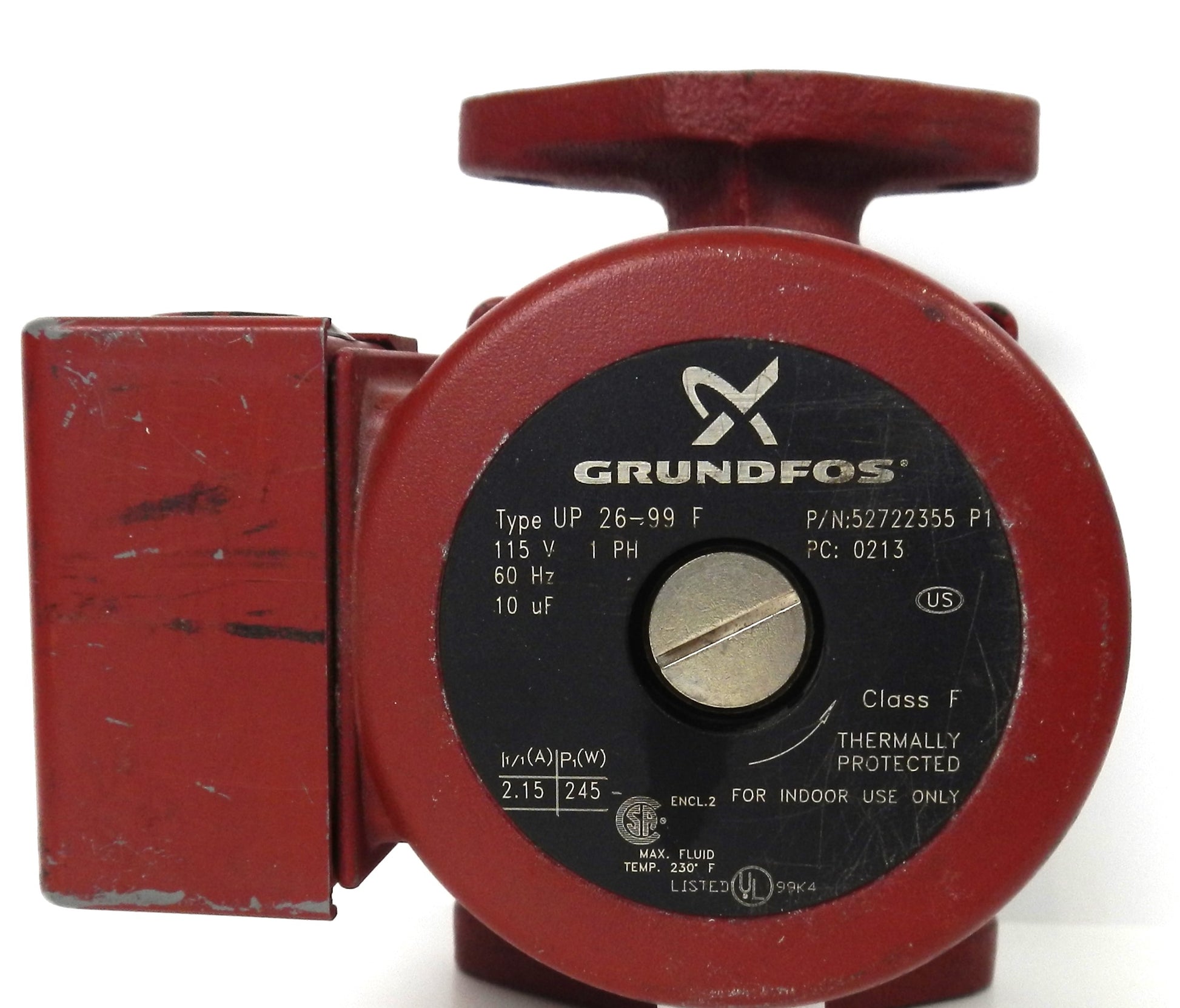

• Factory model: UP 26-99 F 115V (Product No. 52722355)

Specifications:

• Manufacturer Name: Grundfos
• Part Number (MPN): UP 26-99 F
• Product Number (115V): 52722355
• Product Type: Circulator Pump
• Pump Series: UP Series
• Motor Type: Single-Phase, 2-Pole
• Supply Voltage: 115 VAC
• Frequency: 60 Hz
• Current Draw: 2.15 A
• Power Consumption: 245 W
• Motor Output: 0.329 HP
• Capacitor: 10 μF / 180 V
• Maximum Flow Rate: 34 GPM (7.7 m³/h)
• Maximum Head: 32 ft (9.8 m)
• Maximum Liquid Temperature: 230°F (110°C)
• Minimum Liquid Temperature: 36°F (2°C)
• Maximum System Pressure: 145 psi (10 bar)
• Pump Housing Material: Cast Iron
• Connection Type: GF 15/26 Flange
• Applications:
  • Hydronic Heating
  • Boiler Systems
  • Radiant Floor Heating
  • HVAC Systems
  • Fan Coil Units
  • Heat Exchangers
  • Geothermal Systems
  • Commercial Water Circulation

Dimensions:

• Port-to-Port Length: 6.50 in (165 mm)
• Height: 6.38 in (162 mm)
• Width: 5.06 in (129 mm)
• Flange Connection: GF 15/26 with (2) 1/2 in bolt holes

Weight:

• Approximate Weight: 5.7 kg (12.5 lb).
