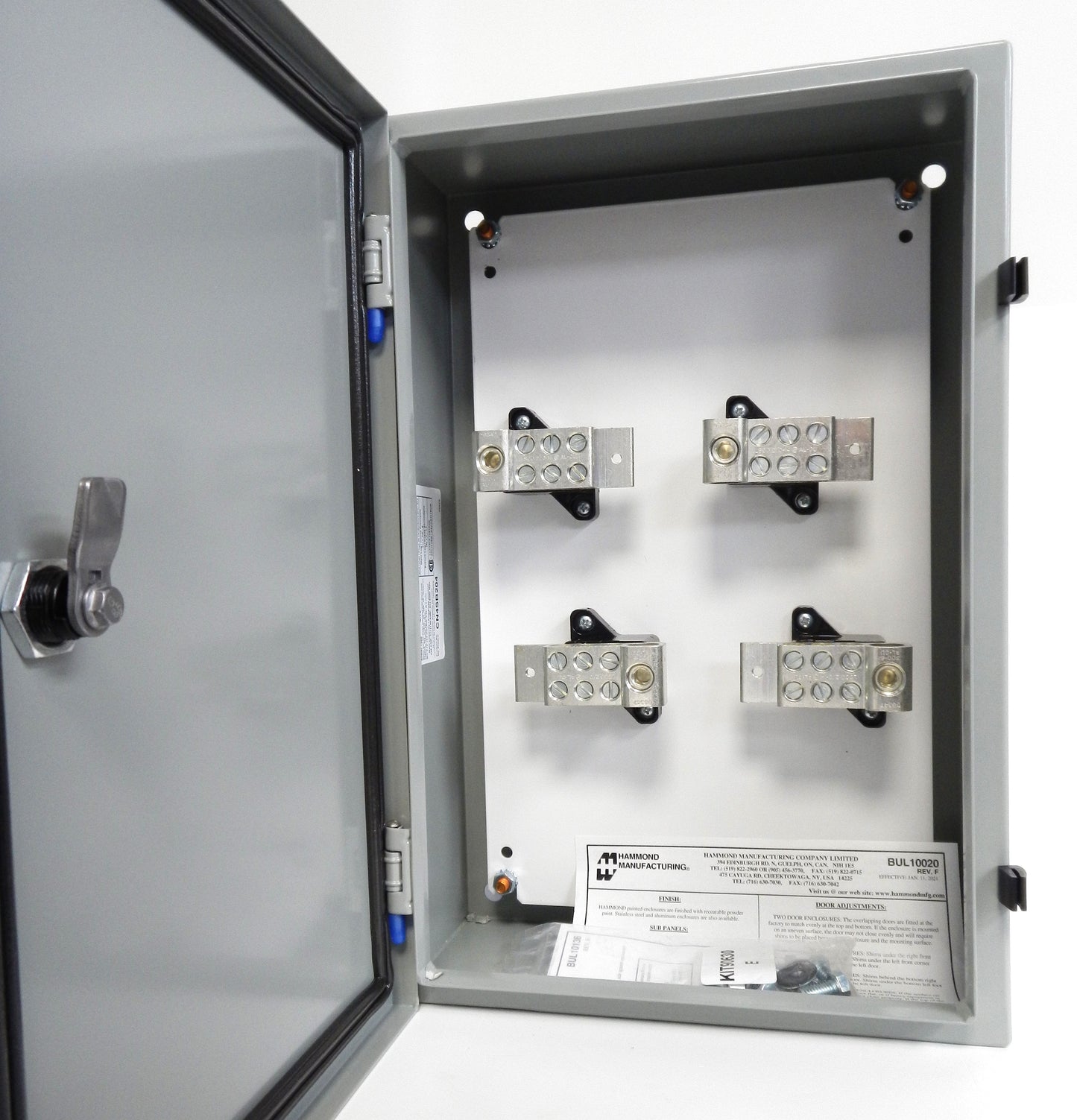

CN4SB204 Hammond 225A 4-Wire Type 3R/4 Splitter Box 18 x 12 x 5 in Steel Enclosure

Description:

• Genuine Hammond Manufacturing Type 3R/4 splitter box for commercial and industrial power distribution applications
• Rated for 225A, 600 VAC, 4-wire electrical distribution systems
• Factory-installed splitter block simplifies branch circuit distribution and installation
• Constructed from 16-gauge welded mild steel for superior strength and durability
• ANSI 61 gray powder-coated finish provides corrosion resistance in indoor and outdoor environments
• Hinged door with quarter-turn latch for secure access and easy maintenance
• Continuous welded seams with seamless poured-in-place gasket provide protection against dust, water, and contaminants
• Includes white-painted removable inner panel and mounting hardware
• Stainless steel hinges with removable hinge pins simplify enclosure modifications
• Ideal for electrical distribution, commercial buildings, industrial facilities, OEM equipment, and control panel installations.

Specifications:

• Manufacturer Name: Hammond Manufacturing
• Part Number (MPN): CN4SB204
• Product Series: CN4SB
• Product Type: Splitter Box
• Amperage Rating: 225 A
• Voltage Rating: 600 VAC Maximum
• Number of Wires: 4
• Enclosure Rating:
  • NEMA Type 3R
  • NEMA Type 4
  • NEMA Type 12
  • IP66
• Material: 16-Gauge Mild Steel
• Finish: ANSI 61 Gray Powder Coat
• Door Type: Hinged Door with Quarter-Turn Latch
• Splitter Block: Factory Installed (CSBL225)
• Grounding Kit Compatibility: CGK225
• Mounting: Wall Mount
• Standards:
  • CSA Type 3R/4/12
  • IEC 60529 IP66
  • RoHS Compliant
  • REACH Compliant
• Applications:
  • Electrical Distribution
  • Commercial Buildings
  • Industrial Facilities
  • Power Distribution
  • Control Panels
  • OEM Equipment

Dimensions:

• Height: 18 in (457 mm)
• Width: 12 in (305 mm)
• Depth: 5 in (127 mm)

Weight:

• Approximate Weight: 17 lb (7.71 kg).
