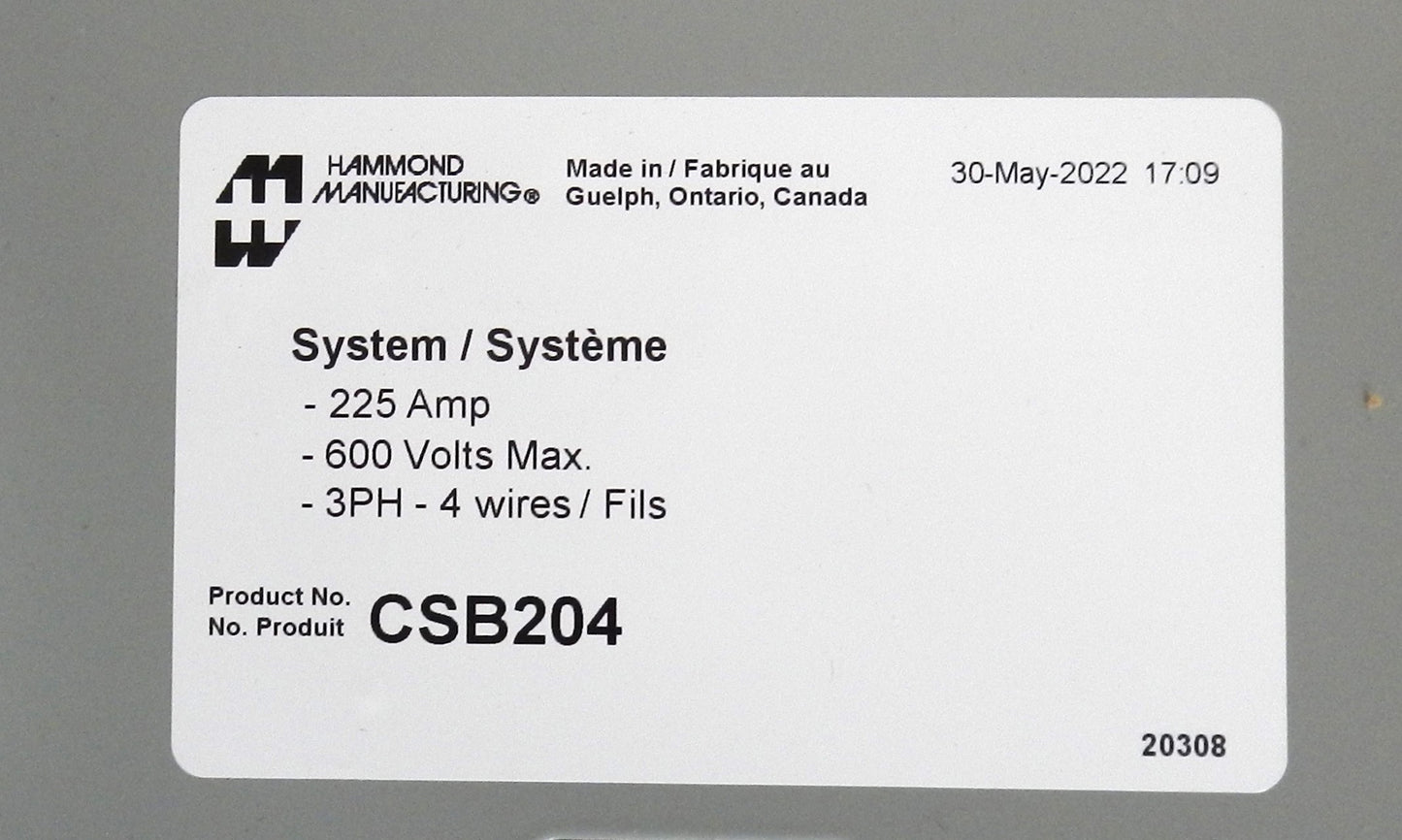

CSB204 Hammond 225A Type 1 Steel Splitter Box 18 x 12 x 5 Gray Enclosure

Description:

• Genuine Hammond Manufacturing Type 1 splitter box for indoor electrical power distribution applications
• Rated for 225 Amp service with factory-installed 4-wire copper/aluminum splitter blocks
• Heavy-duty 16-gauge welded steel construction for long-lasting industrial performance
• ANSI 61 gray powder-coated finish provides corrosion resistance and a professional appearance
• Hinged cover with screw closure allows secure access to internal wiring
• Multiple factory knockouts simplify conduit installation
• Padlockable design enhances equipment security
• Designed for indoor service distribution up to 600 VAC using 3-wire or 4-wire systems
• Ideal for commercial buildings, industrial facilities, OEM equipment, electrical distribution, and control panel installations
• Complies with CSA Type 1 and IEC 60529 IP20 enclosure requirements.

Specifications:

• Manufacturer Name: Hammond Manufacturing
• Part Number (MPN): CSB204
• Product Series: CSB Series
• Product Type: Splitter Box
• Current Rating: 225 A
• Maximum Voltage: 600 VAC
• Enclosure Type: Type 1 Indoor
• IP Rating: IP20
• Splitter Block: Factory Installed
• Conductor Compatibility: Copper / Aluminum
• Number of Wire System: 4-Wire
• Material: 16-Gauge Welded Steel
• Finish: ANSI 61 Gray Powder Coat
• Door Type: Hinged Cover with Screw Fasteners
• Mounting: Wall Mount
• Standards:
  • CSA Type 1
  • IEC 60529 IP20
  • RoHS Compliant
  • REACH Compliant
• Applications:
  • Electrical Power Distribution
  • Commercial Buildings
  • Industrial Facilities
  • Control Panels
  • OEM Equipment
  • Service Entrance Distribution

Dimensions:

• Height: 18 in (457 mm)
• Width: 12 in (305 mm)
• Depth: 5 in (127 mm)

Weight:

• Approximate Weight: 17 lb (7.71 kg).
