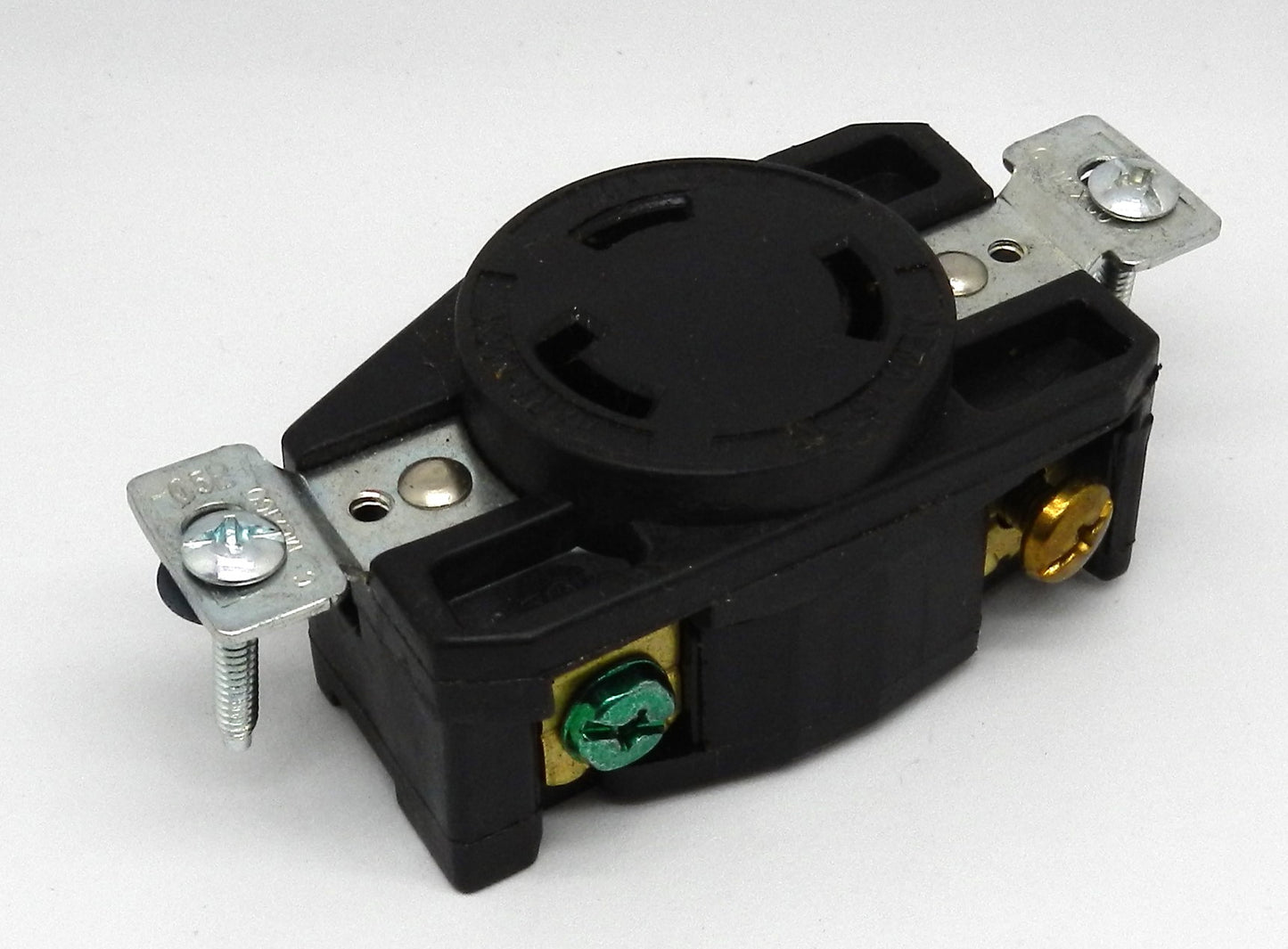

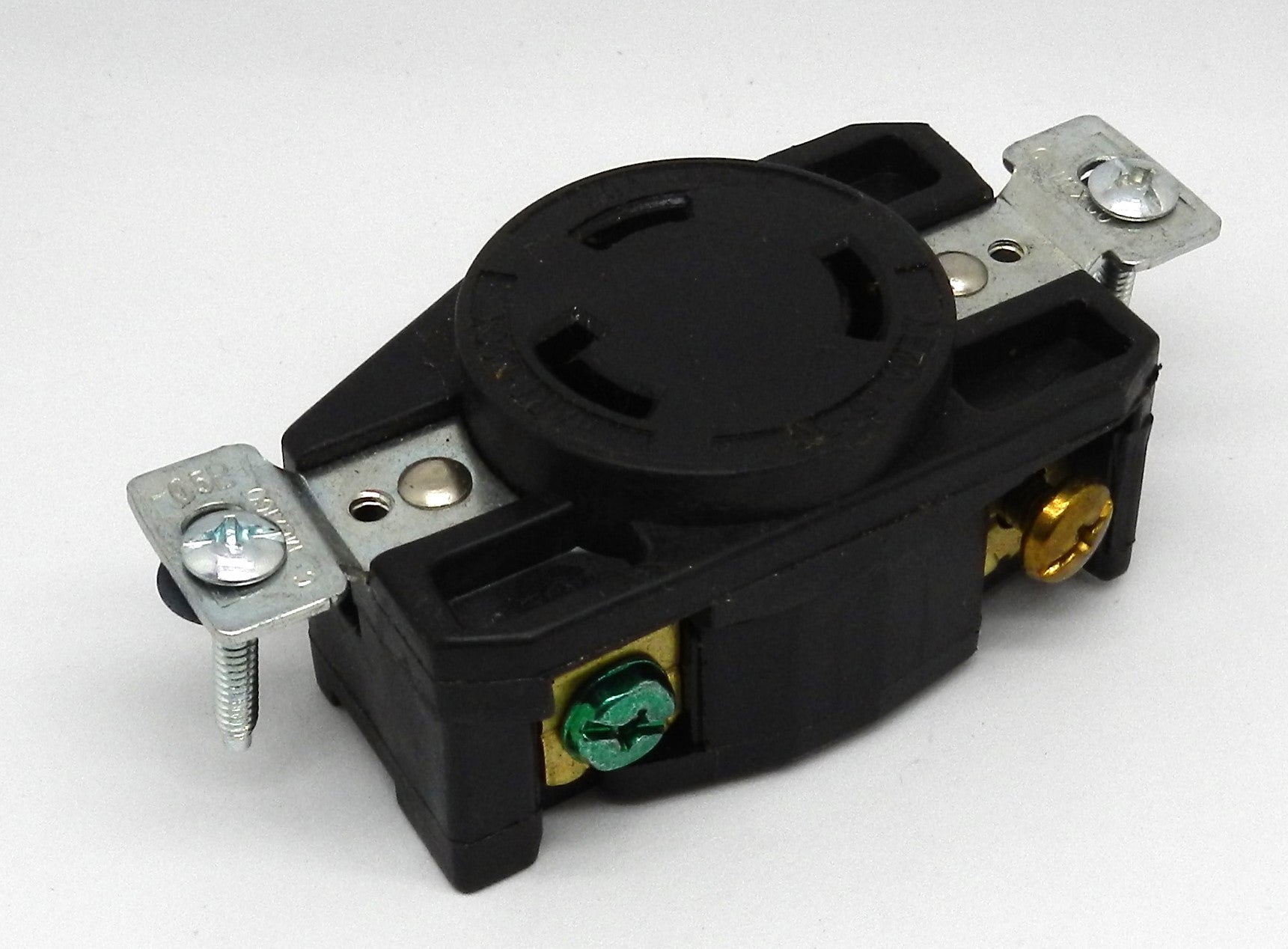

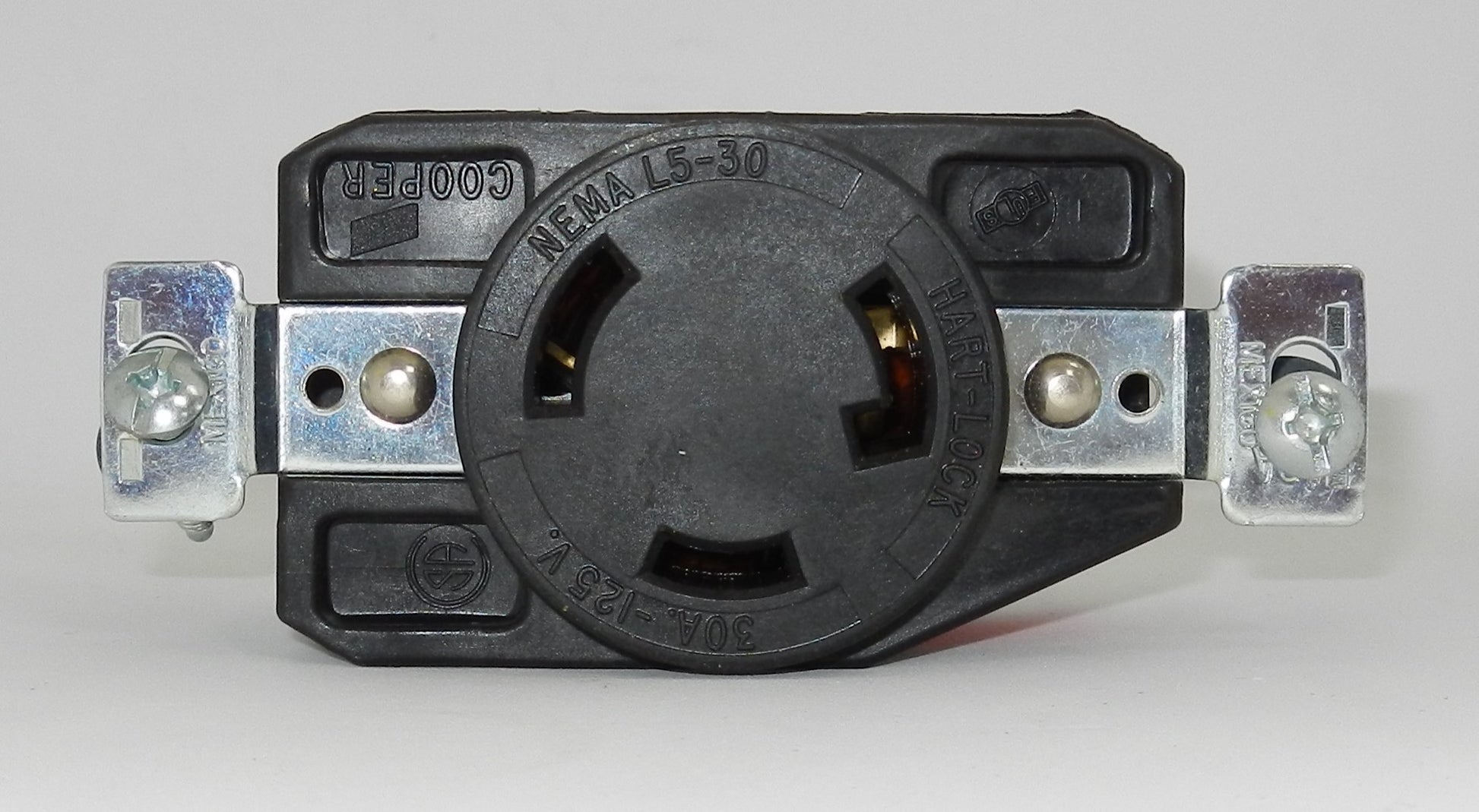

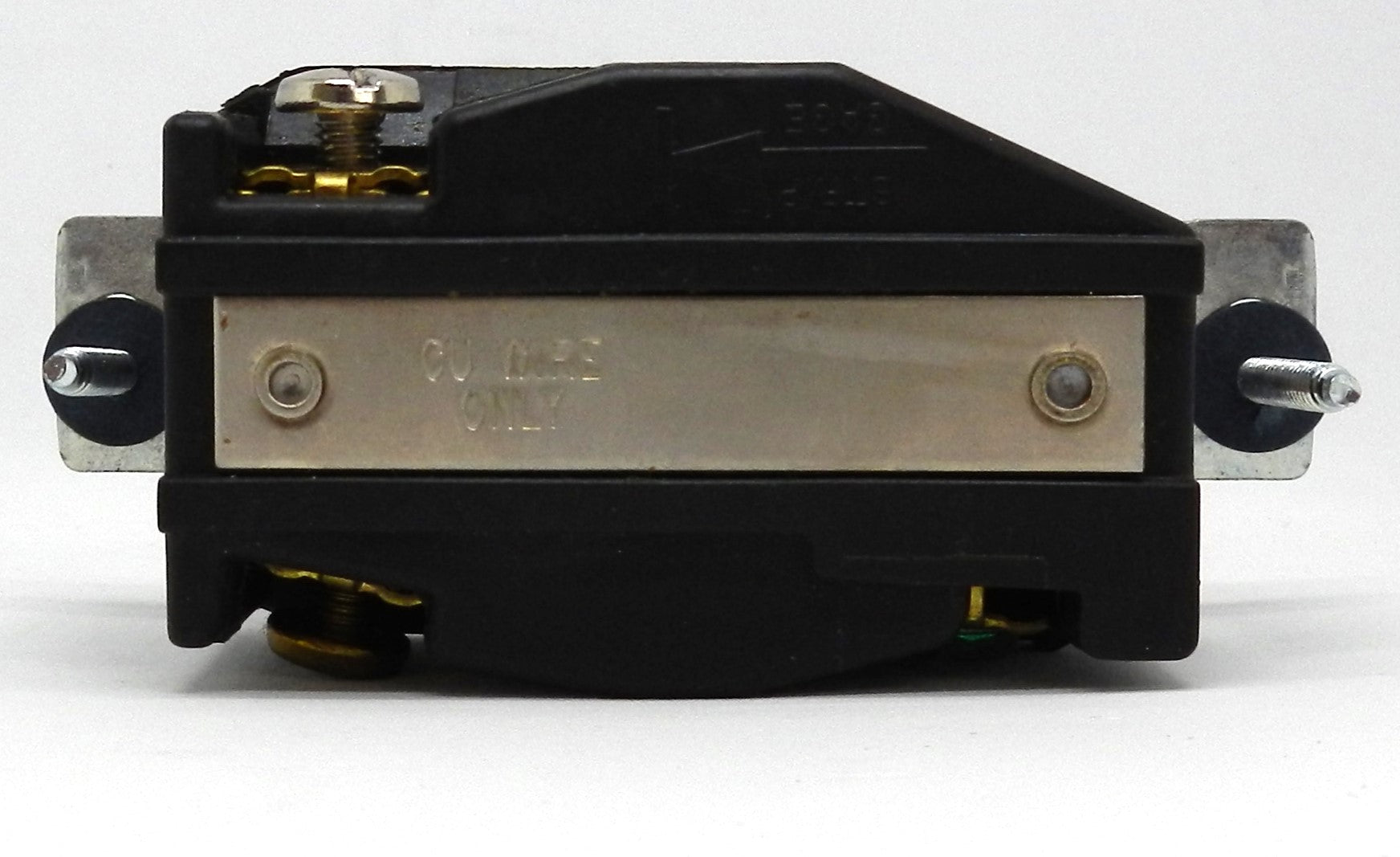

L5-30 Hart-Lock Eaton Arrow Hart 30A 125V 2-Pole 3-Wire Twist-Lock Plug Connector

Description:

• Eaton Arrow Hart Hart-Lock industrial-grade locking wiring device
• NEMA L5-30 configuration for 30 Amp, 125 VAC applications
• 2-pole, 3-wire grounding design for reliable electrical connections
• Twist-lock configuration helps prevent accidental disconnection in demanding environments
• Designed for industrial and commercial power applications
• Heavy-duty construction provides durability for frequent connection and disconnection
• Available Hart-Lock L5-30 configurations include plugs, connectors, and receptacles
• Suitable for generators, industrial machinery, portable equipment, extension cords, and commercial electrical installations
• Hart-Lock L5-30 devices are rated 30A at 125 VAC.

Specifications:

• Manufacturer: Eaton / Arrow Hart
• Product Family: Hart-Lock
• Product Type: Locking Plug / Connector
• NEMA Configuration: L5-30
• Rated Current: 30 A
• Rated Voltage: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Connection Style: Twist-Lock / Locking
• Grade: Industrial
• Typical Cord Range: 0.38–1.00 in
• Typical Wire Range: 14–8 AWG
• Applications:
  • Industrial Machinery
  • Generators
  • Portable Equipment
  • Extension Cords
  • Commercial Equipment
  • Industrial Power Connections

Dimensions:

• Typical Hart-Lock L5-30 plug/connector body: approximately 2.12 in (53.8 mm) diameter
• Exact dimensions depend on whether the item is a plug, connector, or receptacle.

Weight:

• Typical L5-30 Hart-Lock plug weight: approximately 0.30 lb (0.14 kg).
