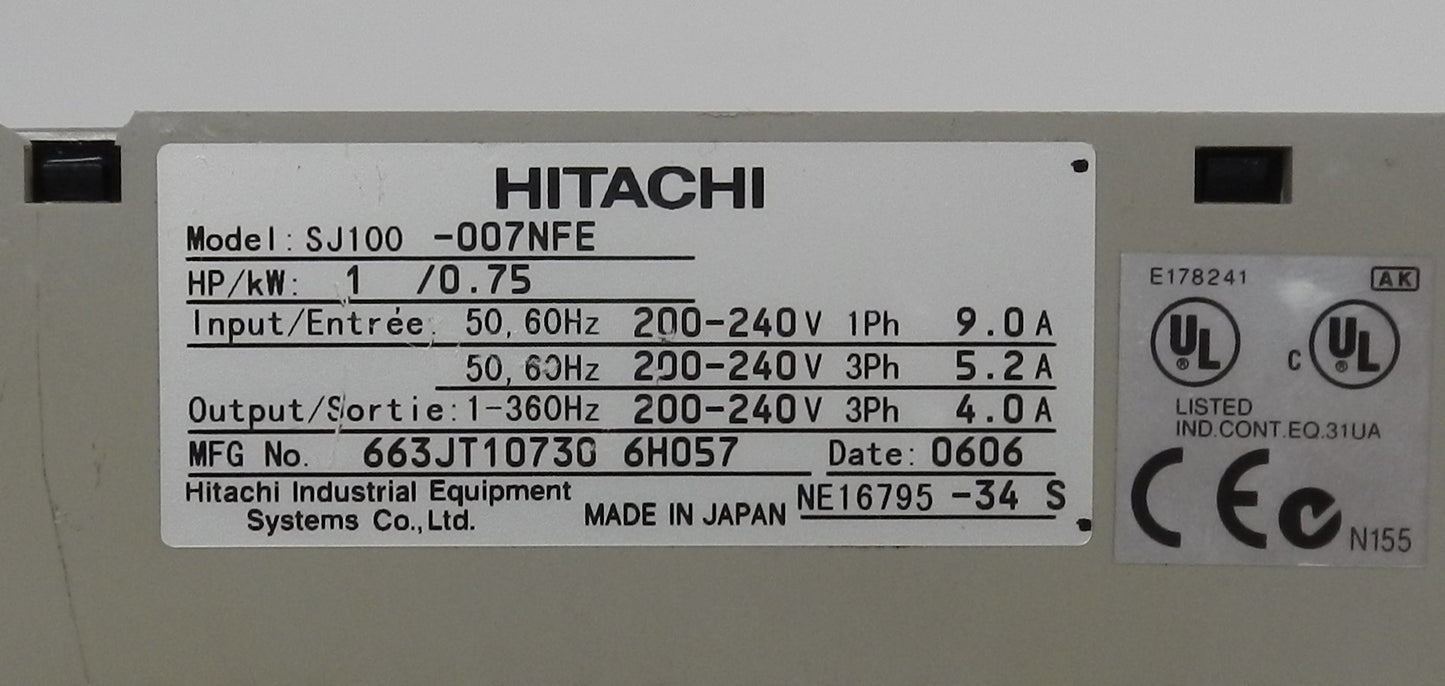

SJ100-007NFE Hitachi VFD 1 HP 0.75 kW 200-240V AC Variable Frequency Drive Inverter

Description:

• Genuine Hitachi SJ100 Series variable frequency drive (VFD) for industrial motor speed control applications
• Rated for 1 HP (0.75 kW) three-phase AC motors
• Accepts 200–240 VAC input power (single-phase or three-phase depending on installation) and provides a three-phase 200–240 VAC output for precise motor control.
• Advanced PWM control with selectable V/f and sensorless vector control for smooth acceleration, high starting torque, and efficient operation.
• Output frequency adjustable from 0.5 to 360 Hz for flexible speed control.
• Built-in digital operator with keypad for parameter programming and monitoring
• Compact IP20 enclosure for panel-mounted industrial installations
• Integrated protective functions including overload, overcurrent, overvoltage, undervoltage, overheating, and ground fault protection
• Ideal for pumps, fans, conveyors, mixers, compressors, packaging equipment, machine tools, and general industrial automation
• Part of the reliable Hitachi SJ100 Series, recognized for compact size, dependable performance, and easy integration into control panels.

Specifications:

• Manufacturer Name: Hitachi
• Part Number (MPN): SJ100-007NFE
• Product Series: SJ100
• Product Type: Variable Frequency Drive (VFD) / AC Inverter Drive
• Motor Rating: 0.75 kW (1 HP)
• Input Voltage:
  • 200–240 VAC
  • 50/60 Hz
• Input Phase:
  • Single-Phase
  • Three-Phase
• Output Voltage: Three-Phase 200–240 VAC
• Rated Output Current: 4.0 A
• Rated Capacity: 1.5 kVA (230 V) / 1.6 kVA (240 V)
• Control Method:
  • PWM
  • V/f Control
  • Sensorless Vector Control
• Output Frequency Range: 0.5–360 Hz
• Overload Rating: 150% for 60 Seconds
• Enclosure Rating: IP20
• Cooling Method: Forced Air
• Mounting Type: Panel Mount
• Operating Temperature: -10°C to +50°C
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Mixers
  • Packaging Equipment
  • Machine Tools
  • General Industrial Automation

Dimensions:

• Height: 128 mm (5.04 in)
• Width: 108 mm (4.25 in)
• Depth: 138 mm (5.43 in).

Weight:

• Approximate Weight: 1.3 kg (2.87 lb).
