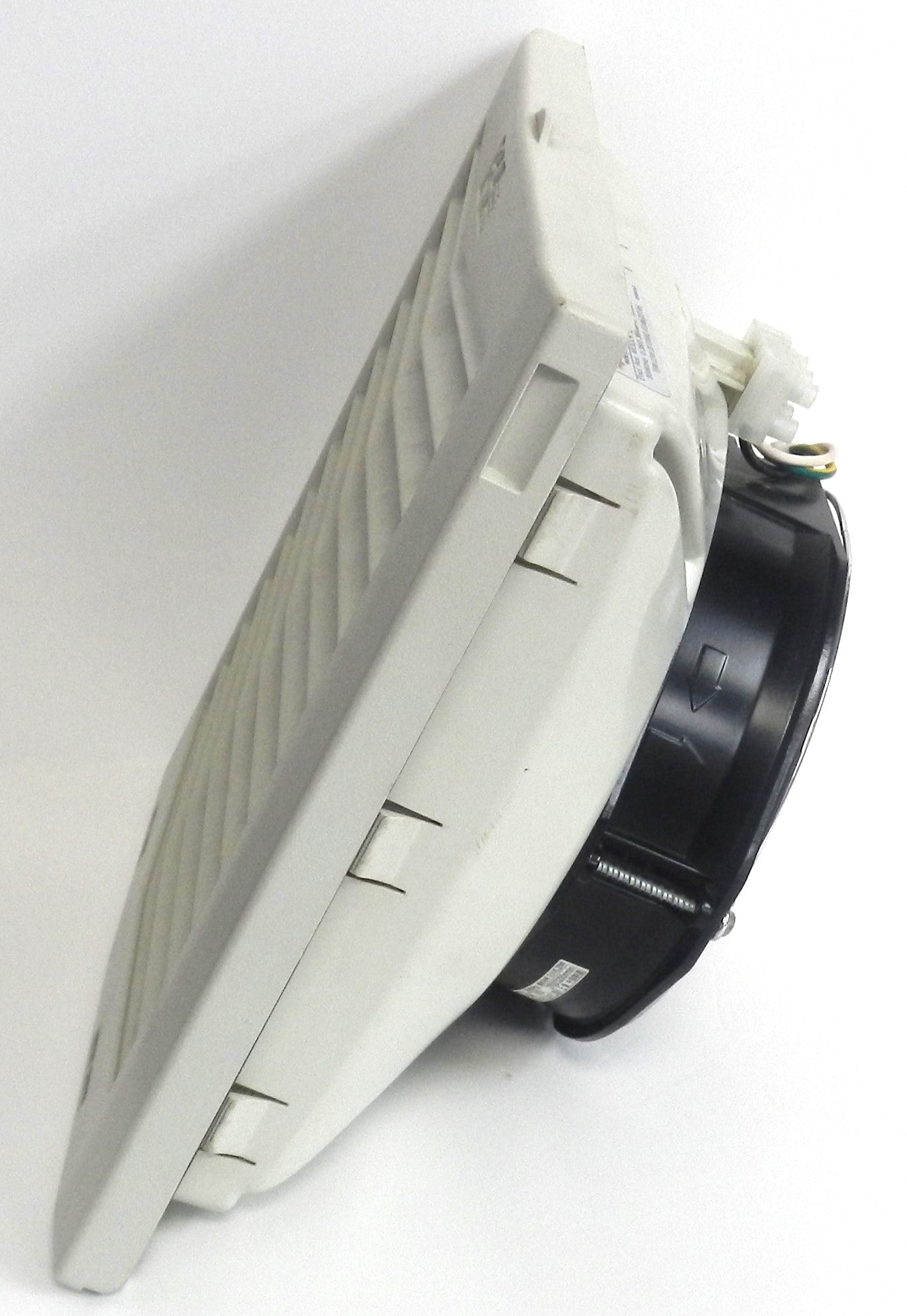

HF1016514 nVent HOFFMAN 115V Side-Mount Filter Fan 103 CFM NEMA 12 IP55 Light Gray

Description:

• Genuine nVent HOFFMAN side-mount filter fan designed for enclosure cooling and thermal management
• Provides 103 CFM (175 m³/h) airflow to maintain safe operating temperatures inside electrical enclosures
• Operates on 115 VAC power for industrial control panels and automation systems
• Click-Fit mounting design enables fast installation with no tools or screws required

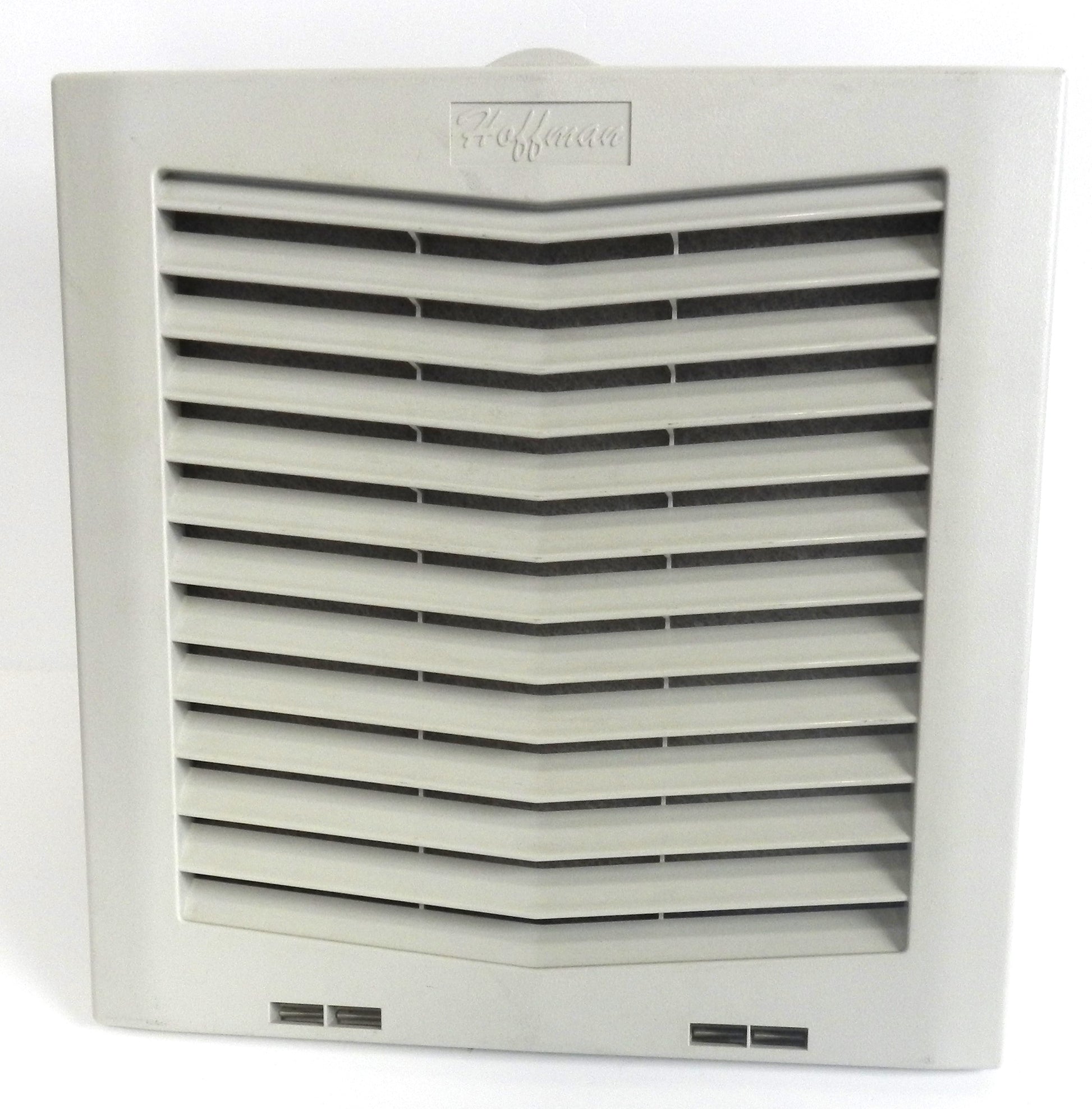

• Hinged front grille opens with the flick of a finger for quick filter replacement
• NEMA Type 12 and IP55 rated to protect against dust and water ingress
• Durable ABS thermoplastic housing with light gray finish
• Terminal block wiring for secure electrical connections
• Compatible with optional thermostat controls to reduce energy consumption and extend fan life
• Ideal for industrial control panels, PLC cabinets, VFD enclosures, automation systems, power distribution, and OEM equipment.

Specifications:

• Manufacturer Name: nVent HOFFMAN
• Part Number (MPN): HF1016514
• Product Series: HF Side-Mount Filter Fans
• Product Type: Side-Mount Filter Fan
• Supply Voltage: 115 VAC
• Air Flow: 103 CFM (175 m³/h)
• Current Rating: 0.38/0.36 A
• Power Consumption: 35/32 W
• Fan Speed: 2700/3200 RPM
• Noise Level: 53/56 dBA
• Connection Type: Terminal Block
• Mounting Type: Side Mount
• Housing Material: ABS Thermoplastic
• Color: Light Gray (RAL 7035)
• Enclosure Rating:
  • NEMA Type 12
  • IP55
• Operating Temperature: -20°C to +65°C (-4°F to +149°F)
• Certifications:
  • UL Listed
  • cUL Listed
  • CE
  • EAC
• Applications:
  • Electrical Enclosures
  • PLC Cabinets
  • VFD Panels
  • Industrial Automation
  • Power Distribution
  • Control Panels
  • OEM Equipment

Dimensions:

• Height: 257.3 mm (10.13 in)
• Width: 258 mm (10.14 in)
• Depth: 119 mm (4.68 in).

Weight:

• Approximate Weight: 2.0 kg (4.4 lb).
