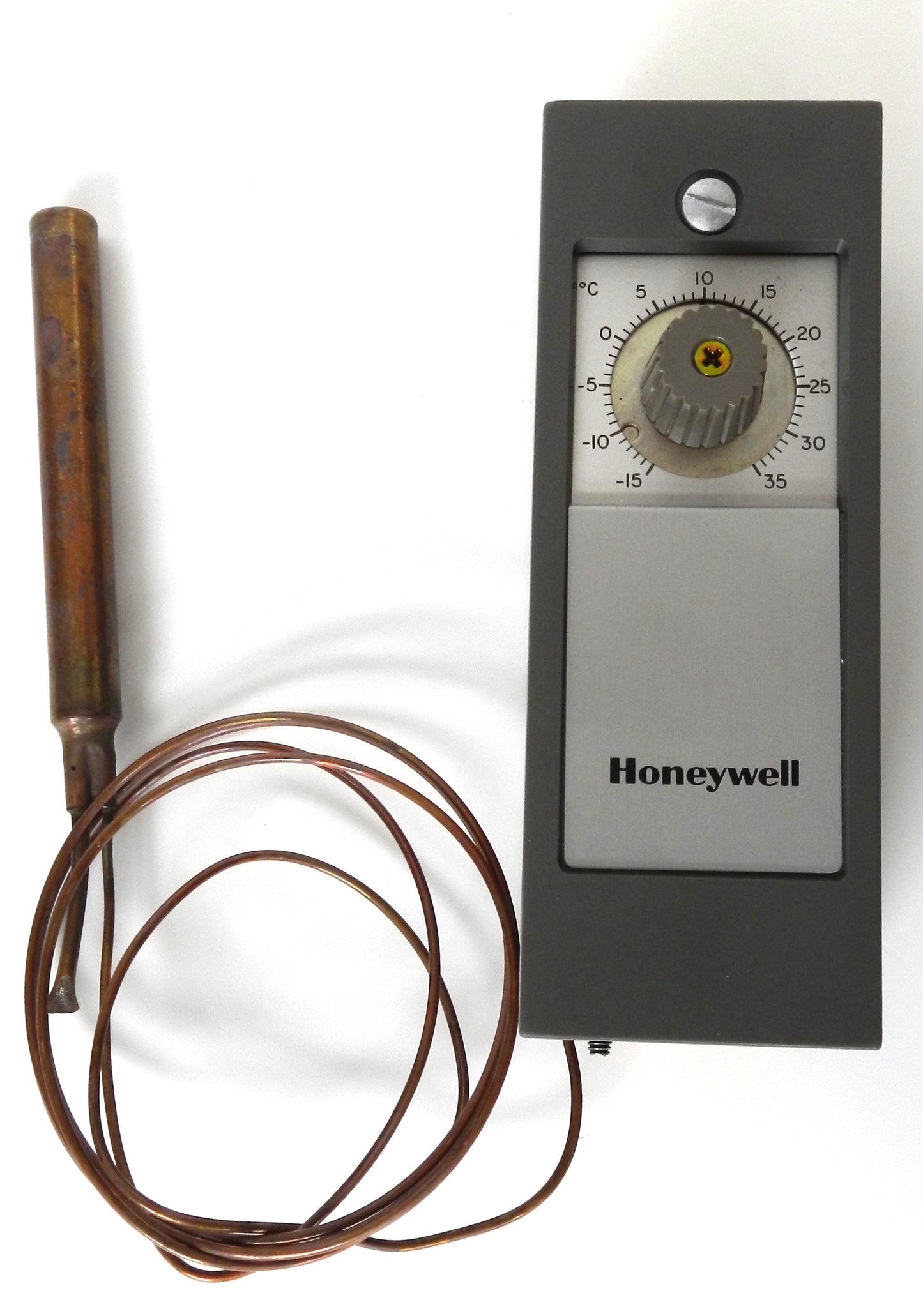

T675-A-2068 Honeywell SPDT Remote Bulb Temperature Controller Thermostat -15°C to 35°C

Description:

• Genuine Honeywell remote bulb temperature controller designed for precise temperature regulation in industrial and commercial HVAC systems
• Features a Single-Pole Double-Throw (SPDT) snap-acting switch for dependable heating and cooling control
• Adjustable temperature range of -15°C to +35°C (5°F to 95°F) for air and liquid temperature regulation
• Remote copper sensing bulb provides fast and accurate temperature response
• Includes a 5 ft (1.5 m) capillary tube for flexible remote sensor installation
• Suitable for controlling air or liquid temperatures in ducts, pipes, tanks, boilers, and refrigeration equipment
• Ambient temperature compensation improves control accuracy
• Front-mounted adjustment knob for easy temperature setpoint changes
• Ideal for HVAC systems, refrigeration, heating equipment, cooling systems, process control, and industrial automation applications.

Specifications:

• Manufacturer Name: Honeywell
• Part Number (MPN): T675-A-2068 (T675A2068/U)
• Product Type: Remote Bulb Temperature Controller / Thermostat
• Switch Type: SPDT (Single-Pole Double-Throw)
• Temperature Range: -15°C to +35°C (5°F to 95°F)
• Sensor Type: Liquid-Filled Copper Bulb
• Bulb Size: 1/2 in × 4-3/16 in (12.7 × 106.4 mm)
• Capillary Length: 5 ft (1.5 m / 60 in)
• Differential: 1.7°C to 5.6°C (model dependent)
• Electrical Ratings:
  • 120 VAC: 8.0 A Full Load / 48 A Locked Rotor
  • 240 VAC: 5.1 A Full Load / 30.6 A Locked Rotor
  • 277 VAC: 4.2 A Full Load / 25.2 A Locked Rotor
• Pilot Duty: 125 VA
• Frequency: 50/60 Hz
• Mounting: Panel Mount
• Applications:
  • HVAC Systems
  • Refrigeration Equipment
  • Heating & Cooling Systems
  • Air Handling Units
  • Boilers
  • Water Tanks
  • Process Temperature Control
  • Industrial Automation

Dimensions:

• Height: 5-5/8 in (143 mm)
• Width: 2 in (51 mm)
• Depth: 2-5/8 in (67 mm)

Weight:

• Approximate Weight: 0.68 kg (1.5 lb).
