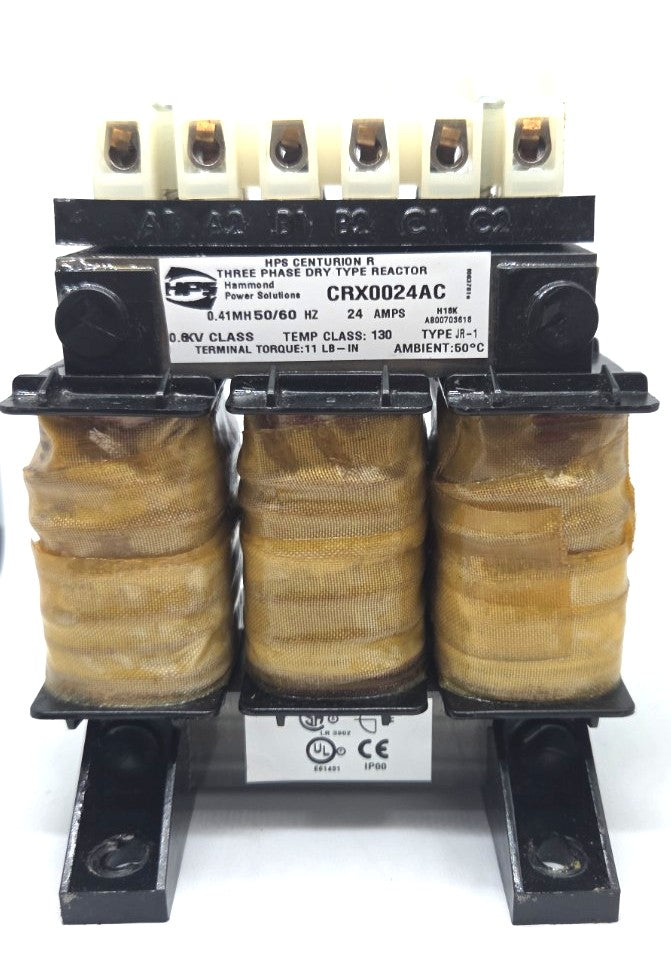

HPS CRX0024AC Three Phase Line Reactor – 24A, 0.41mH, 600V Class

Description

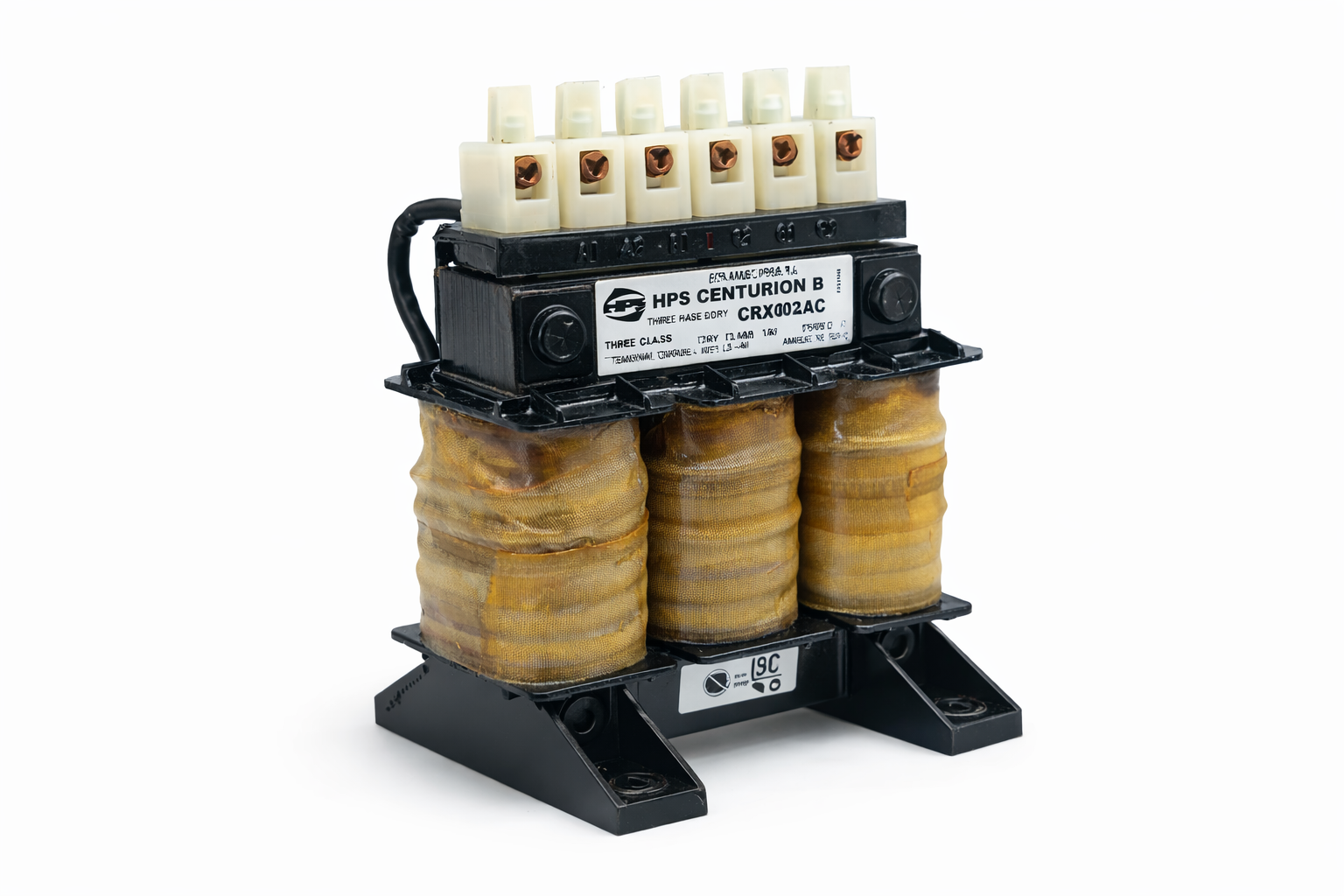

The HPS CRX0024AC from Hammond Power Solutions Centurion R series is a three-phase dry type line reactor designed to protect variable frequency drives (VFDs) and motors from voltage spikes, harmonics, and electrical noise.

This reactor improves system reliability and extends the life of motor drives by reducing harmonic distortion and limiting inrush current in industrial motor control systems.

Key Specifications

Manufacturer: Hammond Power Solutions (HPS)
Part Number (MPN): CRX0024AC
Series: Centurion R
Product Type: Three Phase Line Reactor
Current Rating: 24 Amps
Inductance: 0.41 mH
Frequency: 50/60 Hz
Voltage Class: 600V
Phase: Three Phase
Temperature Class: 130°C
Ambient Temperature: 50°C
Enclosure Rating: IP00
