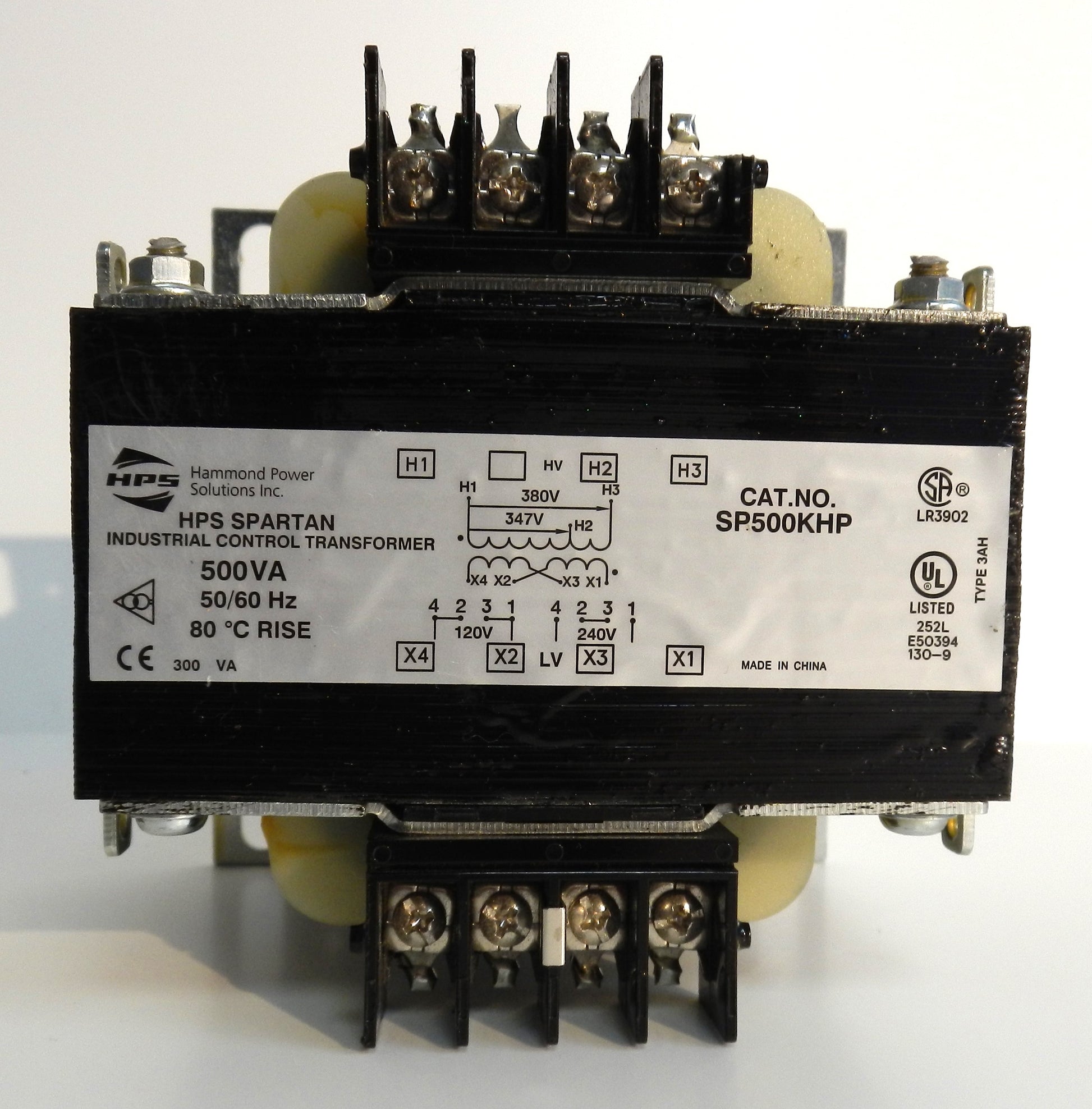

SP500KHP HPS Hammond Power Solutions 500VA Control Transformer 380/347V to 120/240V 1-Phase Open Type

Description:

• Genuine Hammond Power Solutions (HPS) Spartan® industrial control transformer
• Rated at 500 VA for dependable power conversion in industrial control circuits
• Primary Voltage: 380/347 VAC
• Secondary Voltage: 120/240 VAC
• Designed for single-phase industrial control, HVAC, automation, lighting, signaling, and motor control applications
• Open core and coil construction provides an economical solution for general-purpose and light-duty loads
• Copper windings deliver reliable performance and long service life
• Panel-mounted design with screw terminal connections for easy installation
• Class B (130°C) insulation system with 80°C temperature rise
• Ideal for control panels, OEM equipment, industrial machinery, security systems, and automation systems

Specifications:

• Manufacturer Name: Hammond Power Solutions (HPS)
• Part Number (MPN): SP500KHP
• Product Series: HPS Spartan®
• Product Type: Industrial Control Transformer
• Power Rating: 500 VA
• Phase: Single Phase
• Primary Voltage: 347/380 VAC
• Secondary Voltage: 120/240 VAC
• Output Current:
  • 4.17 A @ 120 VAC
  • 2.08 A @ 240 VAC
• Frequency: 50/60 Hz
• Enclosure Type: Open Core & Coil
• Mounting Type: Panel Mount
• Terminal Type: Screw Terminals
• Winding Material: Copper
• Insulation Class: Class B (130°C)
• Temperature Rise: 80°C (176°F)
• Applications:
  • Industrial Control Panels
  • HVAC Systems
  • Motor Control Circuits
  • Signal & Alarm Systems
  • OEM Equipment
  • Factory Automation
  • Machine Control

Dimensions:

• Height: 4.49 in (114 mm)
• Width: 3.78 in (96 mm)
• Depth: 4.69 in (119 mm)

Weight:

• Approximate Weight: 5.0 kg (11.1 lb).
