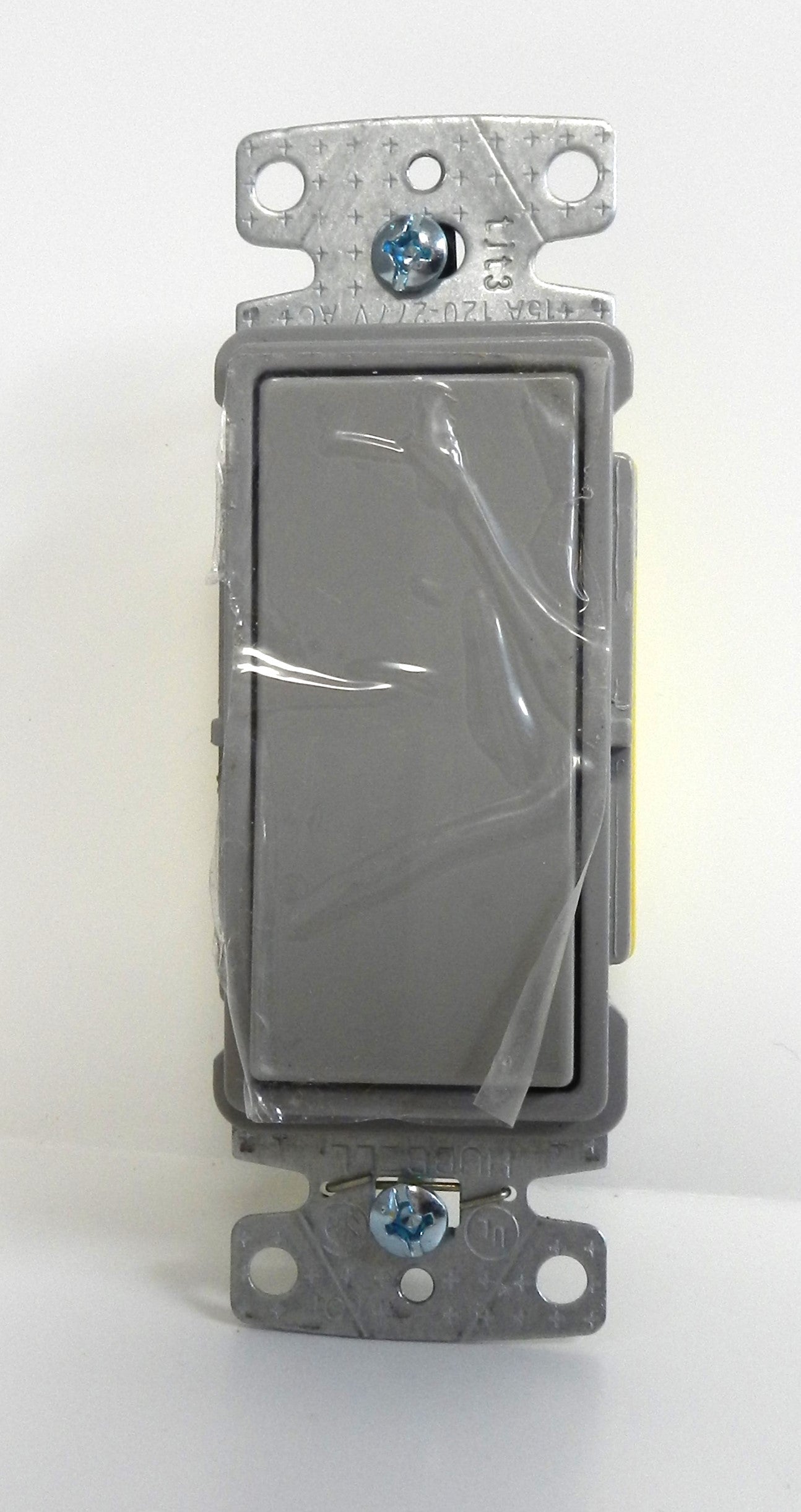

RSD115GY Hubbell Decorator Rocker Switch Gray 15A Single-Pole 120/277VAC Residential Grade

Description:

• Genuine Hubbell Wiring Device-Kellems TradeSelect decorator rocker switch for residential and light commercial applications
• Single-pole switch rated for 15 Amps, 120/277 VAC
• Smooth, quiet rocker operation with modern decorator styling
• Attractive gray finish complements contemporary electrical installations
• Residential-grade switch designed for general-purpose AC lighting and load control

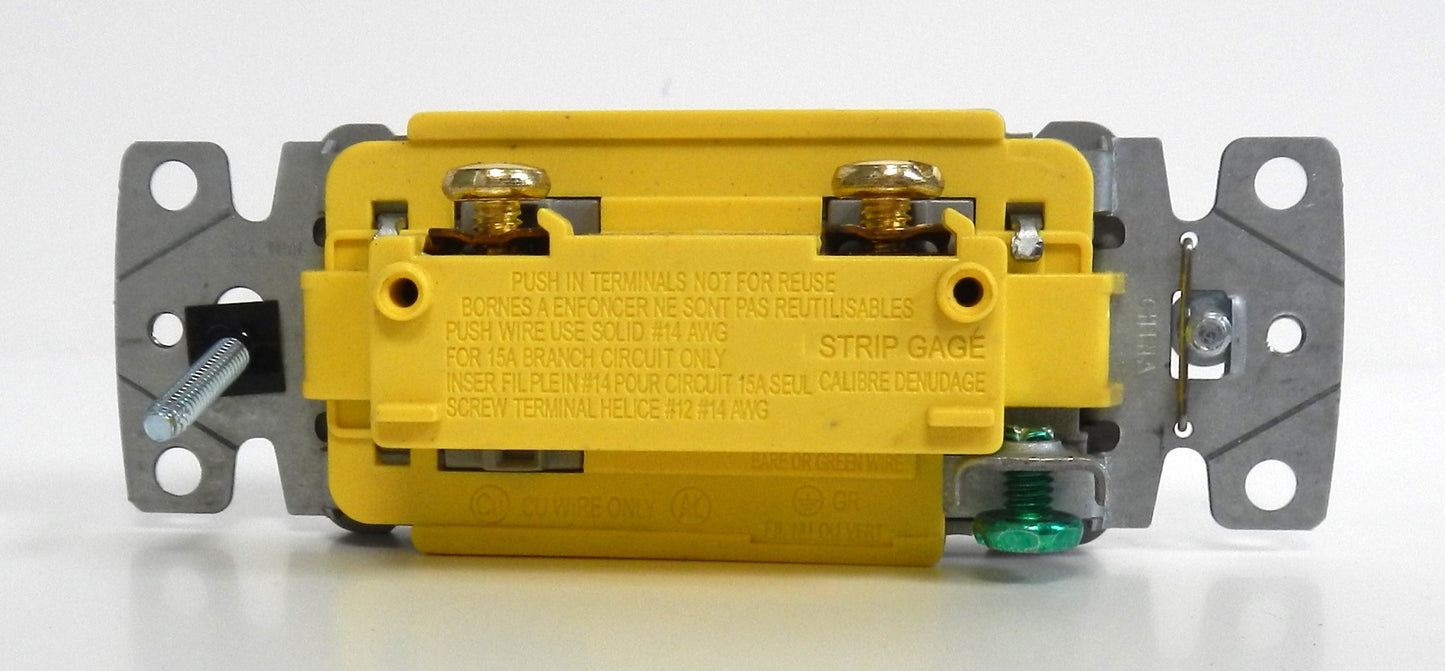

• Supports push-back and side wiring for quick and flexible installation
• Self-grounding feature simplifies installation in properly grounded metal electrical boxes
• Ultrasonically welded housing provides added durability and long service life
• Ideal for lighting circuits in homes, apartments, offices, schools, retail spaces, and commercial buildings
• UL Listed and CSA Certified for safe and reliable performance.

Specifications:

• Manufacturer Name: Hubbell Wiring Device-Kellems
• Part Number (MPN): RSD115GY
• Product Series: TradeSelect®
• Product Type: Decorator Rocker Switch
• Switch Type: Single-Pole
• Grade: Residential
• Color: Gray
• Current Rating: 15 A
• Voltage Rating: 120/277 VAC
• Frequency: 50/60 Hz
• Wiring Method:
  • Push-Back Wire
  • Side Wire
• Terminal Wire Size:
  • #14 AWG Solid (Push Wire)
  • #14 to #12 AWG Solid or Stranded Copper (Side Wire)
• Mounting: Standard Wall Box
• Self-Grounding: Yes
• Housing Material: PVC
• Rocker Material: Polycarbonate
• Contact Material: Copper Alloy
• Mounting Strap: Galvanized Steel
• Terminal Material: Brass
• Operating Temperature:
  • Maximum: 60°C
  • Minimum: -20°C
• Standards:
  • UL 20 Listed
  • CSA Certified
  • RoHS Compliant
• Applications:
  • Residential Lighting
  • Commercial Lighting
  • Offices
  • Schools
  • Retail Stores
  • General Electrical Installations

Dimensions:

• Standard decorator switch form factor
• Fits standard single-gang electrical wall boxes and decorator wall plates.

Weight:

• Approximate Weight: 0.09 kg (0.20 lb).
