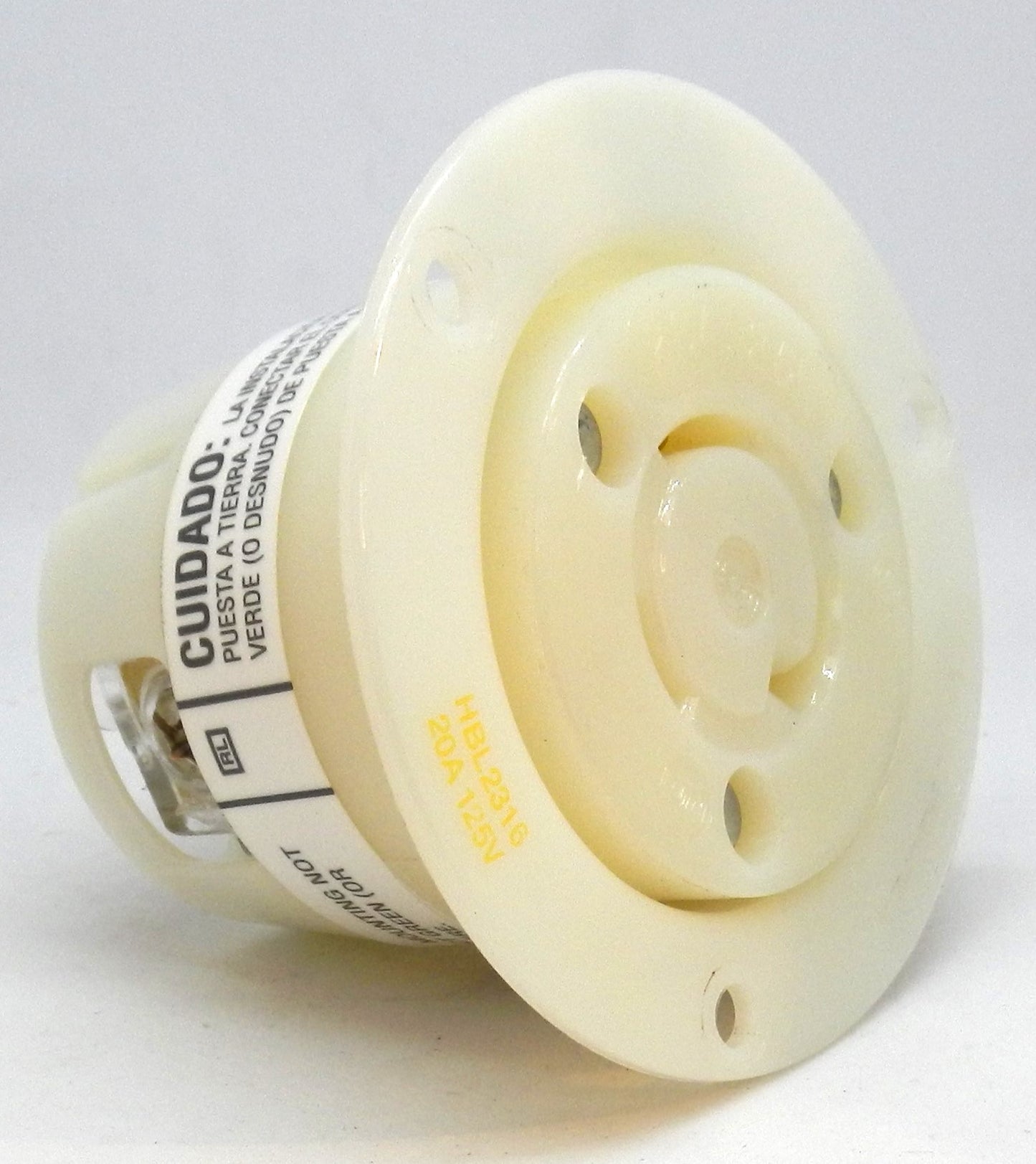

HBL2316 Hubbell Twist-Lock® 20A 125V Flanged Receptacle NEMA L5-20R 2-Pole 3-Wire

Description:

• Genuine Hubbell Wiring Device-Kellems industrial Twist-Lock® flanged receptacle
• Rated for 20A, 125VAC single-phase power distribution applications
• NEMA L5-20R locking configuration provides a secure, vibration-resistant electrical connection
• 2-Pole, 3-Wire Grounding design for reliable and safe operation
• Heavy-duty Insulgrip® nylon housing offers excellent impact resistance and durability
• Back-wired screw terminals simplify installation and maintenance
• Accepts #16 AWG to #8 AWG solid or stranded copper conductors
• Ideal for generators, industrial equipment, machine tools, construction sites, marine applications, and commercial power distribution
• UL and CSA listed for dependable industrial performance.

Specifications:

• Manufacturer Name: Hubbell Wiring Device-Kellems
• Part Number (MPN): HBL2316
• Product Series: Twist-Lock® Insulgrip®
• Product Type: Flanged Receptacle
• NEMA Configuration: L5-20R
• Current Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3-Wire Grounding
• Phase: Single Phase
• Maximum Horsepower: 1 HP
• Terminal Type: Back-Wired Screw Terminals
• Wire Size: #16 AWG to #8 AWG Copper
• Housing Material: Nylon
• Contact Material: Brass
• Mounting Type: Screw Mount Flange
• Dielectric Strength: 2,000 V Minimum
• Operating Temperature:
  • Maximum: 75°C
  • Minimum: -40°C
• Certifications:
  • UL 498 Listed
  • CSA C22.2 No. 42
  • Fed. Spec. W-C-596
• Applications:
  • Industrial Equipment
  • Generator Connections
  • Manufacturing
  • Construction Power
  • Marine Applications
  • Commercial Electrical Systems

Dimensions:

• Length: 2.88 in (73.2 mm)
• Width: 2.88 in (73.2 mm)
• Height: 2.09 in (53.1 mm)

Weight:

• Approximate Weight: 0.25 lb (0.11 kg).
