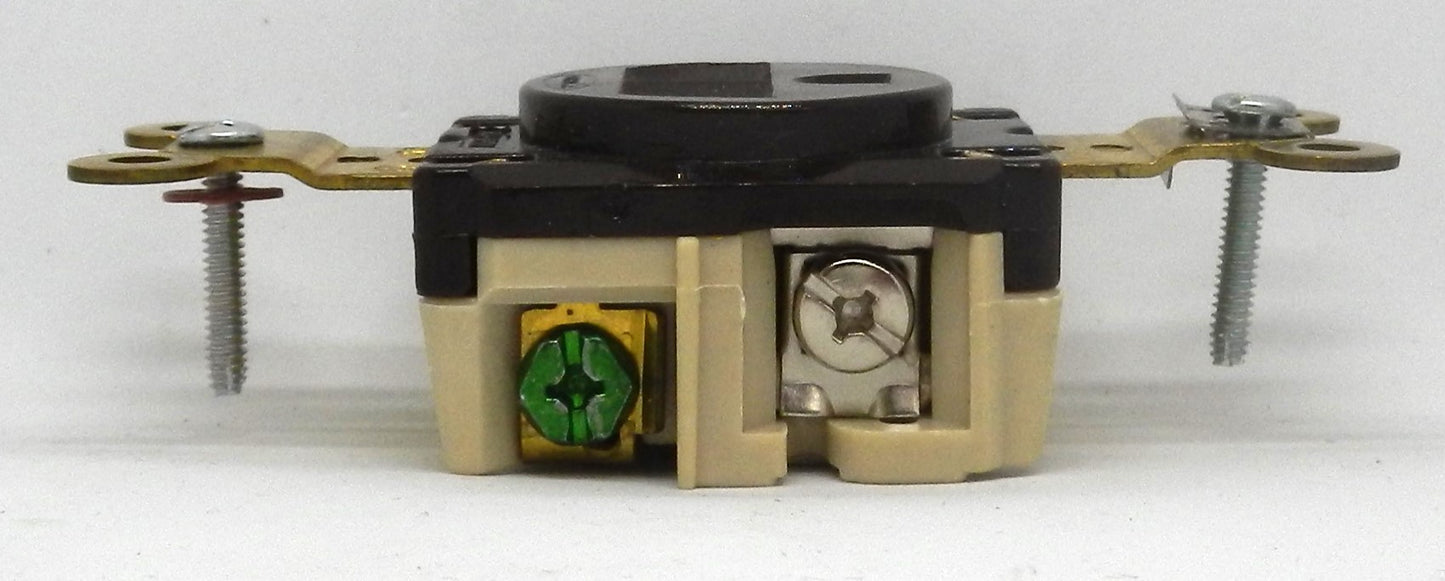

HBL5261 Hubbell 15A 125V Single Receptacle 5-15R Industrial Grade NEMA 5-15R Brown

Description:

• Genuine Hubbell Wiring Device-Kellems industrial-grade single receptacle for commercial and industrial electrical installations
• Rated for 15 Amp, 125 VAC applications with NEMA 5-15R configuration
• 2-Pole, 3-Wire Grounding design provides safe and reliable power connections
• Extra heavy-duty specification-grade construction for long service life in demanding environments
• Back and side wiring terminals allow flexible installation
• Features a self-grounding stainless steel clip for improved grounding reliability
• One-piece brass grounding strap and bypass contact design ensure superior electrical performance and durability
• High-impact nylon face and PBT base resist wear, impact, and harsh industrial conditions
• Ideal for industrial facilities, commercial buildings, workshops, manufacturing plants, hospitals, schools, and OEM equipment
• UL Listed and CSA Certified for dependable performance and code compliance.

Specifications:

• Manufacturer Name: Hubbell Wiring Device-Kellems
• Part Number (MPN): HBL5261
• Product Type: Single Receptacle
• Receptacle Configuration: NEMA 5-15R
• Number of Poles: 2
• Number of Wires: 3-Wire Grounding
• Current Rating: 15 A
• Voltage Rating: 125 VAC
• Frequency: 50/60 Hz
• Wattage: 1875 W
• Grade: Extra Heavy Duty Specification Grade
• Wiring Method: Back & Side Wired
• Wire Size: #14 AWG to #10 AWG Copper
• Grounding: Self-Grounding
• Mounting Type: Screw Mount
• Face Material: Nylon
• Base Material: PBT
• Ground Contact Material: Brass
• Mounting Strap: Brass
• Operating Temperature:
  • Maximum: 75°C
  • Minimum: -40°C
• Certifications:
  • UL 498 Listed
  • CSA Certified
  • NEMA WD-6 Compliant
  • Fed. Spec. W-C-596
  • RoHS Compliant

Dimensions:

• Length: 3.28 in (83.3 mm)
• Width: 1.63 in (41.4 mm)
• Height: 1.19 in (30.2 mm)

Weight:

• Approximate Weight: 0.20 lb (0.09 kg).
