IG5662 Hubbell Duplex Isolated Ground Receptacle 15A 250V NEMA 6-15R Specification Grade Orange

Description:

• Genuine Hubbell Wiring Device-Kellems specification-grade duplex receptacle for industrial and commercial electrical installations
• Isolated Ground (IG) design helps reduce electrical noise for sensitive electronic equipment
• Rated 15A, 250VAC, 2-Pole, 3-Wire Grounding
• NEMA 6-15R configuration for 250V applications
• Heavy-duty specification-grade construction for long service life in demanding environments

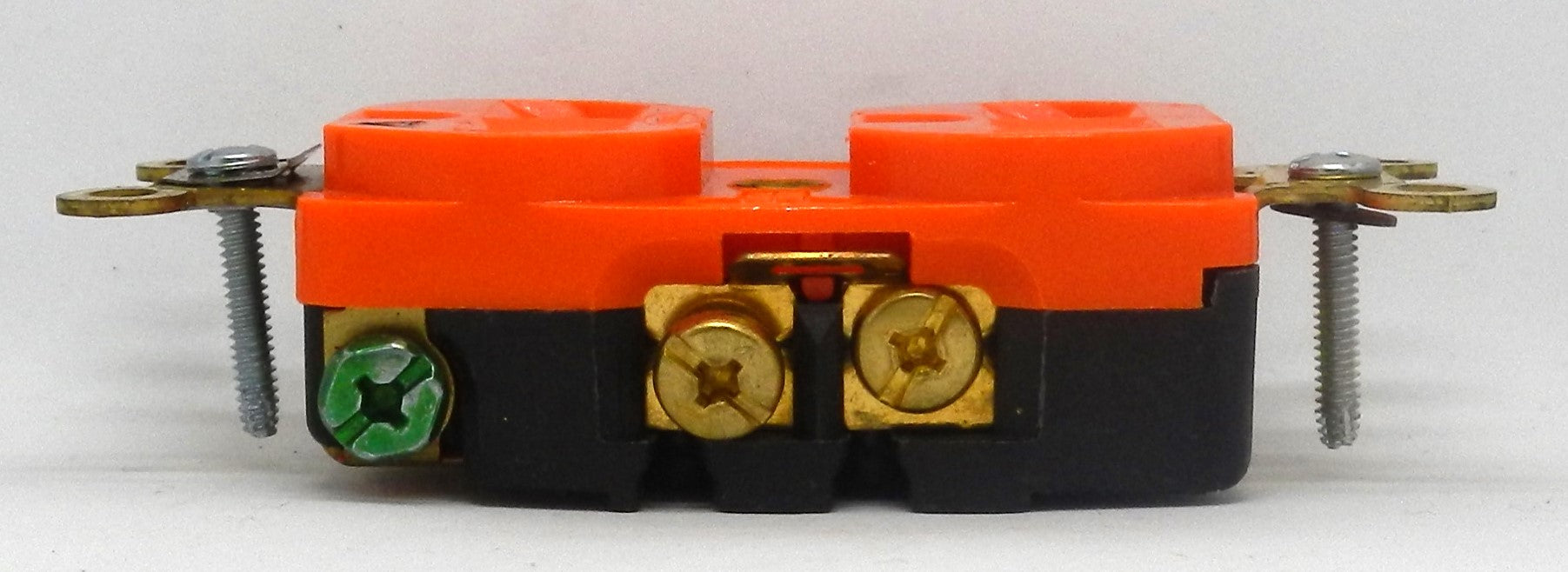

• Back and side wired screw terminals for flexible installation
• Fully insulated design with Finder Groove Face for easy plug alignment

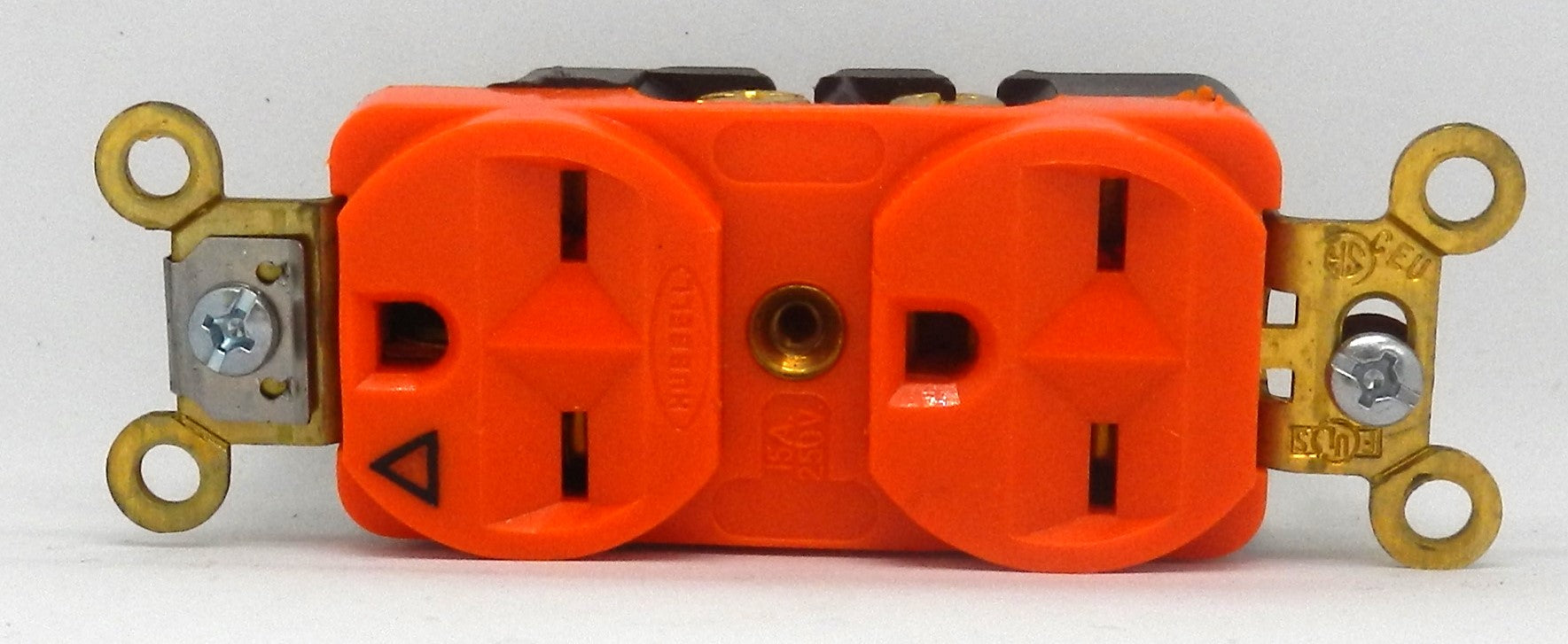

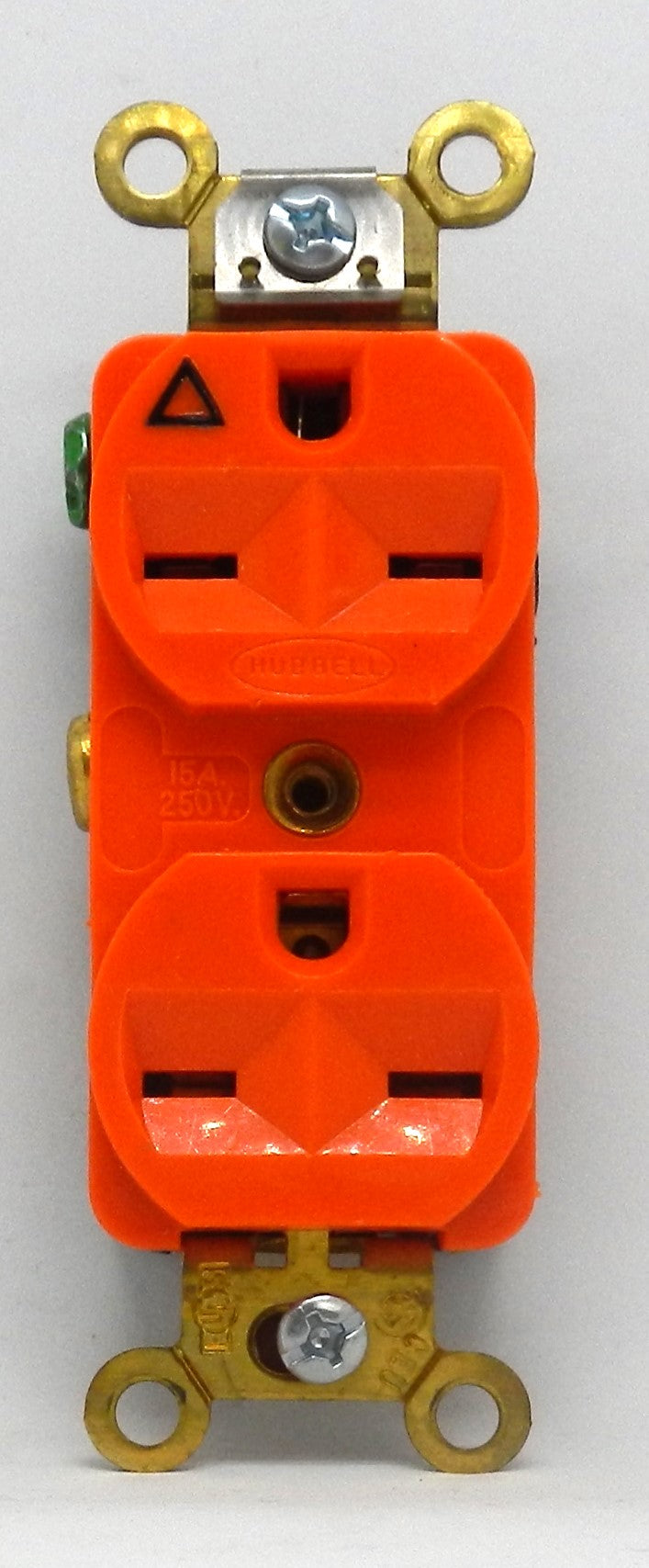

• Orange face with triangle marking identifies isolated ground receptacles
• Ideal for computer rooms, medical facilities, laboratories, industrial automation, control panels, and commercial electrical systems
• Meets UL 498, CSA C22.2 No. 42, and NEMA WD-6 requirements.

Specifications:

• Manufacturer Name: Hubbell Wiring Device-Kellems
• Part Number (MPN): IG5662
• Product Type: Duplex Isolated Ground Receptacle
• Grade: Specification Grade
• Configuration: NEMA 6-15R
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Isolated Ground
• Current Rating: 15 A
• Voltage Rating: 250 VAC
• Wattage: 3750 W
• Phase: Single Phase
• Wiring Method: Back & Side Wired Screw Terminals
• Wire Size: #14 AWG to #10 AWG Copper
• Face Material: Nylon
• Base Material: PBT
• Mounting Strap: Galvanized Steel
• Ground Contacts: Brass
• Mounting Type: Screw Mount
• Operating Temperature:
  • Maximum Continuous: 75°C
  • Minimum: -40°C
• Color: Orange
• Certifications:
  • UL 498 Listed
  • CSA C22.2 No. 42
  • NEMA WD-6 Compliant
  • RoHS Compliant

Dimensions:

• Height: 1.05 in (26.7 mm)
• Width: 1.33 in (33.8 mm)
• Length: 3.28 in (83.3 mm)

Weight:

• Approximate Weight: 0.20 lb (0.09 kg).
