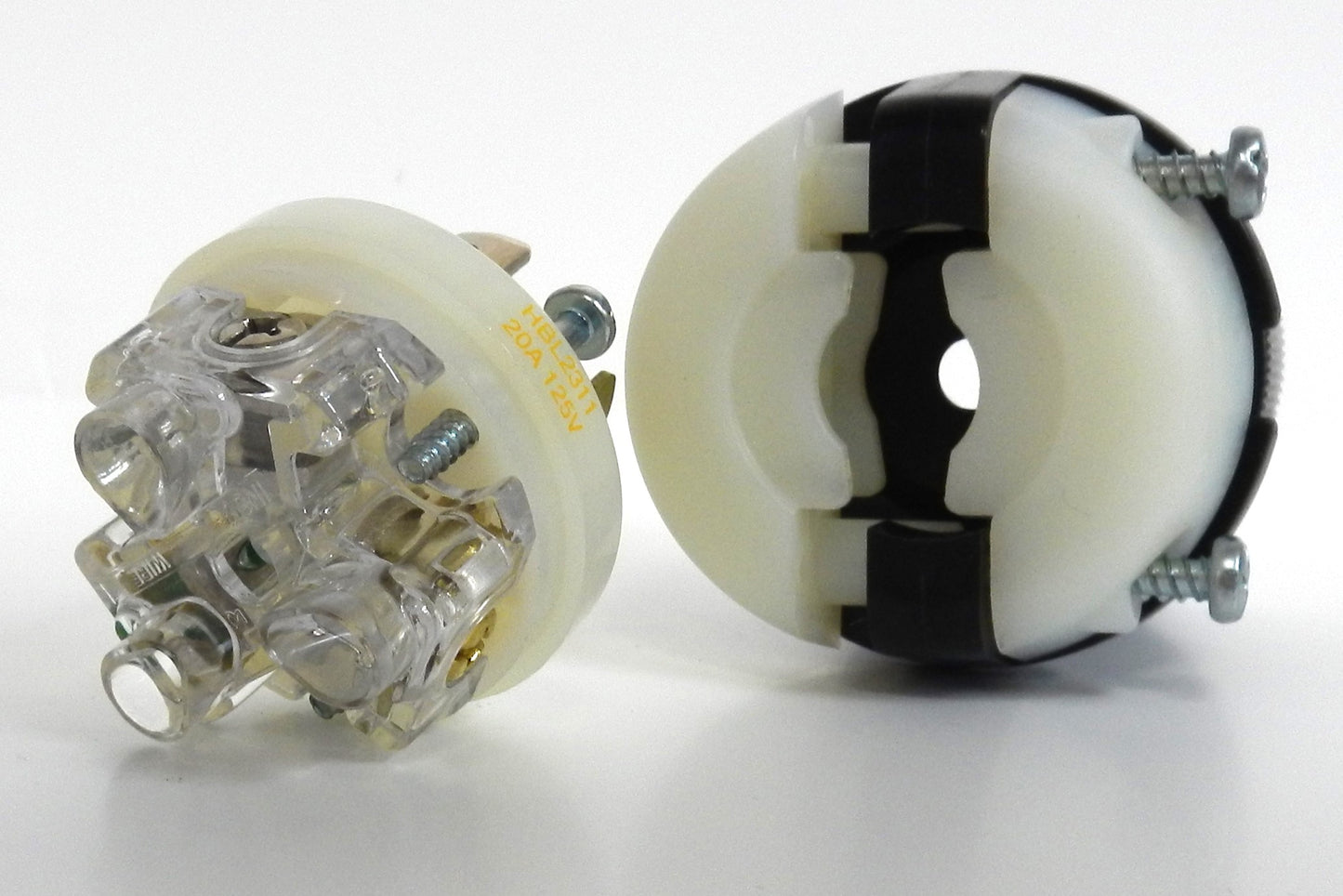

HBL2311 Hubbell Twist-Lock Industrial Male Plug 20A 125V NEMA L5-20P 2-Pole 3-Wire Grounding

Description:

• Genuine Hubbell Wiring Device-Kellems Twist-Lock® industrial male plug for demanding commercial and industrial applications
• Rated for 20 Amp, 125 VAC service
• NEMA L5-20P configuration with 2-pole, 3-wire grounding
• Heavy-duty Insulgrip® nylon housing provides excellent impact, chemical, and abrasion resistance
• Twist-Lock® locking design prevents accidental disconnection caused by vibration or cord movement
• Screw terminal wiring with pressure terminal screws ensures secure electrical connections
• Integral cord grip minimizes strain on internal wiring and improves cable retention
• Funnel-shaped wire entry simplifies installation and wiring
• Built-in dust shield helps protect the wiring chamber from contaminants
• Ideal for generators, portable equipment, industrial machinery, construction sites, manufacturing facilities, and commercial power distribution applications.

Specifications:

• Manufacturer Name: Hubbell Wiring Device-Kellems
• Part Number (MPN): HBL2311
• Product Series: Twist-Lock® Insulgrip®
• Product Type: Industrial Locking Male Plug
• NEMA Configuration: L5-20P
• Number of Poles: 2
• Number of Wires: 3-Wire Grounding
• Rated Current: 20 A
• Rated Voltage: 125 VAC
• Phase: Single Phase
• Maximum Horsepower: 1 HP
• Connection Type: Pressure Screw Terminals
• Wire Size: #16 AWG to #8 AWG Copper
• Cable Diameter Range: 0.360–0.930 in (9–24 mm)
• Housing Material: Nylon
• Blade Material: Brass
• Mounting Type: Cord Mounted
• Dielectric Strength: 2,000 V Minimum
• Operating Temperature:
  • Maximum Continuous: 75°C
  • Minimum: -40°C
• Environmental Rating: IP20
• Certifications:
  • UL 498 Listed
  • CSA C22.2 No. 42
  • Fed. Spec. W-C-596
  • RoHS Compliant

Dimensions:

• Length: 2.26 in (57.4 mm)
• Width: 2.26 in (57.4 mm)
• Height: 2.75 in (69.9 mm)

Weight:

• Approximate Weight: 0.11 kg (0.25 lb).
