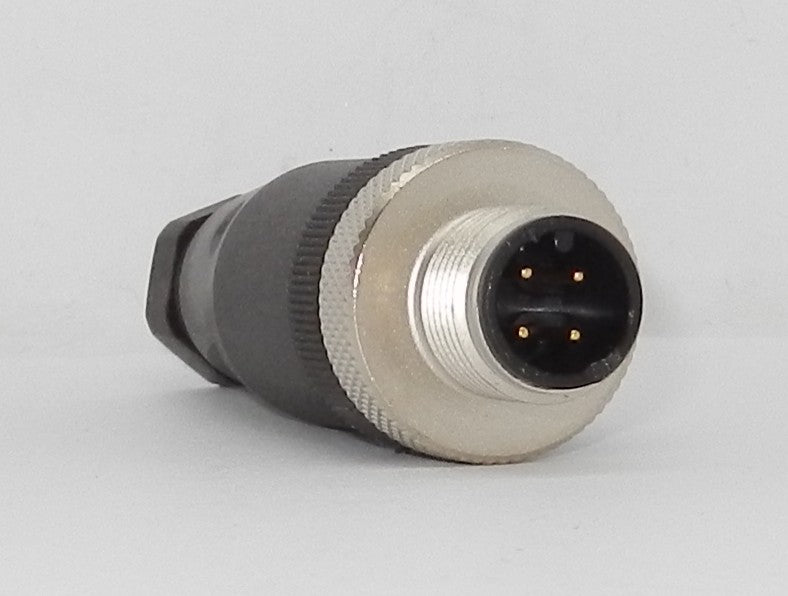

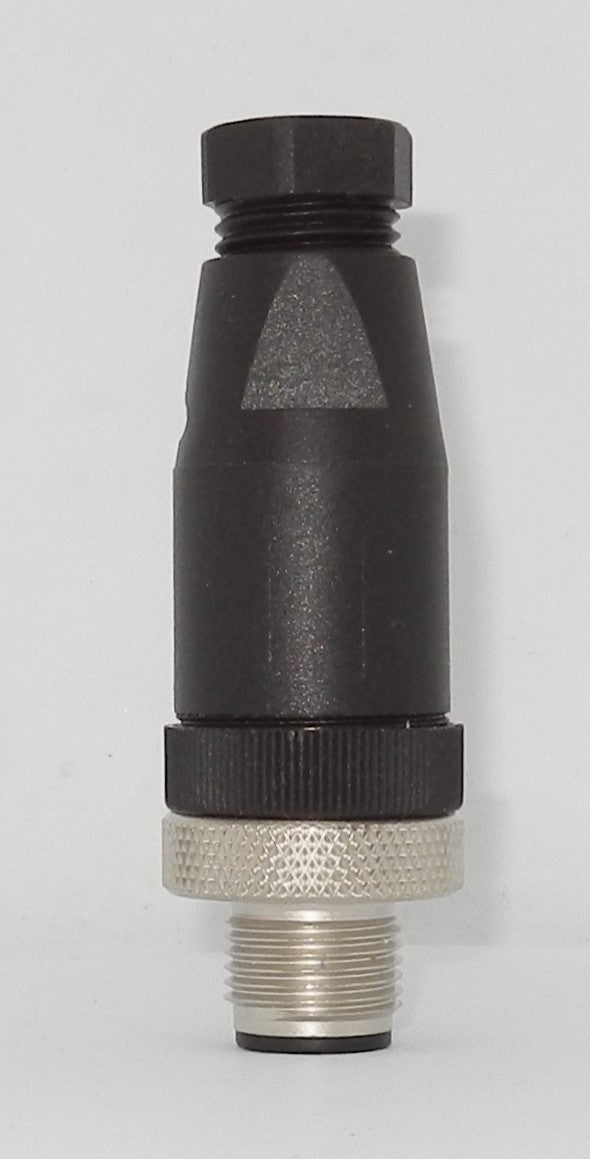

E11504 IFM Electronic M12 Male Field Wireable Connector 4-Pin A-Coded Straight IP68

Description:

• IFM Electronic field wireable connector designed for industrial sensor and actuator applications
• Features a 4-pin M12 male connector with A-coded pin configuration
• Straight connector design for easy installation in industrial automation systems
• Screw terminal connection allows fast and secure field wiring without special tools
• Gold-plated contacts provide excellent conductivity and corrosion resistance
• Nickel-plated brass coupling nut ensures secure, vibration-resistant connections
• Rugged PA housing is free from silicone and halogen for demanding industrial environments
• IP68 protection rating when properly assembled and mated
• Suitable for proximity sensors, photoelectric sensors, encoders, PLC I/O modules, robotics, packaging equipment, and machine automation
• Discontinued by IFM; recommended replacement is EVC812.

Specifications:

• Manufacturer Name: IFM Electronic
• Part Number (MPN): E11504
• Product Type: Field Wireable Connector
• Connector Type: M12 Male Plug
• Coding: A-Coded
• Number of Positions: 4 Pin
• Orientation: Straight
• Connection Method: Screw Terminals
• Mounting Type: Cable Mount
• Rated Voltage: 45 VAC / 70 VDC
• Rated Current: 4 A
• Cable Diameter: 4–6 mm
• Conductor Size: Up to 0.75 mm²
• Contact Material: Gold-Plated
• Housing Material: PA (Polyamide)
• Coupling Nut Material: Brass, Nickel-Plated
• Protection Rating: IP68
• Operating Temperature: -25°C to +85°C
• Application: Industrial Sensors, Actuators, PLC Systems, Factory Automation, and Process Control.

Dimensions:

• Connector Size: M12 × 1
• Straight cable outlet
• Cable diameter range: 4–6 mm
• Compact field-wireable industrial design.

Weight:

• Approximate Weight: 0.025 kg (0.055 lb).
