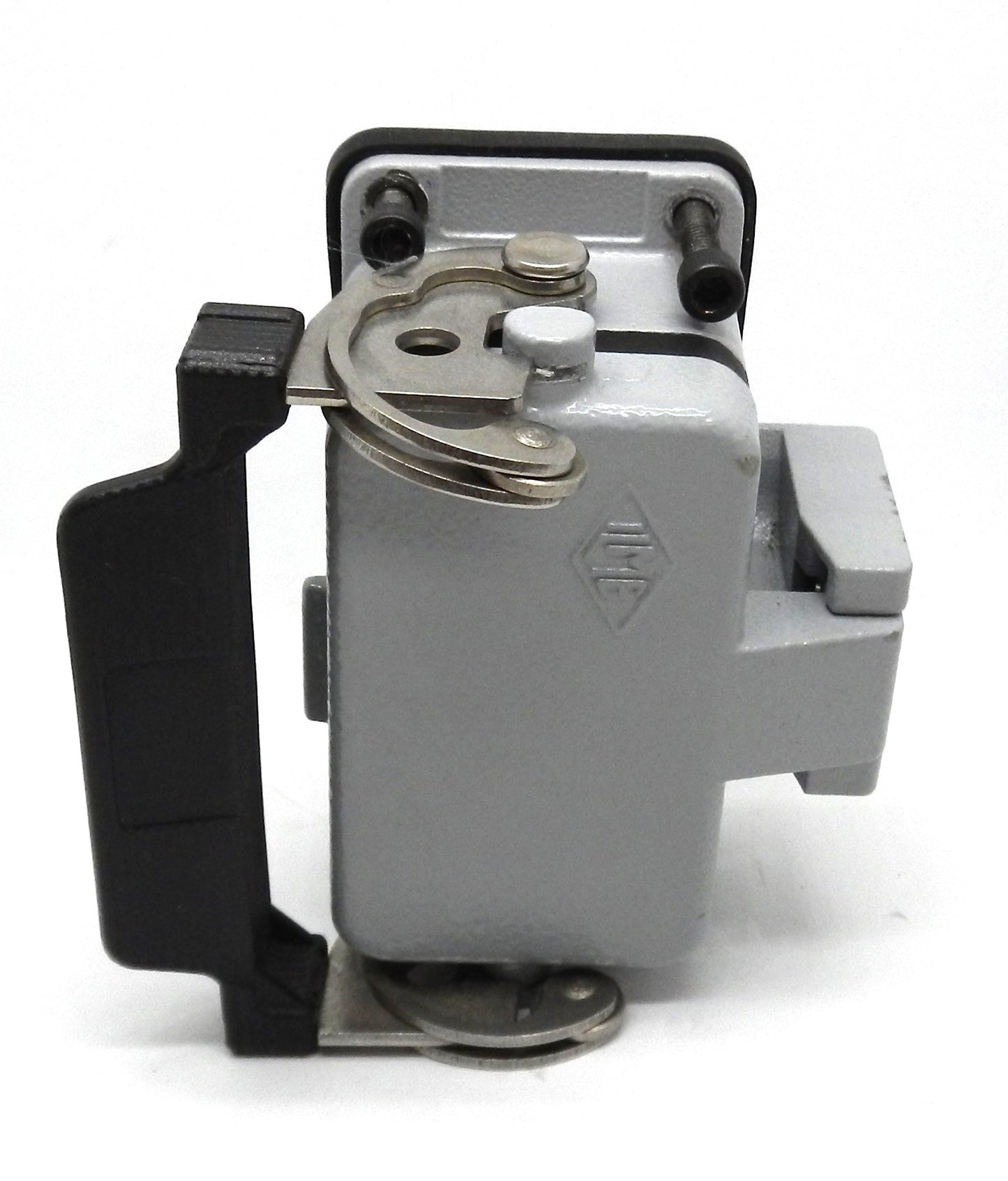

CHI-10LS ILME Panel Mount Housing with Metal Cover Size 57.27 Single Lever IP65 Heavy Duty Connector Enclosure

Description:

• Genuine ILME heavy-duty bulkhead panel mount housing for industrial rectangular connectors
• Designed for Size 57.27 ILME inserts and compatible heavy-duty connector systems
• Features a durable metal protective cover with single stainless steel locking lever
• Rugged die-cast aluminum housing with epoxy-coated finish for long service life
• Panel (bulkhead) mounting design for industrial control panels and machinery
• IP65 protection rating when properly mated, providing protection against dust and water ingress
• NBR sealing gasket ensures reliable environmental protection
• Operating temperature range from -40°C to +125°C
• Ideal for industrial automation, robotics, machine tools, power distribution, packaging equipment, and OEM machinery
• Manufactured by ILME for dependable heavy-duty industrial connector applications.

Specifications:

• Manufacturer Name: ILME
• Part Number (MPN): CHI-10LS
• Product Series: C-TYPE
• Product Type: Panel Mount Housing
• Housing Style: Bulkhead Mount
• Enclosure Size: 57.27
• Mounting Type: Panel / Bulkhead Mount
• Closing Type: Single Lever
• Cover Type: Metal Protective Cover
• Cable Entry: None
• Housing Material: Die-Cast Aluminum
• Lever Material: Stainless Steel with Polyamide
• Gasket Material: NBR
• Color: RAL 7040 Grey
• Protection Rating: IP65
• Operating Temperature: -40°C to +125°C
• Certifications: DNV, BV, UL (ECBT2), cUL (ECBT8)
• RoHS Compliant: Yes
• REACH Compliant: Yes
• Application: Heavy-Duty Industrial Connectors, PLC Systems, Machine Automation, Robotics, Industrial Control Panels, OEM Equipment.

Dimensions:

• Connector Size: 57.27
• Standard bulkhead housing compatible with ILME Size 57.27 inserts
• Compact panel-mount design with integrated metal cover.

Weight:

• Approximate Weight: 172 g (0.38 lb).
