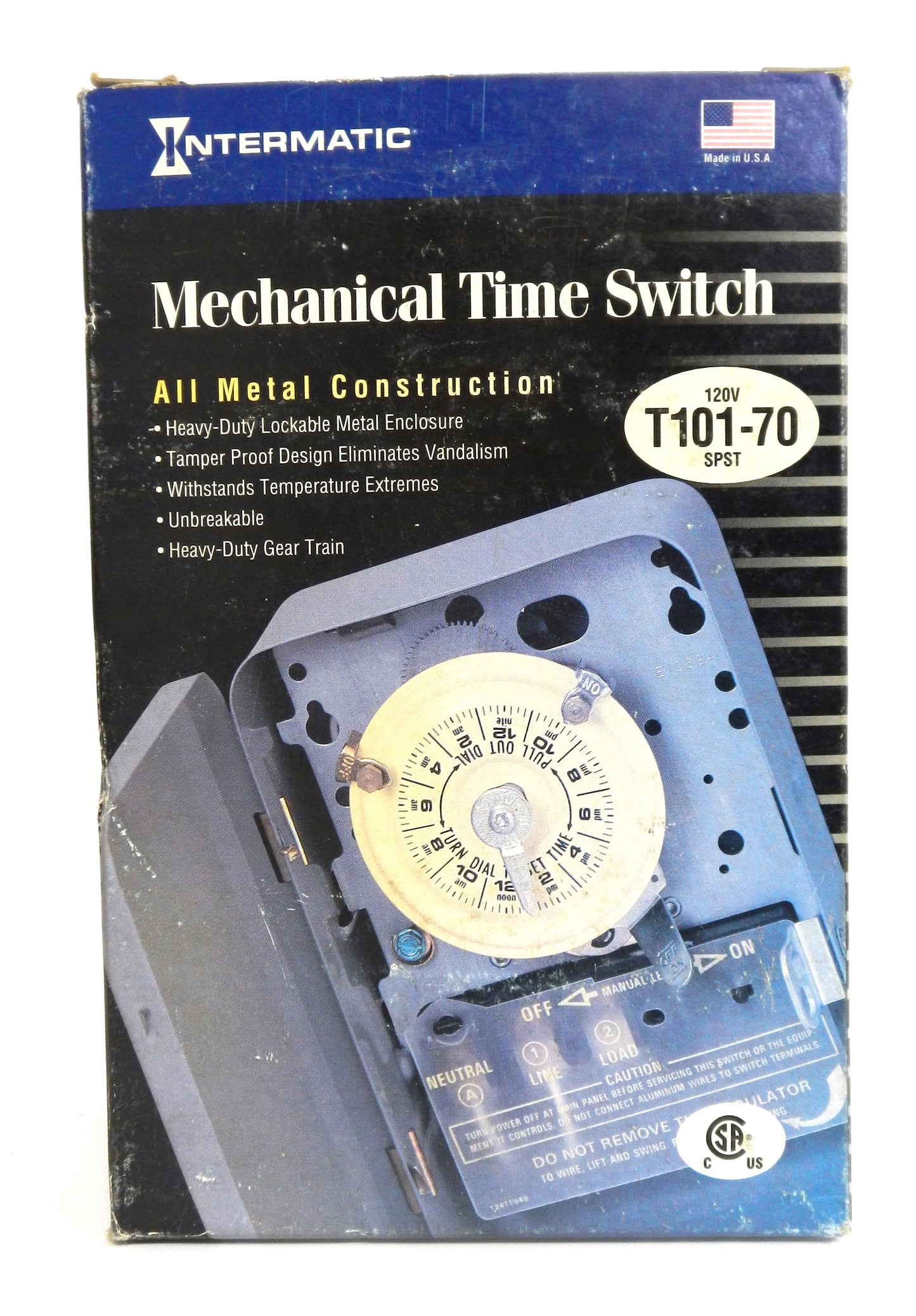

T101-70 Intermatic 24-Hour Mechanical Timer Switch 120VAC SPST 40A Indoor Metal Enclosure

Description:

• Genuine Intermatic heavy-duty 24-hour mechanical timer switch for automatic scheduling of electrical loads
• Designed for 120 VAC, 60 Hz operation with Single-Pole Single-Throw (SPST) switching
• Rated for 40 Amp resistive and tungsten lighting loads and 2 HP motor loads
• Programmable for up to 12 ON/OFF operations per day with 1-hour minimum intervals
• Manual override lever allows immediate ON/OFF control without changing the programmed schedule
• Includes one ON tripper and one OFF tripper for easy daily scheduling
• Rugged Type 1 indoor metal enclosure for reliable operation in industrial, commercial, and residential installations
• Ideal for lighting systems, pumps, fans, heaters, signage, HVAC equipment, and general electrical load control
• Part of the trusted Intermatic T100 Series, known for long service life and dependable mechanical operation.

Specifications:

• Manufacturer Name: Intermatic
• Part Number (MPN): T101-70
• Base Model: T101
• Product Type: Mechanical Timer Switch
• Operation Mode: 24-Hour Mechanical
• Switch Type: SPST (Single-Pole Single-Throw)
• Input Voltage: 120 VAC
• Frequency: 60 Hz
• Current Rating:
  • 40 A Resistive
  • 40 A Tungsten
  • 16 A Electronic Ballast / LED
• Motor Rating: 2 HP @ 120 VAC
• Pilot Duty Rating: 1000 VA @ 120 VAC
• Number of Circuits: 1
• Programming:
  • Up to 12 ON events
  • Up to 12 OFF events
• Minimum Switching Interval: 1 Hour
• Manual Override: Yes
• Enclosure Type: Type 1 Indoor Metal
• Wiring Capacity:
  • #14 AWG to #8 AWG
• Mounting: Surface Mount
• Certifications:
  • cULus Listed
  • cCSAus
• Country of Origin: Mexico

Dimensions:

• Height: 7.88 in (200 mm)
• Width: 5.13 in (130 mm)
• Depth: 3.44 in (87 mm)

Weight:

• Approximate Weight: 1.24 kg (2.74 lb).
