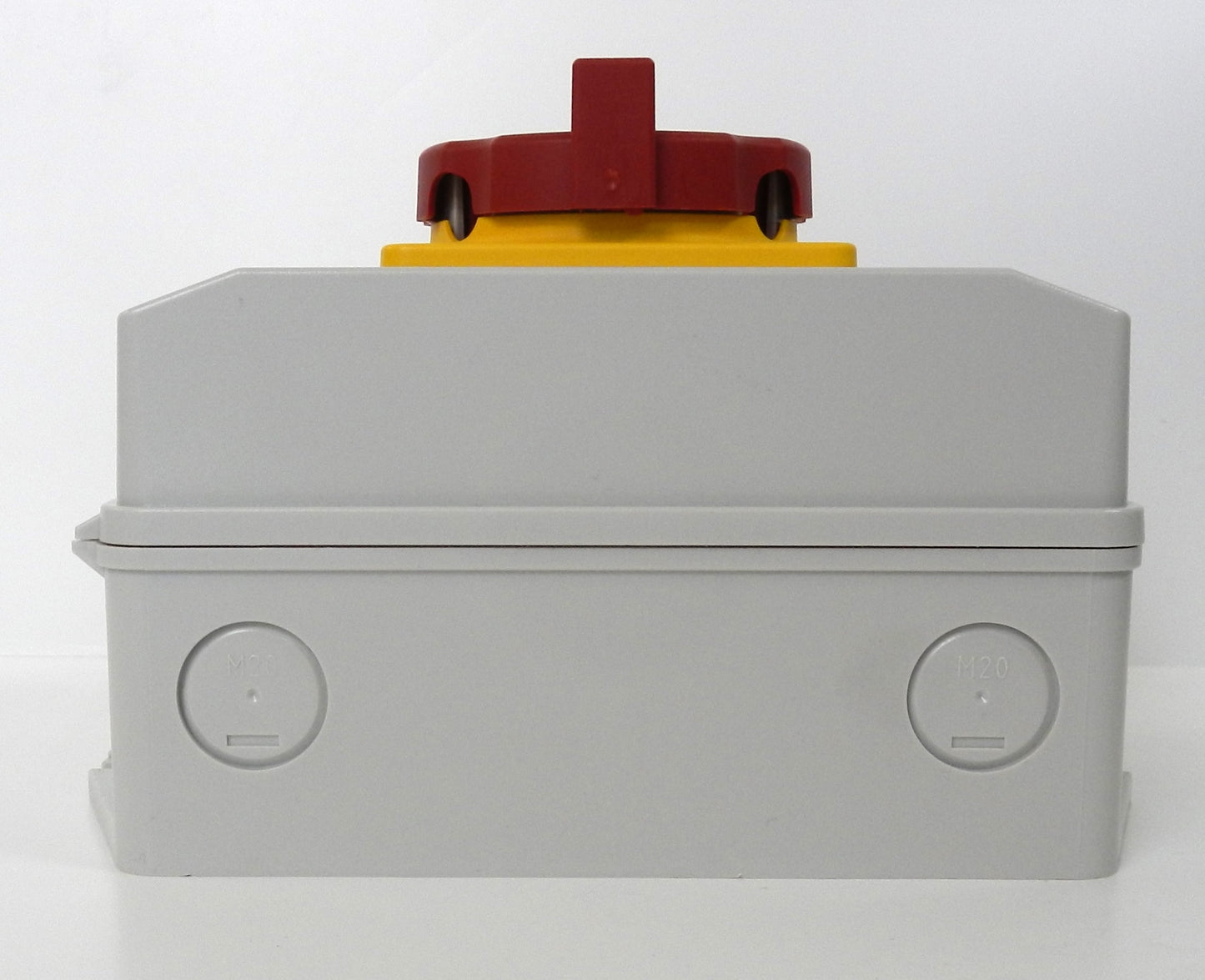

LBS-RLO16/3PM-D1/Z33 GB ITC Enclosed Disconnect Switch 16A 3-Pole 600VAC IP65 Non-Metallic Enclosure

Description:

• Genuine ITC Electrical Components enclosed disconnect switch for industrial power isolation and motor disconnect applications
• Rated 16 Amps, 3-Pole, suitable for safely isolating three-phase electrical circuits
• Rated for 600 VAC operation with horsepower ratings up to 10 HP @ 240V, 10 HP @ 480V, and 10 HP @ 600V
• Factory-mounted in a durable non-metallic D1 enclosure with IP65, Type 1, 4X, and 12 protection for harsh industrial environments
• Features a red/yellow padlockable rotary handle to prevent unauthorized operation and improve personnel safety
• CSA and UL approved for industrial control and motor disconnect applications
• Designed for panel builders, OEM machinery, motor control centers, HVAC systems, and industrial automation
• Compact enclosure with multiple cable knockouts for quick installation and wiring
• Ideal for machine isolation, lockout/tagout procedures, and local motor disconnect applications.

Specifications:

• Manufacturer Name: ITC Electrical Components
• Part Number (MPN): LBS-RLO16/3PM-D1/Z33 GB
• Product Type: Enclosed Disconnect Switch
• Switch Type: Load Break Switch
• Rated Current: 16 A
• Number of Poles: 3
• Rated Voltage: 600 VAC
• Enclosure Type: D1 Non-Metallic
• Enclosure Protection:
  • IP65
  • Type 1
  • Type 4X
  • Type 12
• Handle Type: Red/Yellow Padlockable Rotary Handle
• Cable Knockouts:
  • 4 × M25
  • 2 × M20
• Motor Horsepower Ratings:
  • 10 HP @ 240 VAC (3-Phase)
  • 10 HP @ 480 VAC (3-Phase)
  • 10 HP @ 600 VAC (3-Phase)
• Approvals:
  • UL
  • CSA
• Applications:
  • Motor Disconnect
  • Industrial Control Panels
  • HVAC Equipment
  • OEM Machinery
  • Industrial Automation
  • Lockout/Tagout Safety
  • Electrical Isolation Switches

Dimensions:

• Height (A): 66 mm
• Width (C): 100 mm
• Depth (F): 140 mm
• Mounting Length (L): 81 mm

Weight:

• Approximate Weight: 0.90 kg (1.98 lb) (typical for D1 enclosed 16A disconnect switch
