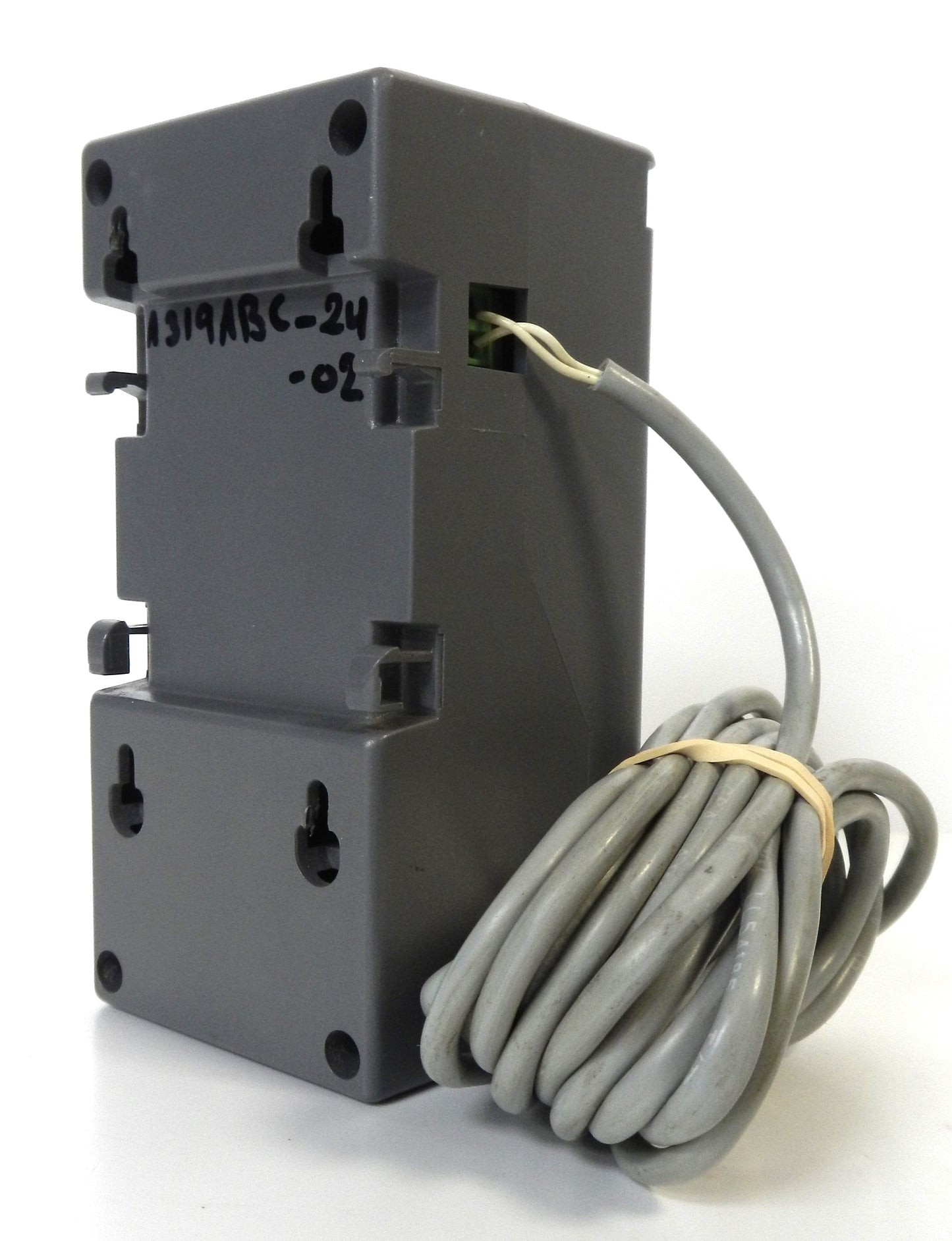

A319ABC-24-02 Johnson Controls A319 Electronic Temperature Controller SPDT -20°F to 100°F Without Sensor

Description:

• Genuine Johnson Controls PENN A319 Series electronic temperature controller for commercial and industrial HVAC and refrigeration applications
• Single-stage electronic temperature controller with SPDT relay output
• Operating temperature control range of -20°F to 100°F (-29°C to 38°C)
• Supplied without a temperature sensor, allowing the use of compatible interchangeable A99/TE series sensors
• Field-selectable heating or cooling operating modes
• Adjustable setpoint and 1 to 30°F (0.6 to 17°C) differential for precise temperature control
• Operates directly from 120 VAC or 208/240 VAC without requiring a separate control transformer
• LED status indicator displays relay output status
• NEMA 1 high-impact plastic enclosure suitable for surface or DIN rail mounting
• Ideal for refrigeration equipment, beverage coolers, condenser fan cycling, boiler control, cooling towers, HVAC systems, and process temperature control
• Discontinued by Johnson Controls; commonly used for replacement and maintenance of existing installations.

Specifications:

• Manufacturer Name: Johnson Controls
• Part Number (MPN): A319ABC-24-02
• Product Series: A319
• Product Type: Electronic Temperature Controller
• Control Type: Single-Stage Electronic Temperature Control
• Relay Output: SPDT
• Temperature Range: -20°F to 100°F (-29°C to 38°C)
• Differential Adjustment: 1 to 30°F (0.6 to 17°C)
• Sensor Included: No
• Compatible Sensors:
  • TE-6300 Series Thermistor Sensors
  • A99 Series Sensors
• Input Voltage: 120 VAC or 208/240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 1.8 VA
• Relay Ratings:
  • 1 HP @ 120 VAC
  • 1 HP @ 208 VAC
  • 1 HP @ 240 VAC
  • 15A Non-Inductive @ 120 VAC
• Enclosure Rating: NEMA 1
• Mounting:
  • Surface Mount
  • 35 mm DIN Rail
• Operating Temperature: -30°F to 140°F (-34°C to 60°C)
• Humidity: 0–95% RH, Non-Condensing
• Certifications:
  • UL Listed
  • CSA Certified
• Lifecycle Status: Discontinued

Dimensions:

• Height: 120 mm (4.72 in)
• Width: 70 mm (2.75 in)
• Depth: 56 mm (2.20 in)

Weight:

• Approximate Weight: 0.34 kg (0.75 lb).
