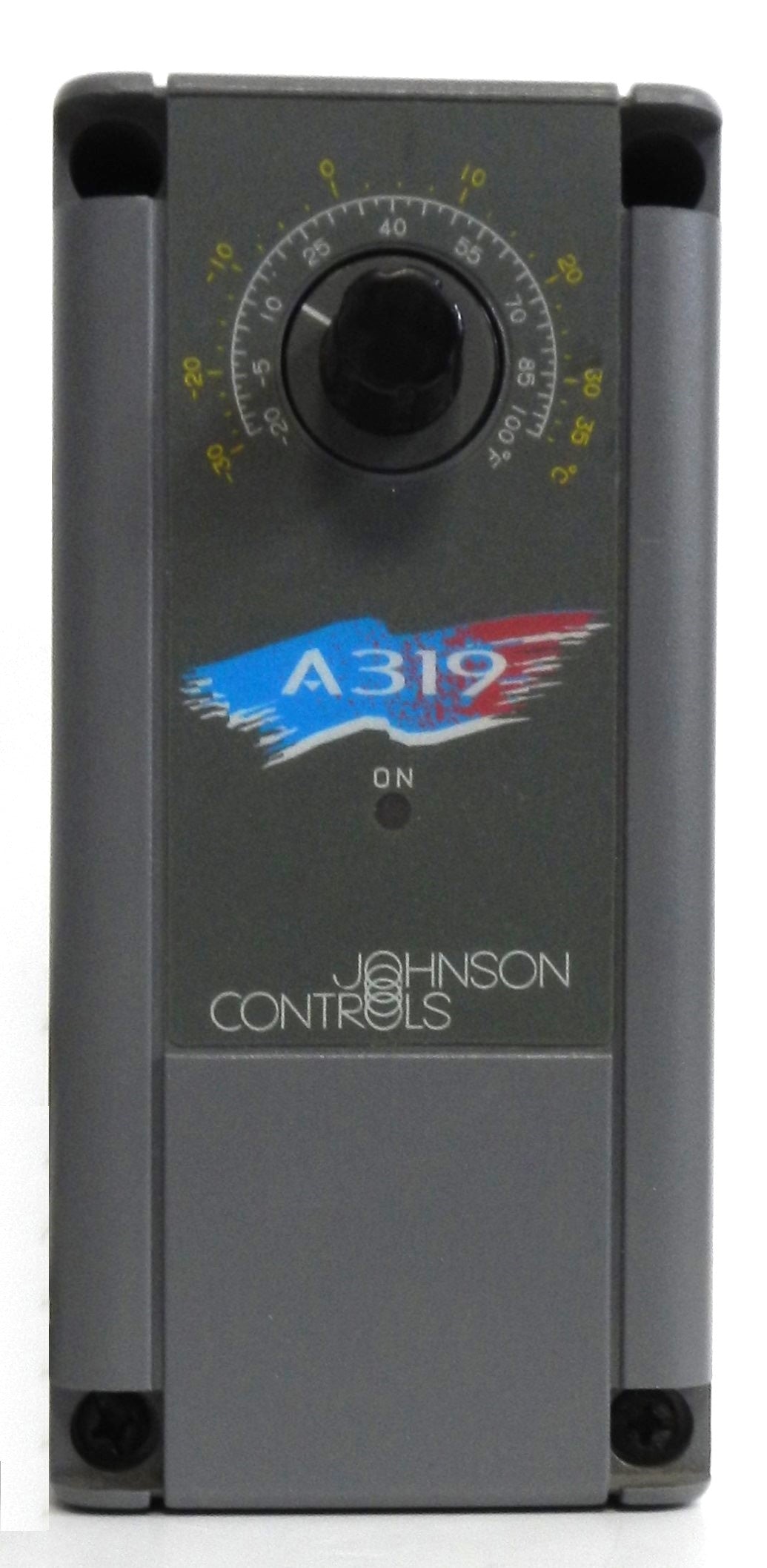

A319ABC-24-02 Johnson Controls Electronic Temperature Controller with Sensor HVAC Line Voltage Control

Description:

• Genuine Johnson Controls PENN A319 electronic temperature controller with remote temperature sensor
• Designed for single-stage heating or cooling control in commercial and industrial HVAC and refrigeration systems
• Includes an interchangeable solid-state thermistor temperature sensor for accurate remote temperature monitoring
• Operating temperature range of -20°F to 100°F (-30°C to 38°C) makes it ideal for refrigeration, HVAC, cooling towers, and process temperature control
• Operates directly from 120 VAC or 208/240 VAC without requiring a separate control transformer
• Features an SPDT relay output, adjustable setpoint, adjustable differential, and field-selectable heating or cooling mode
• LED status indicator provides clear relay operation feedback
• Surface or 35 mm DIN rail mounting for flexible installation
• Ideal for walk-in coolers, beverage coolers, condenser fan cycling, compressor lockout, boiler control, pump control, HVAC equipment, and industrial temperature monitoring
• Discontinued by Johnson Controls; widely used for replacement and maintenance of existing PENN control systems.

Specifications:

• Manufacturer Name: Johnson Controls
• Part Number (MPN): A319ABC-24-02
• Product Series: PENN A319
• Product Type: Electronic Temperature Controller
• Sensor Type: Replaceable NTC Thermistor Sensor
• Temperature Control Range: -20°F to 100°F (-30°C to 38°C)
• Differential Adjustment: 1°F to 30°F (0.5°C to 17°C)
• Input Voltage:
  • 120 VAC
  • 208/240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 1.8 VA
• Relay Type: Single-Pole Double-Throw (SPDT)
• Relay Ratings:
  • 1 HP @ 120 VAC (N.O.)
  • 1 HP @ 208 VAC (N.O.)
  • 1 HP @ 240 VAC (N.O.)
  • 15A Non-Inductive @ 120 VAC
• Mounting:
  • Surface Mount
  • 35 mm DIN Rail
• Enclosure Rating: NEMA 1
• Operating Temperature: -30°F to 140°F (-34°C to 60°C)
• Ambient Humidity: 0–95% RH, Non-Condensing
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • HVAC Systems
  • Refrigeration Equipment
  • Walk-In Coolers
  • Beverage Coolers
  • Condenser Fan Cycling
  • Boiler Control
  • Pump Control
  • Industrial Temperature Monitoring

Dimensions:

• Height: 120 mm (4.72 in)
• Width: 70 mm (2.76 in)
• Depth: 56 mm (2.20 in)

Weight:

• Approximate Weight: 0.36 kg (0.79 lb).
