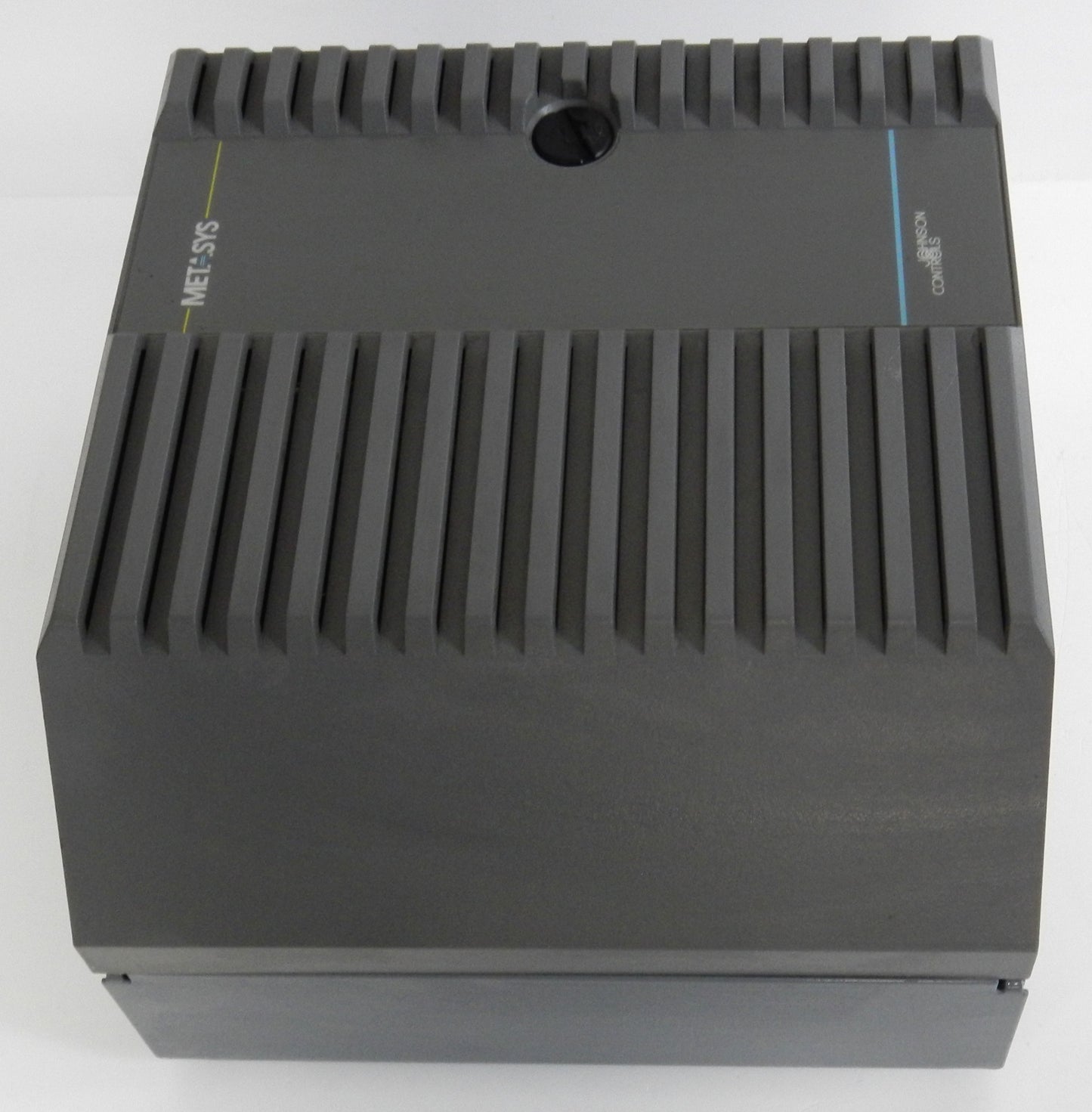

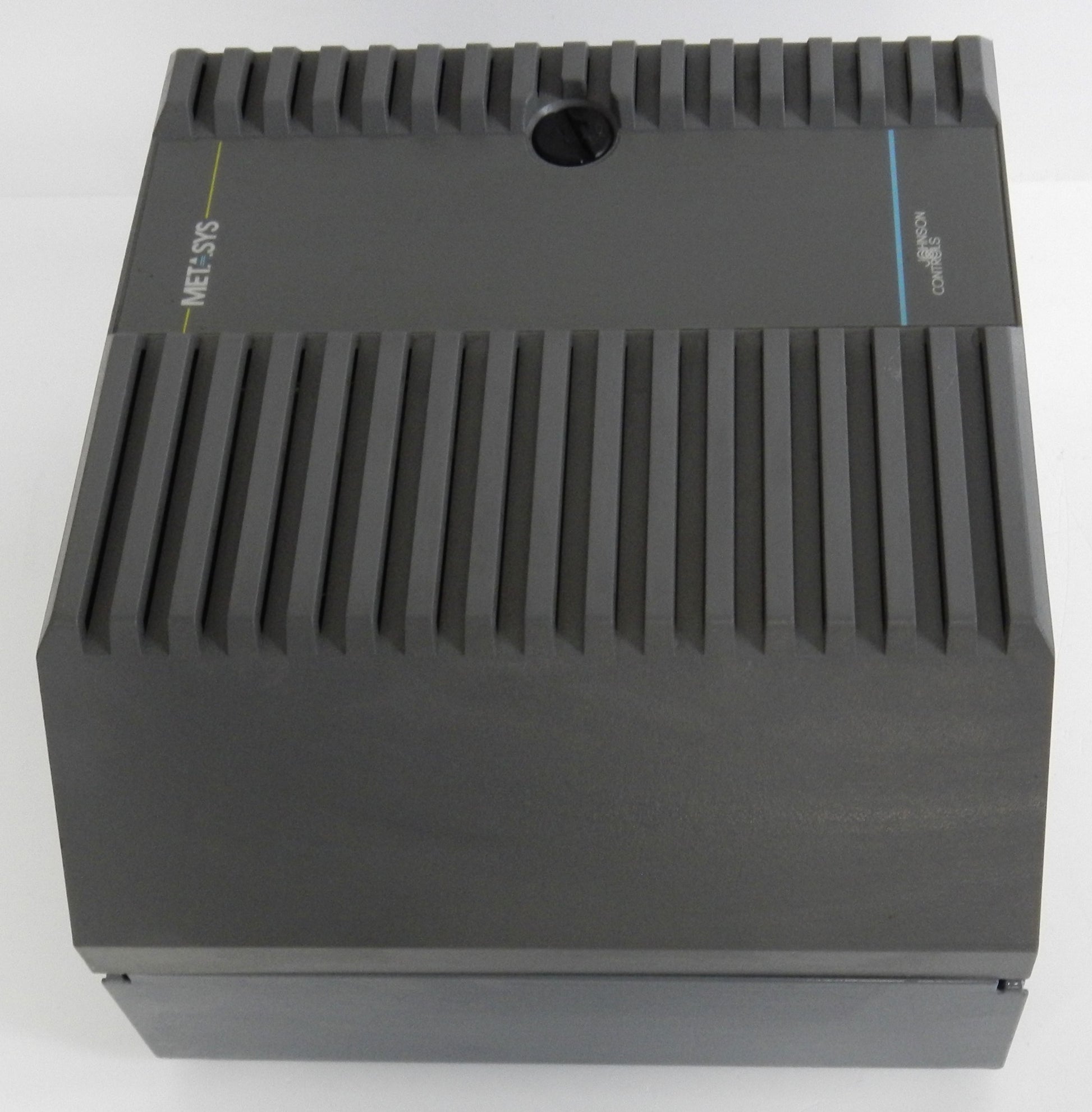

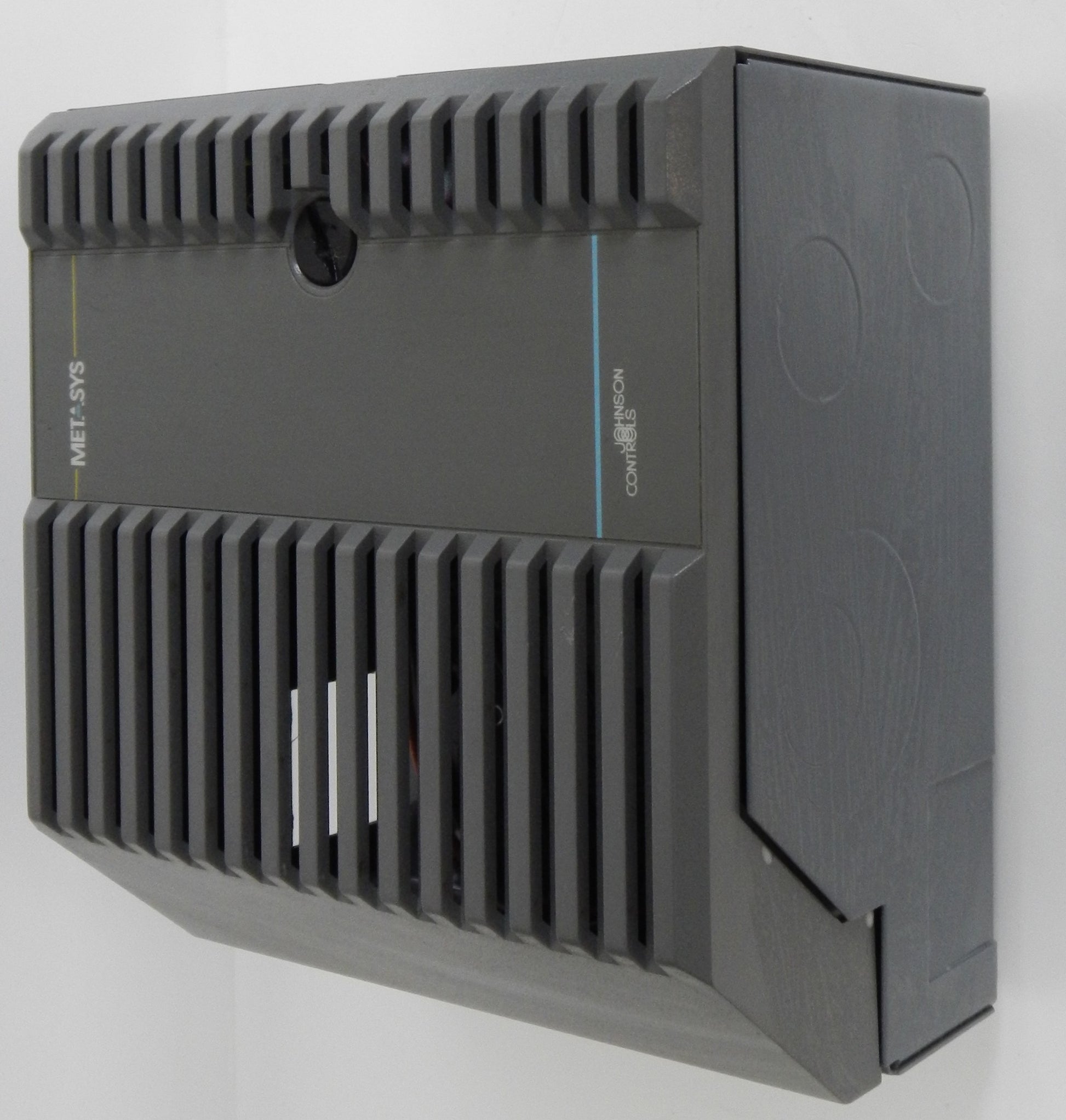

ASXFR1001 Johnson Controls 92VA Control Transformer Module 120VAC to 24VAC with Enclosure & Circuit Breaker

Description:

• Genuine Johnson Controls AS-XFR100-1 control transformer module for building automation and HVAC control systems
• Converts 120 VAC input to 24 VAC output for powering controllers, sensors, and I/O modules
• Rated at 92 VA for reliable low-voltage power distribution

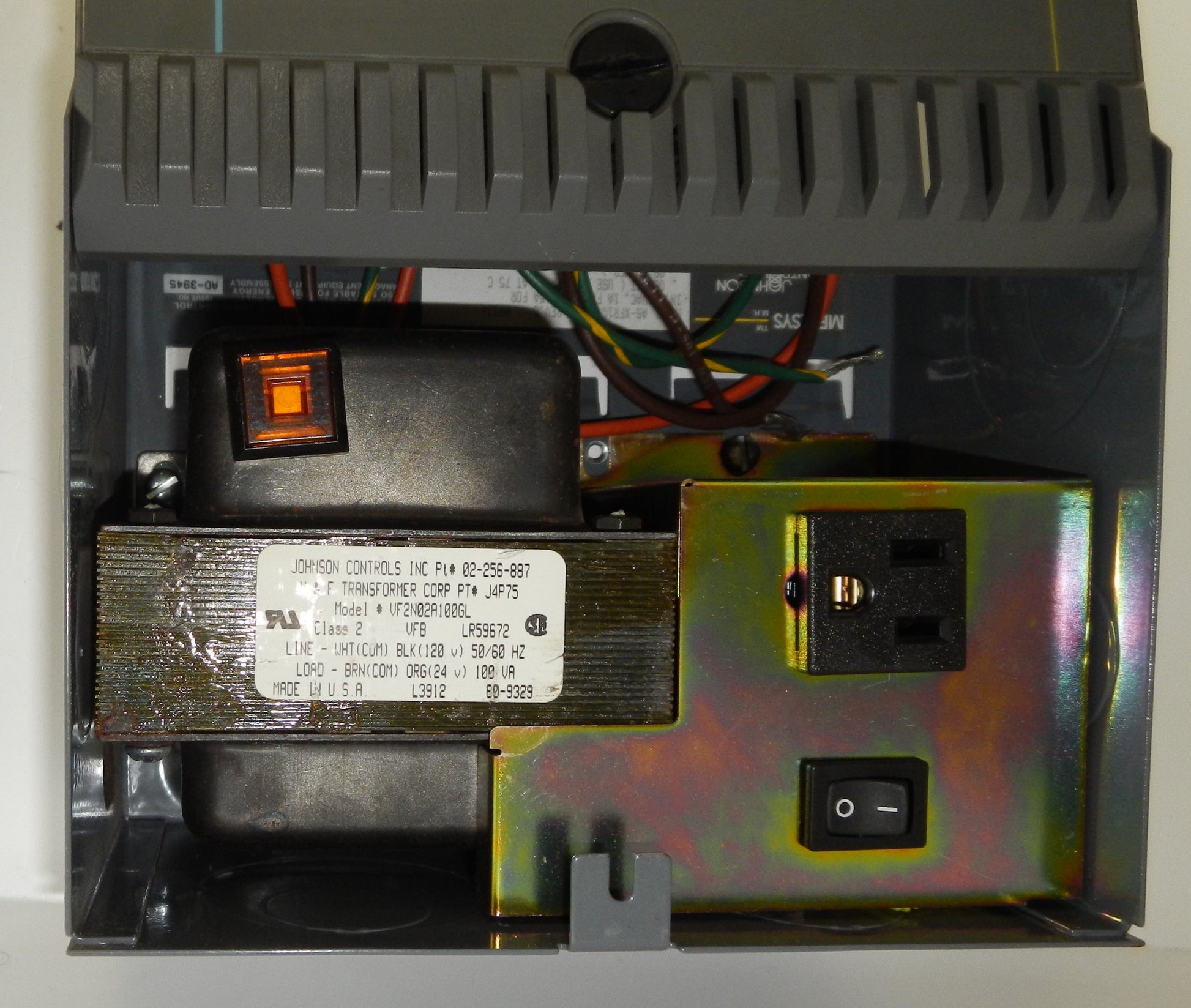

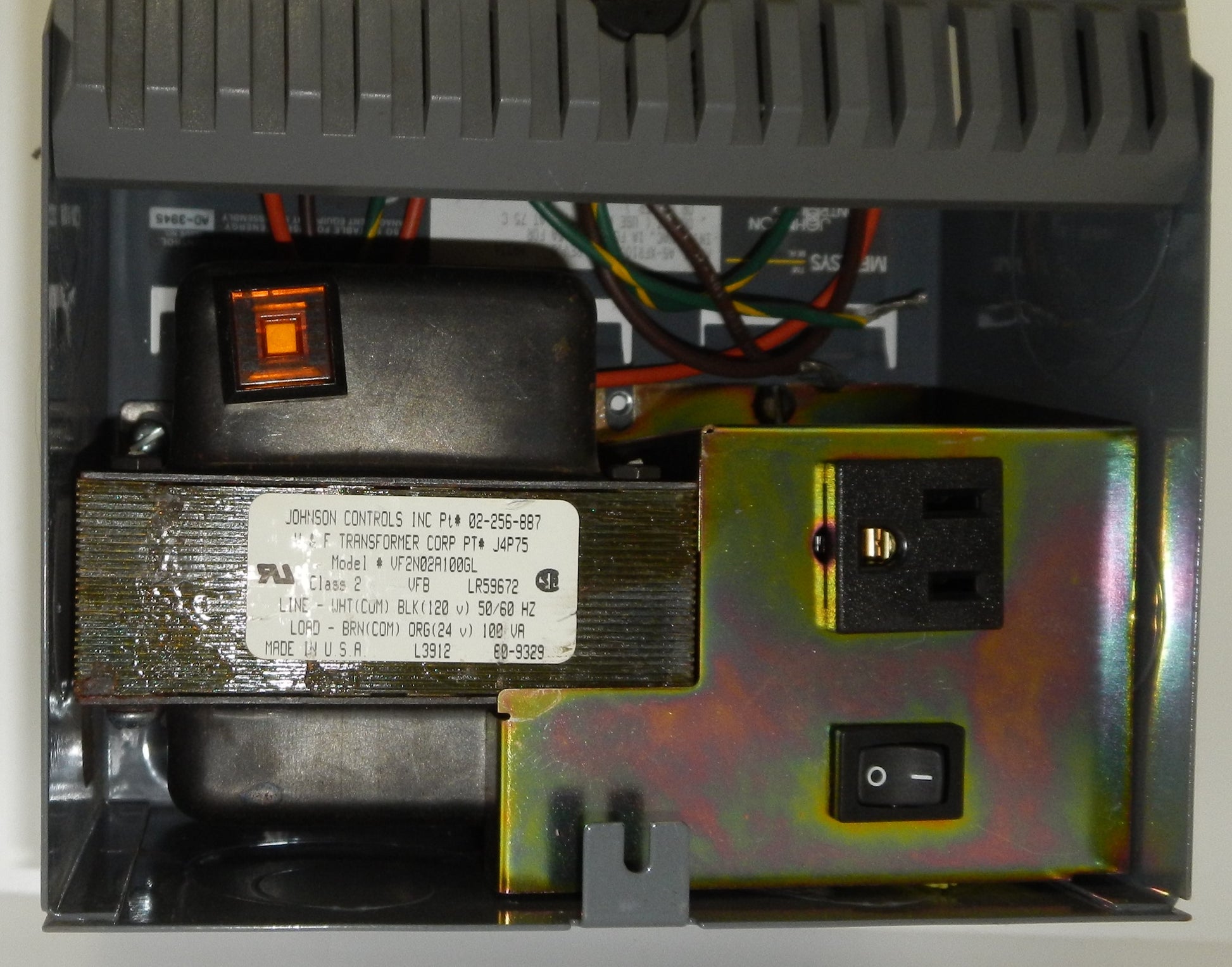

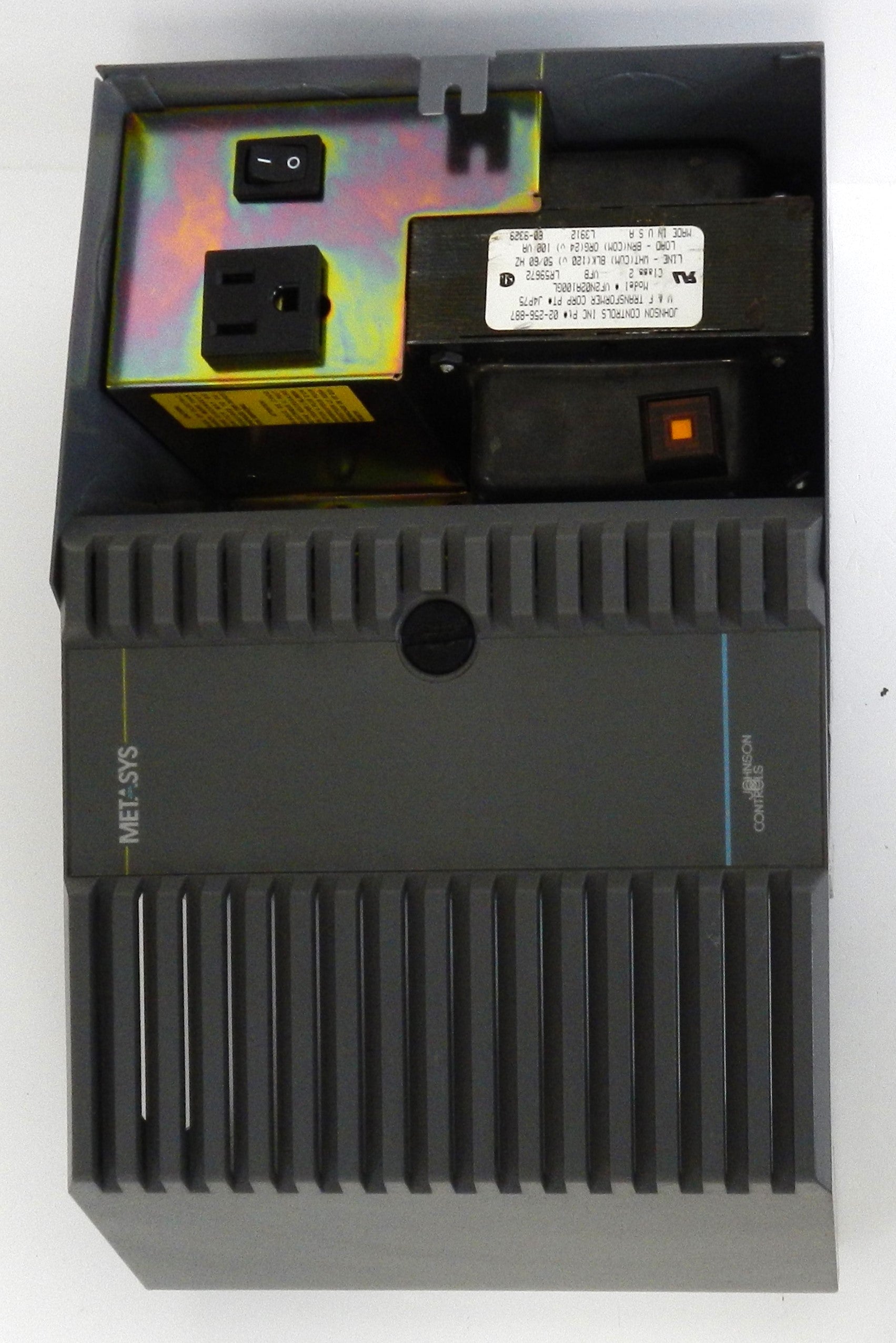

• Factory-mounted in a protective enclosure with an integrated power switch and convenience outlet
• Includes a manual-reset secondary circuit breaker for overload protection
• Split-bobbin transformer design provides improved electrical isolation and noise immunity
• Supports DIN rail or wall mounting for flexible installation
• Designed for use with Johnson Controls Metasys, AHU controllers, and other building automation equipment
• UL Listed and CSA Certified for commercial and industrial applications
• Ideal for HVAC systems, BAS panels, control cabinets, and industrial automation.

Specifications:

• Manufacturer Name: Johnson Controls
• Part Number (MPN): ASXFR1001 (AS-XFR100-1)
• Product Series: AS-XFR
• Product Type: Control Transformer Module
• Input Voltage: 120 VAC, 60 Hz
• Output Voltage: 24 VAC, 60 Hz
• Power Rating: 92 VA
• Transformer Type: Split-Bobbin Isolation Transformer
• Secondary Protection: Manual-Reset Circuit Breaker

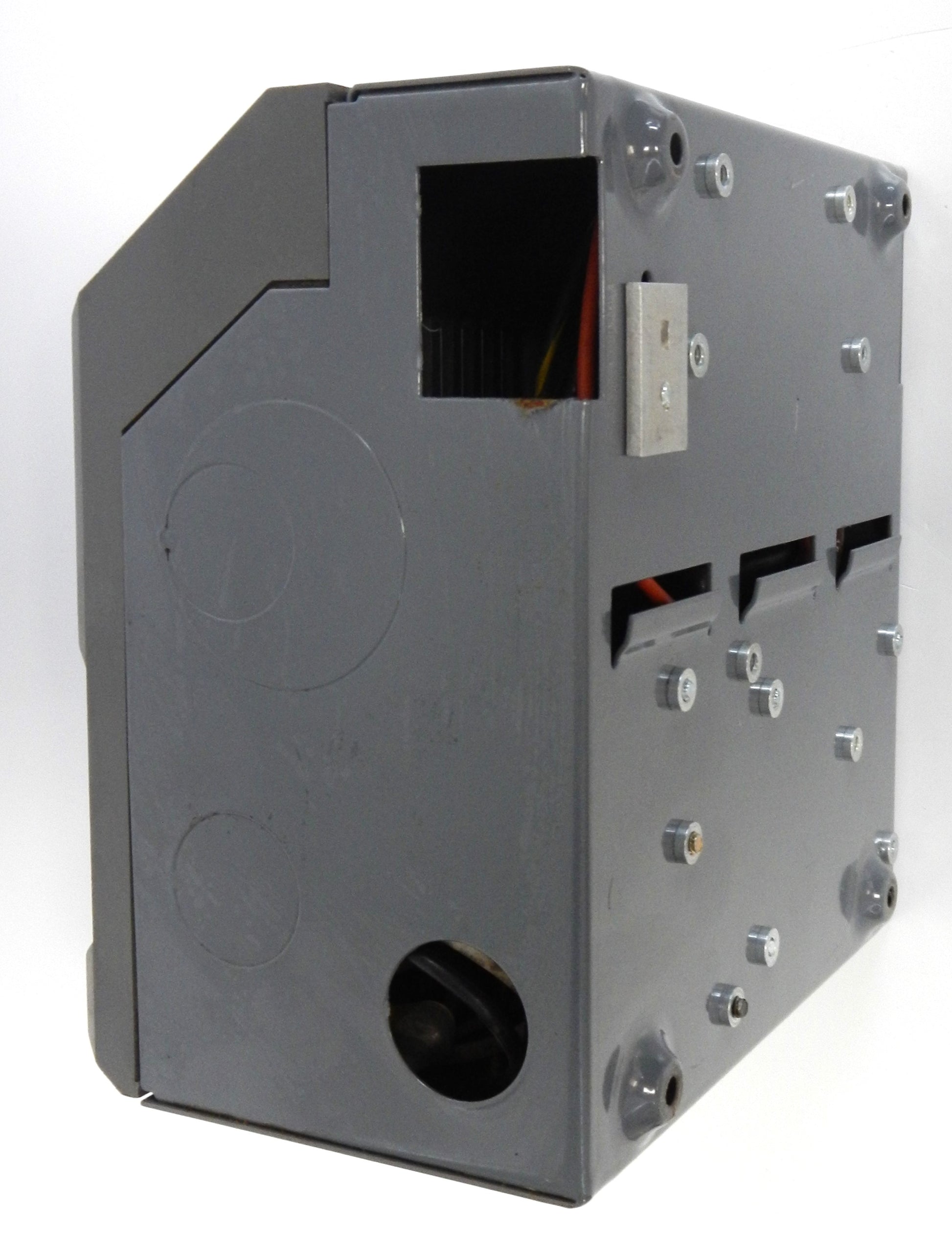

• Enclosure: AS-ENC100
• Mounting Type:
  • DIN Rail
  • Wall Mount
• Integrated Features:
  • Power Switch
  • Utility Outlet
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Storage Temperature: -40°C to +70°C (-40°F to 158°F)
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Building Automation Systems (BAS)
  • HVAC Control Panels
  • Air Handling Units
  • Johnson Controls Metasys
  • Industrial Control Cabinets

Dimensions:

• Height: 171.5 mm (6.75 in)
• Width: 187.2 mm (7.37 in)
• Depth: 117.3 mm (4.62 in).

Weight:

• Approximate Weight: 3.05 kg (6.7 lb).
