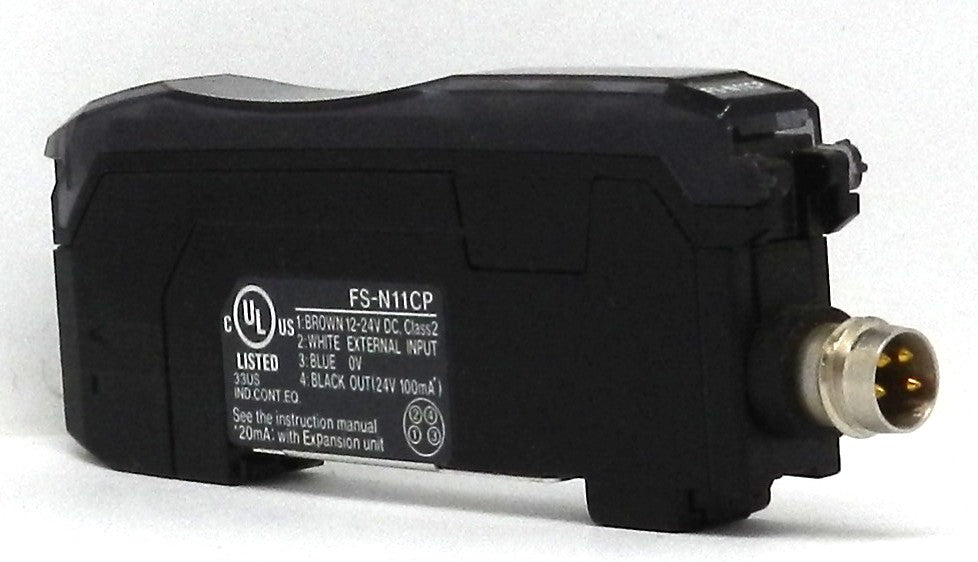

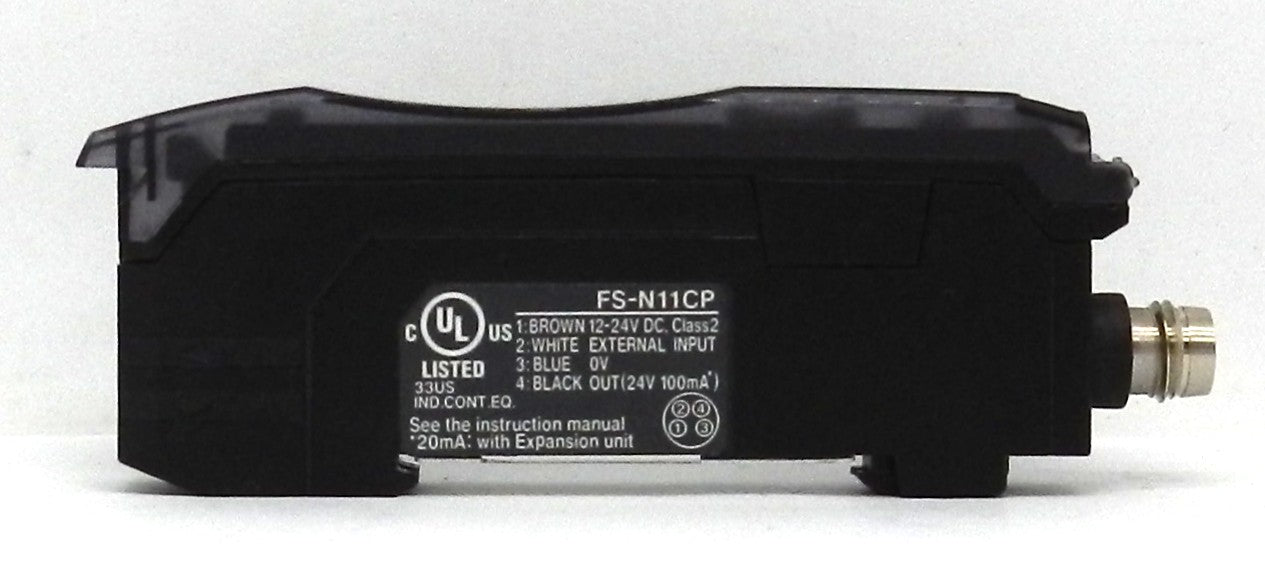

FS-N11CP KEYENCE Fiber Amplifier Unit M8 Connector PNP Digital Fiber Optic Sensor

Description:

• KEYENCE FS-N Series digital fiber optic amplifier designed for high-speed industrial sensing and automation
• PNP output main unit with M8 connector for fast installation and reliable wiring
• Compatible with KEYENCE fiber optic sensor heads for precision object detection
• High-speed response time selectable from 50 µs to 16 ms for demanding applications
• Bright digital display with intuitive push-button programming for easy setup and monitoring
• Built-in automatic power control (APC) improves detection stability in changing environments
• Supports expansion of up to 16 amplifier units for multi-point sensing applications
• Red 4-element LED light source delivers reliable sensing performance
• Ideal for packaging machines, electronics manufacturing, robotics, conveyors, material handling, and industrial automation
• Manufactured by KEYENCE for dependable high-performance fiber optic sensing.

Specifications:

• Manufacturer Name: KEYENCE
• Part Number (MPN): FS-N11CP
• Product Series: FS-N
• Product Type: Fiber Amplifier Unit
• Output Type: PNP Open Collector
• Main/Expansion Unit: Main Unit
• Connector Type: M8
• Control Outputs: 1
• Output Rating: 24 VDC, 100 mA Max.
• Supply Voltage: 12–24 VDC ±10%
• Light Source: Red 4-Element LED
• Response Time:
  • 50 µs (High Speed)
  • 250 µs (Fine)
  • 500 µs (Turbo)
  • 1 ms (Super)
  • 4 ms (Ultra)
  • 16 ms (Mega)
• External Input: 1
• Expansion Capacity: Up to 16 Units
• Protection Functions: Reverse Polarity, Overcurrent, Surge Protection
• Operating Temperature: -20°C to +55°C
• Application: Fiber Optic Sensors, Industrial Automation, Packaging Equipment, Robotics, Material Handling, Machine Vision Systems.

Dimensions:

• Compact DIN rail mounting design
• M8 connector interface
• Space-saving housing for high-density control panels.

Weight:

• Approximate Weight: 22 g (0.05 lb).
