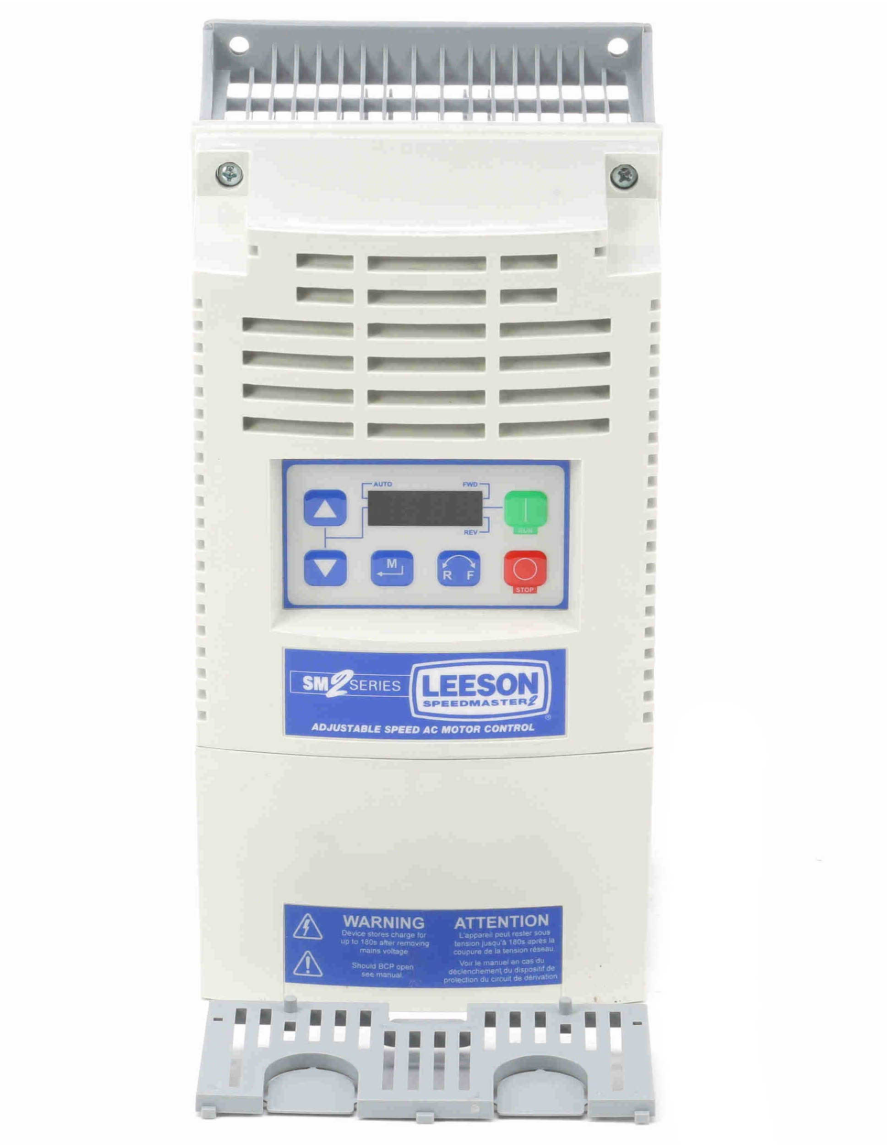

17463500 Leeson SM2 Flux Vector VFD 7.5HP 480-590V 3-Phase NEMA 1 AC Drive

Description:

• Leeson SM2 Flux Vector Variable Frequency Drive (VFD) designed for demanding industrial motor control applications
• Rated for 7.5 HP (5.5 kW) with 480–590 VAC three-phase input and output
• Advanced Open Loop Flux Vector technology provides excellent low-speed torque and speed regulation
• Supports four operating modes: Vector Speed, Torque, Standard V/Hz, and Enhanced V/Hz with Auto-Tuning
• Compact NEMA 1 / IP31 enclosure for indoor industrial installations
• User-friendly 6-button keypad with bright 4-digit LED display for programming and diagnostics
• PID process control, multiple acceleration/deceleration profiles, programmable I/O, and dynamic braking support
• Ideal for conveyors, pumps, fans, packaging machinery, material handling, HVAC systems, and food processing equipment
• Manufactured by Leeson (Regal Rexnord) for reliable industrial motor speed control.

Specifications:

• Manufacturer Name: Leeson (Regal Rexnord)
• Part Number (MPN): 17463500 (174635.00)
• Product Series: SM2 Flux Vector
• Product Type: Variable Frequency Drive (VFD)
• Motor Rating: 7.5 HP (5.5 kW)
• Input Voltage: 480–590 VAC
• Input Phase: 3-Phase
• Output Voltage: 480–590 VAC
• Output Phase: 3-Phase
• Continuous Output Current: 9.0 A
• Enclosure Rating: NEMA 1 / IP31
• Operating Modes:
  • Open Loop Flux Vector (Speed)
  • Open Loop Flux Vector (Torque)
  • Standard V/Hz
  • Enhanced V/Hz with Auto-Tuning
• Output Frequency: 0–500 Hz (1000 Hz optional)
• Control Interface: Built-in Keypad with LED Display
• Mounting Type: Panel Mount
• Operating Temperature: -10°C to +55°C
• Application: Industrial Motor Control, Pumps, Fans, Conveyors, Packaging Equipment, Material Handling, HVAC, Food Processing.

Dimensions:

• Height: 9.83 in (250 mm)
• Width: 5.12 in (130 mm)
• Depth: 6.30 in (160 mm).

Weight:

• Approximate Weight: 7 lb (3.2 kg).
