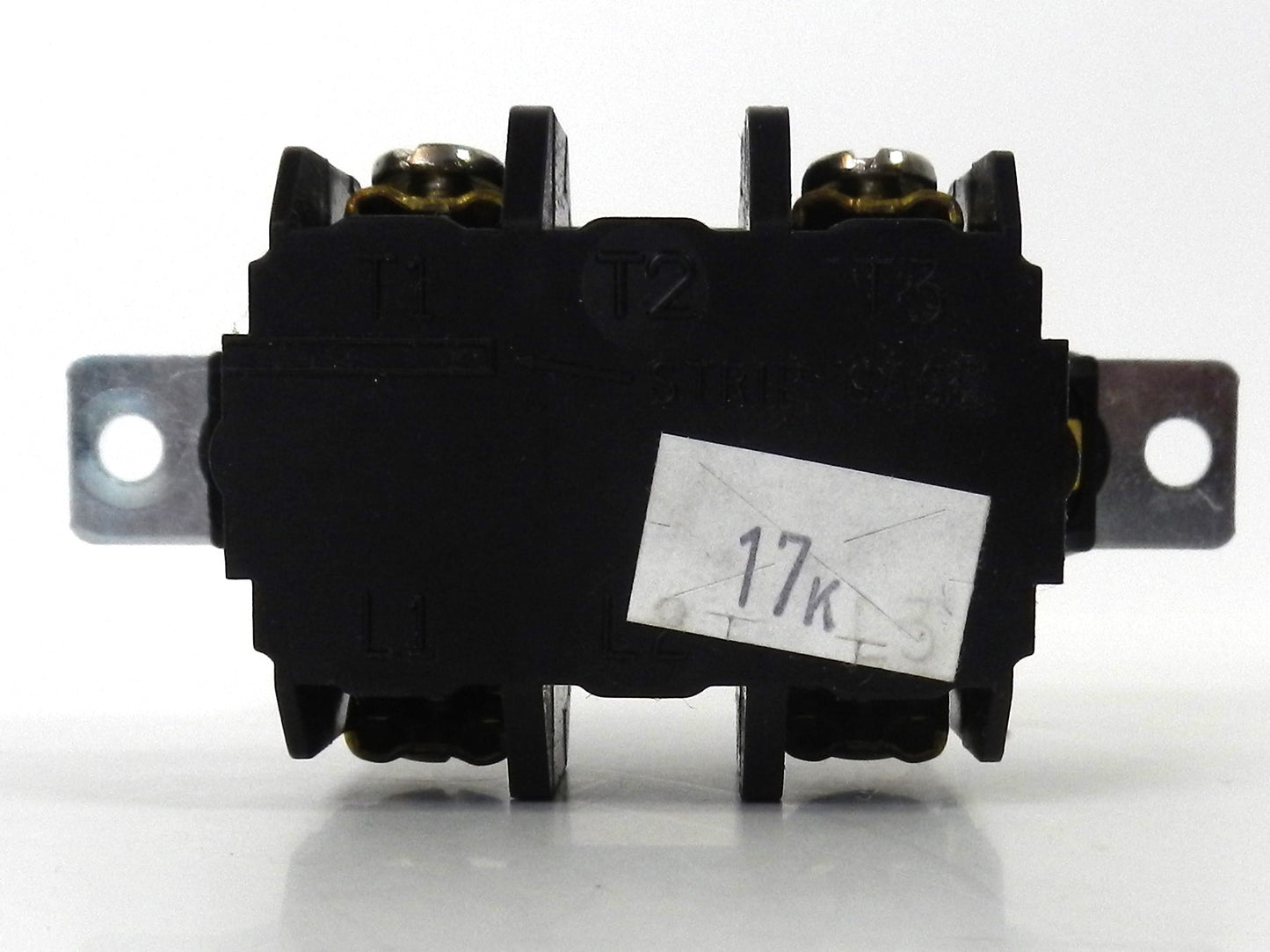

7812-PMD Legrand Pass & Seymour 30A Double-Pole Single-Phase AC Manual Motor Controller 600VAC

Description:

• Genuine Legrand Pass & Seymour heavy-duty AC Manual Motor Controller for commercial and industrial motor disconnect applications
• Designed as a double-pole, single-phase manual motor controller suitable for use as a motor disconnect switch
• Rated for 30 Amps and 600 VAC with a 10 kA short-circuit rating when protected by a Class J fuse
• High 20 HP horsepower rating for demanding industrial motor applications
• Heavy-duty glass-reinforced thermoplastic housing with a zinc-plated steel mounting strap for long service life
• Features gull-wing brass terminal pressure clamps and screw-pressure-plate terminals for secure wiring
• Compatible with #14 AWG to #10 AWG copper conductors
• Suitable for commercial buildings, industrial equipment, HVAC systems, machine tools, pumps, compressors, and motor control applications
• UL 508 and cULus Listed for motor control and disconnect applications.

Specifications:

• Manufacturer Name: Legrand Pass & Seymour
• Part Number (MPN): 7812-PMD
• Product Line: Pass & Seymour
• Product Type: AC Manual Motor Controller
• Number of Poles: 2 (Double Pole)
• Number of Phases: Single Phase
• Rated Current: 30 A
• Rated Voltage: 600 VAC
• Horsepower Rating: 20 HP @ 600 VAC
• Short-Circuit Rating: 10 kA @ 600 VAC (Class J Fuse Protected)
• Throw Type: Single Throw
• Switch Type: Toggle
• Terminal Type: Screw Terminals
• Wire Size: #14 AWG to #10 AWG
• Mounting Type: Wall Box
• Material: Glass-Reinforced Thermoplastic
• Finish: Matte Black
• Operating Cycles: 50,000
• Standards:
  • UL 508
  • cULus Listed
  • CSA Listed
• Country of Origin: Mexico
• Applications:
  • Motor Disconnect
  • HVAC Equipment
  • Industrial Machinery
  • Pump Control
  • Compressors
  • Machine Tools
  • Commercial Electrical Systems

Dimensions:

• Height: 3.91 in (99.3 mm)
• Width: 2.83 in (71.8 mm)
• Depth: 2.80 in (71.1 mm)

Weight:

• Approximate Weight: 0.30 kg (0.66 lb).
