LEGRAND

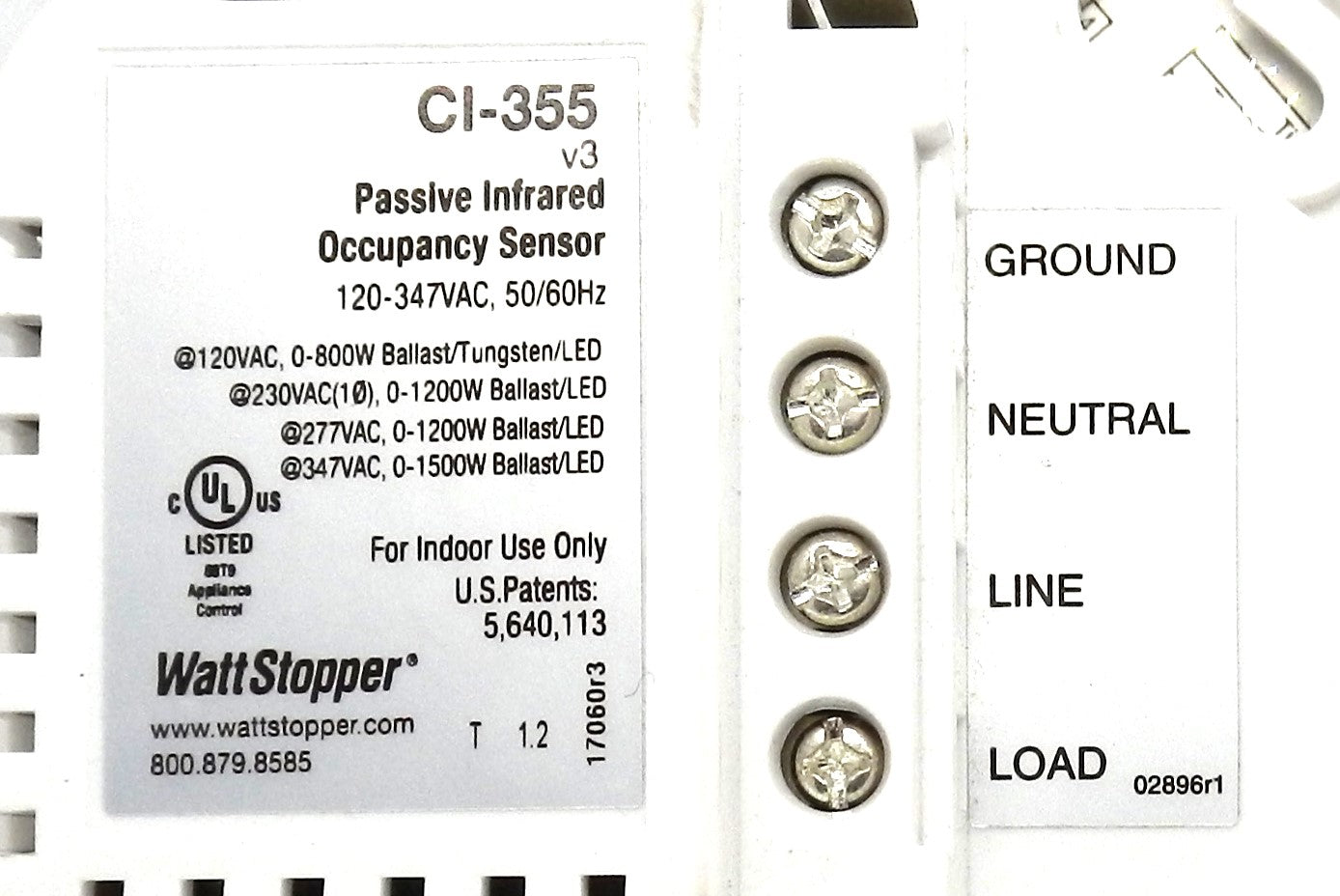

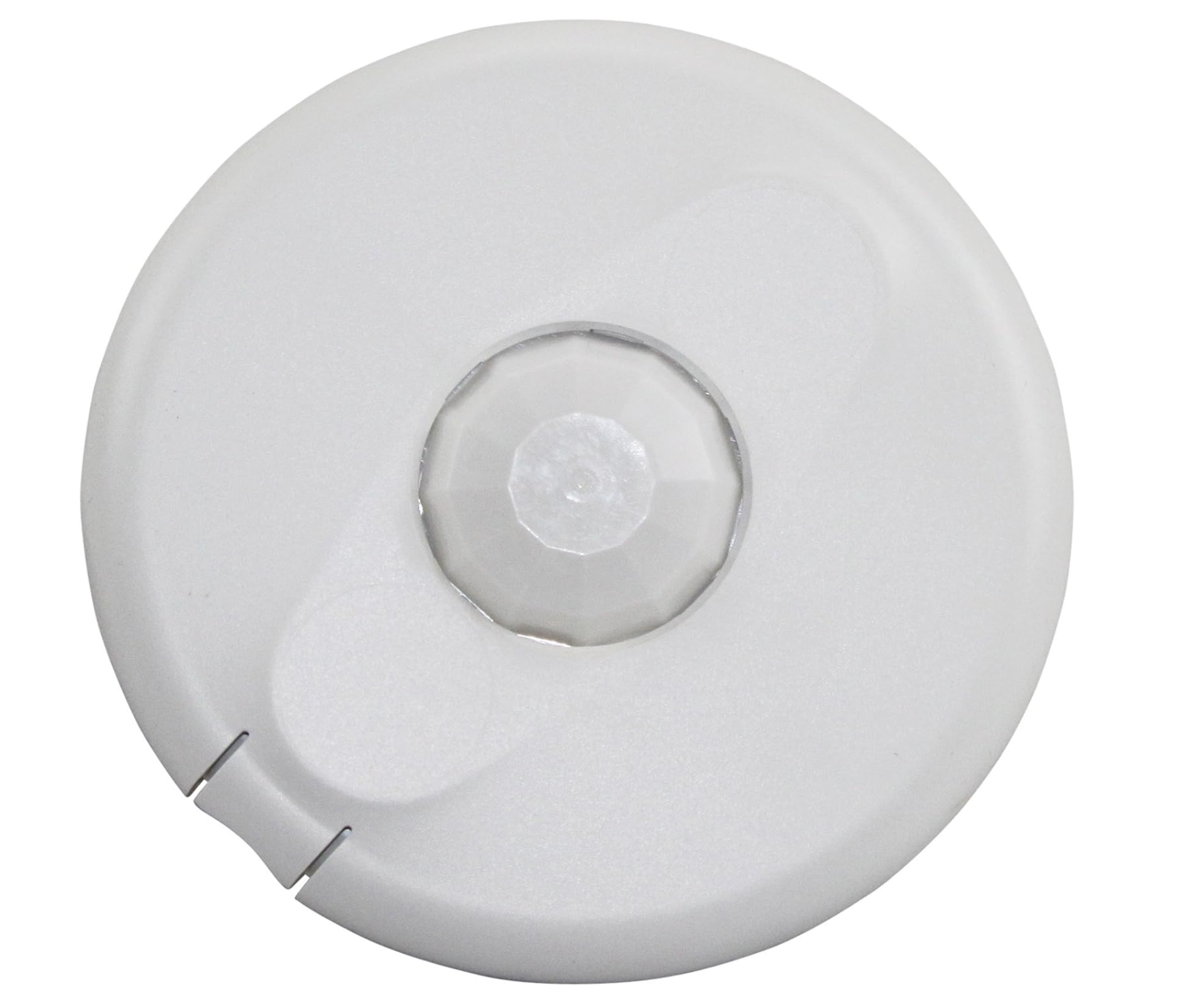

CI-355 Legrand Wattstopper PIR Ceiling Occupancy Sensor 100-347VAC 360° Extended Range

$139.99 CAD

Sale Sold out

STYLE NEW

Description:

Genuine Legrand Wattstopper passive infrared (PIR) ceiling occupancy sensor for automatic lighting control
Provides 360° occupancy detection with extended coverage up to 1,200 sq. ft.
Operates on 100–347 VAC line voltage, eliminating the need for an external power pack
Built-in light level sensor prevents lights from turning on when sufficient daylight is available
Walk-through mode automatically turns lights off after 3 minutes during brief occupancy
Detection Signature Processing (DSP) minimizes false triggers and provides immunity to RFI and EMI
Adjustable time delay and sensitivity settings using convenient DIP switches
LED indicator confirms occupancy detection and simplifies installation
Ceiling-mount design for offices, classrooms, conference rooms, warehouses, and commercial buildings
Manufactured by Legrand Wattstopper for reliable commercial lighting control.

Manufacturer Name: Legrand Wattstopper
Part Number (MPN): CI-355
Product Series: CI-355
Product Type: PIR Ceiling Occupancy Sensor
Sensor Technology: Passive Infrared (PIR)
Detection Pattern: 360°
Coverage Area: Up to 1,200 sq. ft.
Detection Diameter: 44 ft
Input Voltage: 120/230/277/347 VAC
Line Frequency: 50/60 Hz
Load Rating:
- 800W @ 120 VAC
- 1200W @ 230–347 VAC
Mounting Height: 8–12 ft
Time Delay: 30 Seconds, 5–30 Minutes (Adjustable)
Light Level Adjustment: 10–300 fc
Sensitivity: Adjustable
Indicator: PIR Detection LED
Mounting Type: Ceiling Surface or 2-1/4 in. Deep Junction Box
Housing Material: ABS
Color: White
Operating Temperature: 0°C to +55°C (32°F to 131°F)
Operating Humidity: 5–95% RH, Non-Condensing
Certifications: UL, cUL, RoHS
Warranty: 5-Year
Application: Commercial Lighting Control, Offices, Classrooms, Conference Rooms, Warehouses, Hallways, Retail Stores, Healthcare Facilities.
