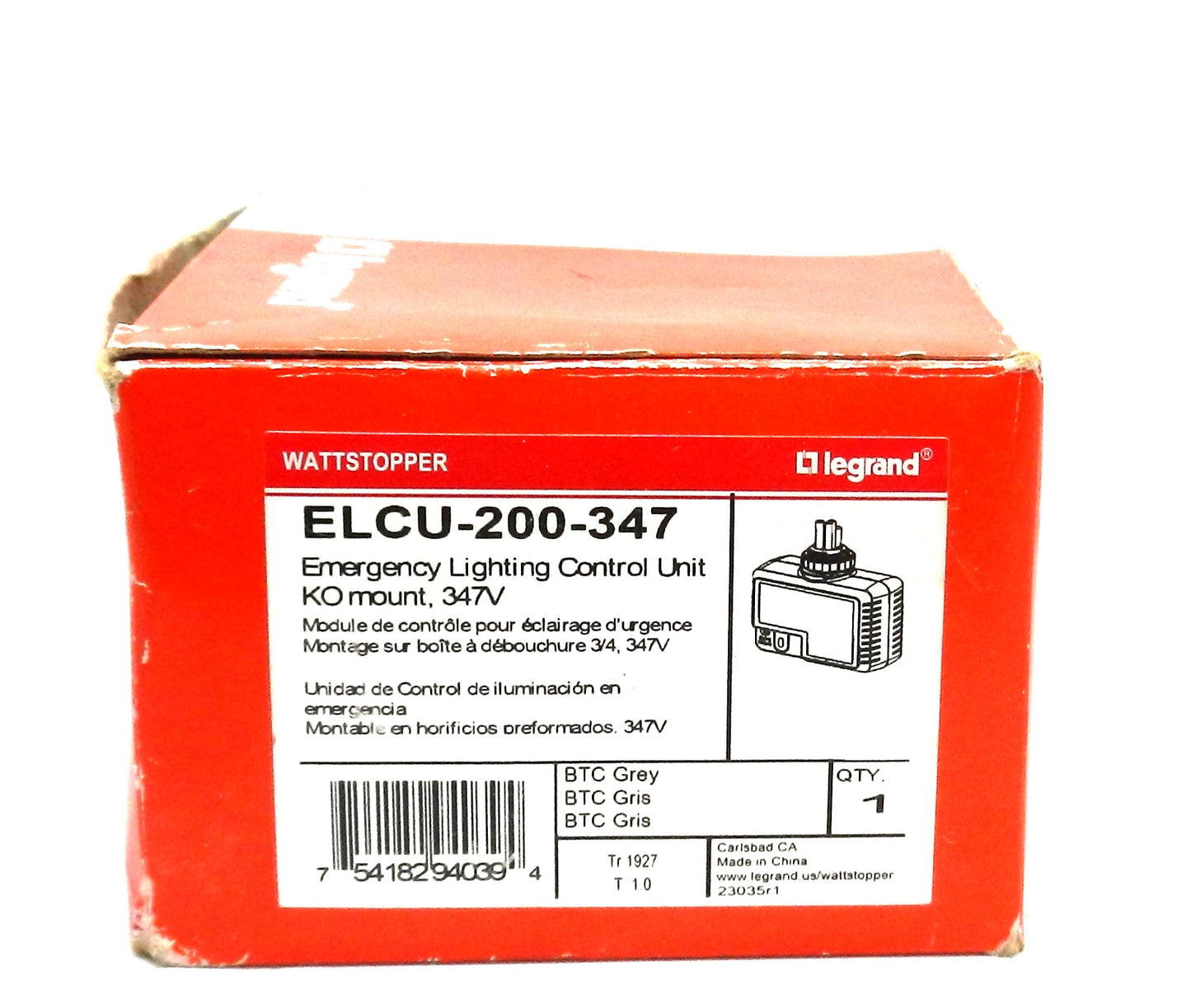

ELCU-200-347 Legrand Wattstopper Emergency Lighting Control Unit 120-347VAC KO Mount

Description:

• Genuine Legrand Wattstopper emergency lighting control unit designed for code-compliant emergency lighting control in commercial buildings
• Operates on 120–347 VAC, single-phase, 50/60 Hz electrical systems
• Allows standard lighting controls to operate emergency lighting fixtures during normal operation while automatically bypassing controls during a power outage
• Supports operation as either a control device or a shunt device for flexible installation
• Built-in Push-to-Test button verifies emergency operation without interrupting normal system functionality
• Compatible with the EMTS-100 Remote Test Switch and other remote activation devices
• Zero-cross switching technology extends relay life and improves reliability
• Compact 1/2-inch knockout mount design for easy installation above ceilings or inside junction boxes
• Ideal for offices, schools, hospitals, commercial buildings, retail spaces, and other emergency lighting applications
• Meets UL 924, UL 2043 Plenum, NEC, NFPA 101, OSHA, and CSA emergency lighting requirements.

Specifications:

• Manufacturer Name: Legrand Wattstopper
• Part Number (MPN): ELCU-200-347
• Product Series: ELCU-200
• Product Type: Emergency Lighting Control Unit
• Mounting Type: 1/2 in. Knockout (KO)
• Input Voltage: 120–347 VAC
• Frequency: 50/60 Hz
• Phase: Single Phase
• Maximum Load:
  • Ballast / ELV / MLV / Incandescent: 16A @ 120–347 VAC
  • LED / Electronic Ballast / CFL: 16A @ 120–277 VAC
  • Motor: 1/4 HP @ 120–347 VAC
  • Plug Load: 15A @ 120 VAC
• Remote Activation: 24 VDC Dry Contact
• Test Function: Integral Push-to-Test Button
• Wire Connection: Flying Leads
• Operating Temperature: -20°C to +55°C (-4°F to 131°F)
• Operating Humidity: 5–95% RH, Non-Condensing
• Housing Material: Flame-Rated ABS
• Color: Red / White
• Certifications:
  • UL 924
  • UL 2043 Plenum Rated
  • CSA C22.2 No. 141-15
  • NEC
  • NFPA 101
  • OSHA
• Application: Emergency Lighting Systems, Commercial Lighting Control, Building Automation, Healthcare Facilities, Schools, Offices, Retail Buildings.

Dimensions:

• Height: 3.1 in (75.4 mm)
• Width: 3.1 in (75.4 mm)
• Depth: 1.5 in (41.7 mm)

Weight:

• Approximate Weight: 0.30 lb (0.14 kg).
