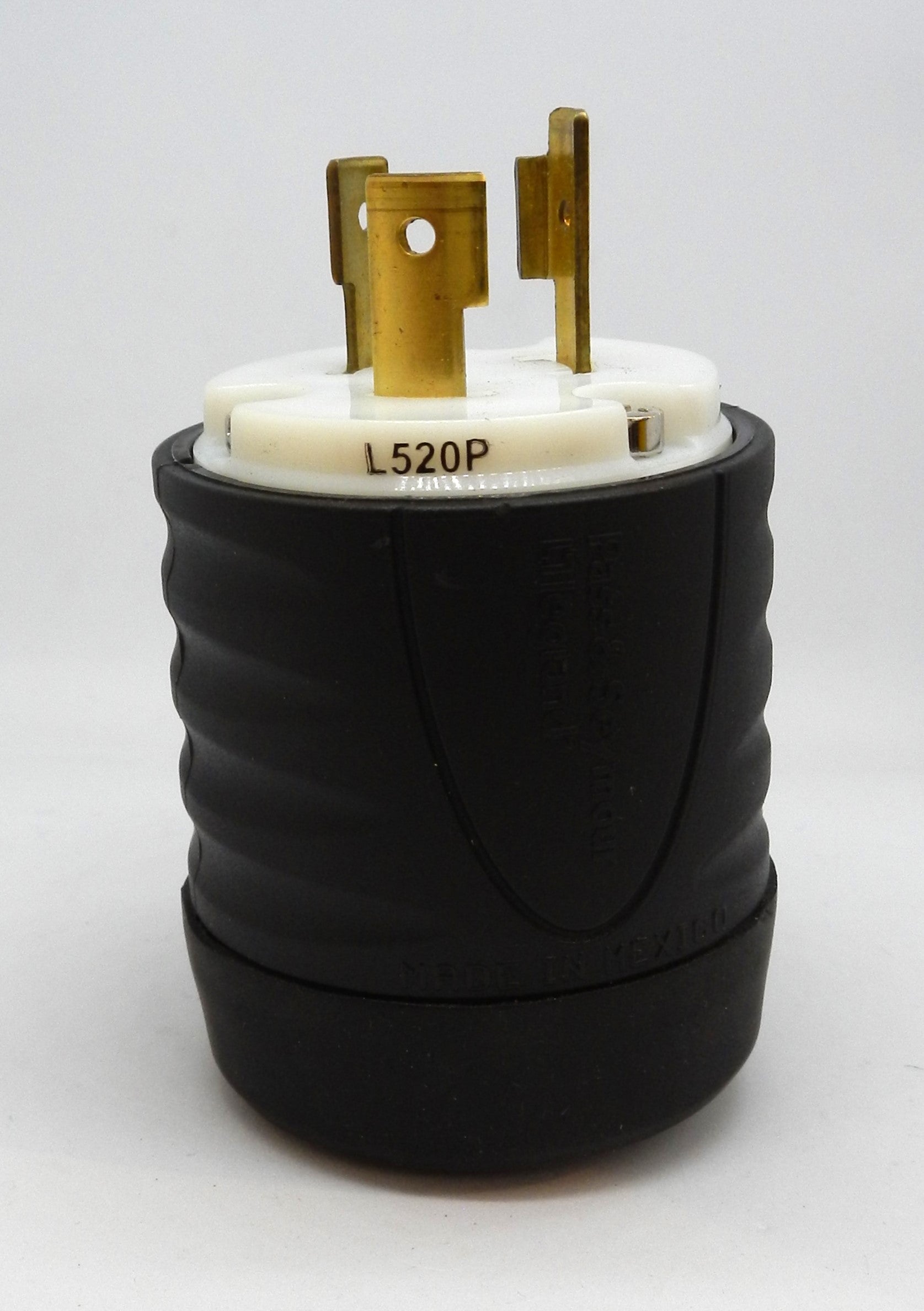

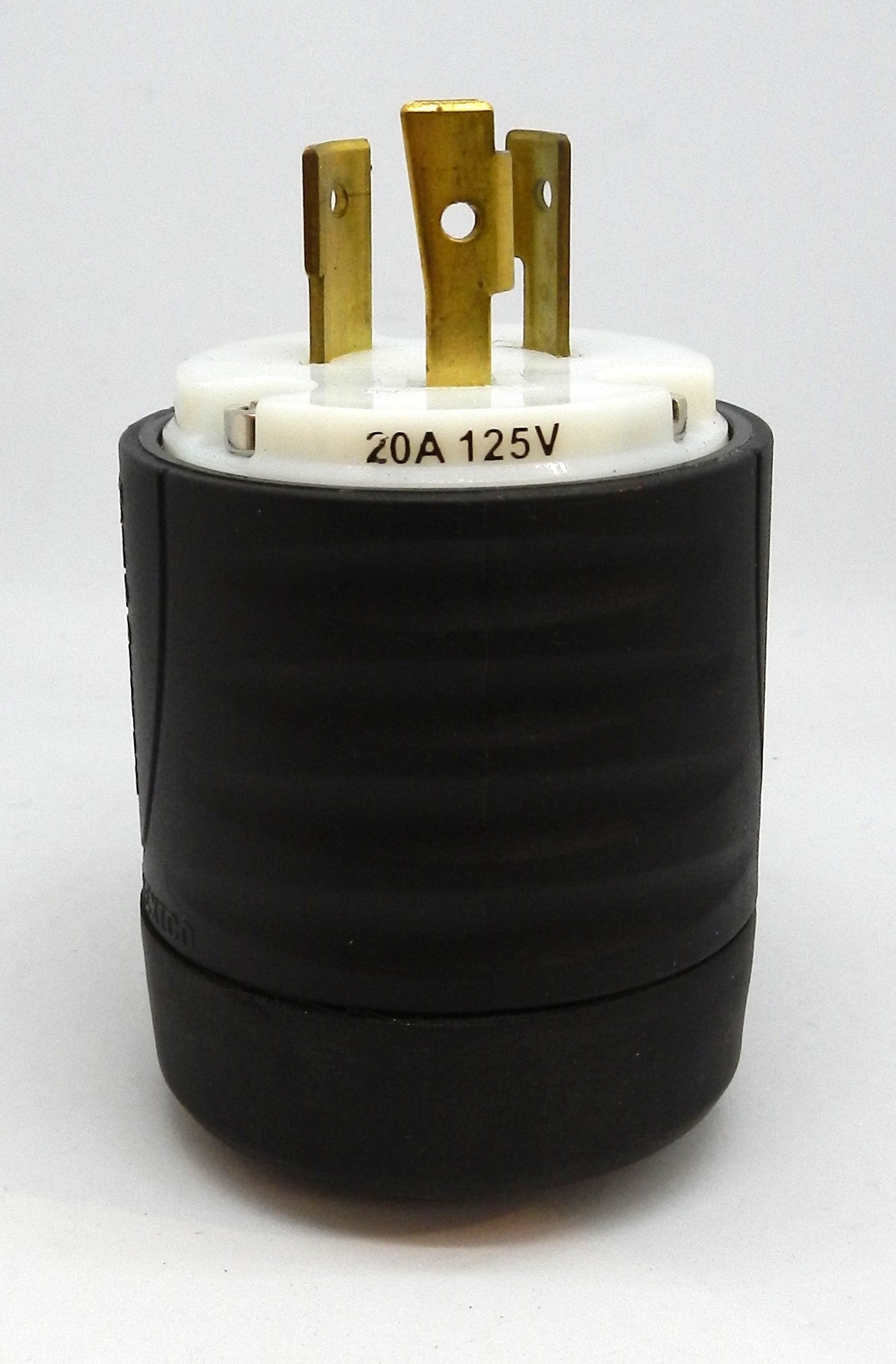

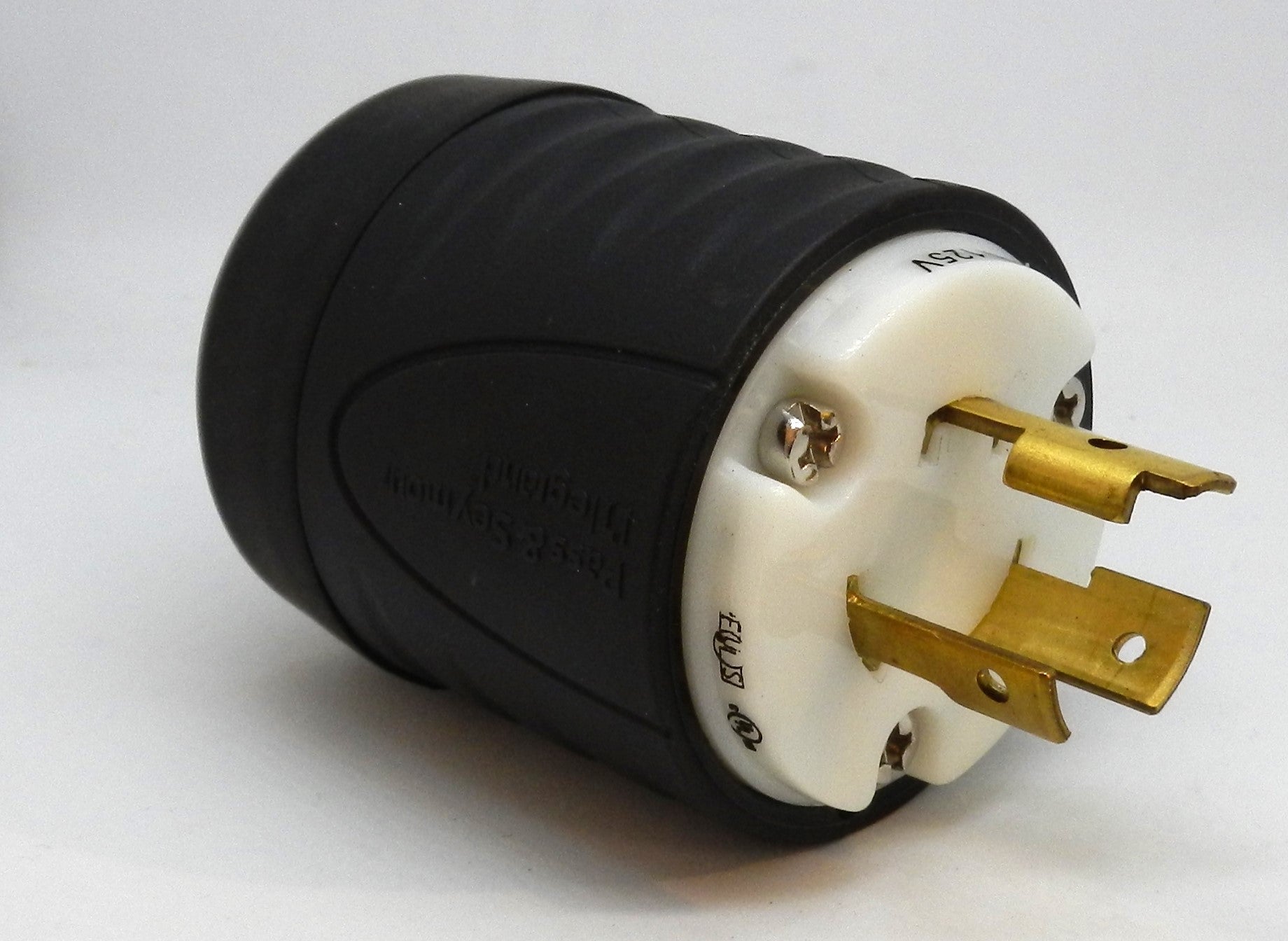

L520P Legrand Pass & Seymour Turnlok Twist-Locking Plug 20A 125V NEMA L5-20P 2-Pole 3-Wire

Description:

• Genuine Legrand Pass & Seymour Turnlok® industrial-grade twist-locking plug for reliable power connections
• Rated for 20 Amp, 125 Volt AC applications
• NEMA L5-20P configuration with 2-pole, 3-wire grounding
• Twist-lock design prevents accidental disconnection in demanding industrial environments
• Heavy-duty brass alloy blades and contacts provide excellent conductivity and resist heat buildup
• Durable Nylon 6 housing offers high impact and corrosion resistance

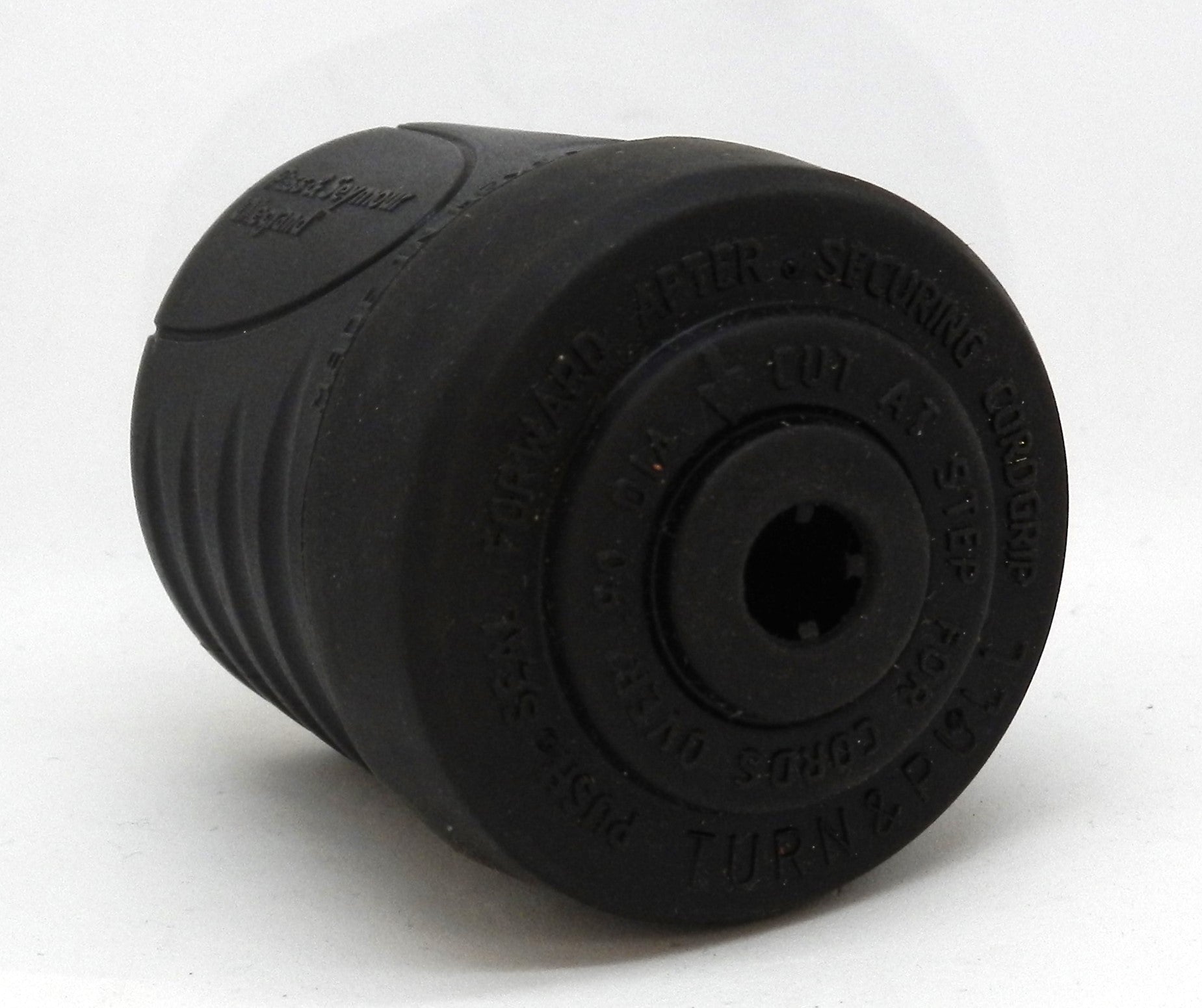

• External cord grip and flexible rubber grommet provide secure cable retention and help protect against oil, water, and debris entering the wiring chamber
• Raised ribs and scalloped housing provide a secure, non-slip grip during installation and removal
• Ideal for generators, industrial equipment, temporary power distribution, construction sites, manufacturing facilities, and commercial electrical applications
• Meets UL 498 requirements and is cULus Listed.

Specifications:

• Manufacturer Name: Legrand Pass & Seymour
• Part Number (MPN): L520P
• Product Line: Turnlok®
• Product Type: Twist-Locking Plug
• NEMA Configuration: L5-20P
• Connector Style: Locking Plug
• Amperage: 20 A
• Rated Voltage: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Terminal Accommodation: Up to #4 AWG
• Housing Material: Nylon 6
• Contact Material: Brass Alloy
• Mounting Style: Cord-End Plug
• Indoor/Outdoor: Indoor
• Color: Black Back / White Front
• Standard: UL 498
• Certifications:
  • cULus Listed
  • UL Listed
• Country of Origin: Mexico

Dimensions:

• Length: 2.57 in (65.3 mm)
• Width: 2.20 in (55.9 mm)

Weight:

• Approximate Weight: 0.16 kg (0.35 lb).
