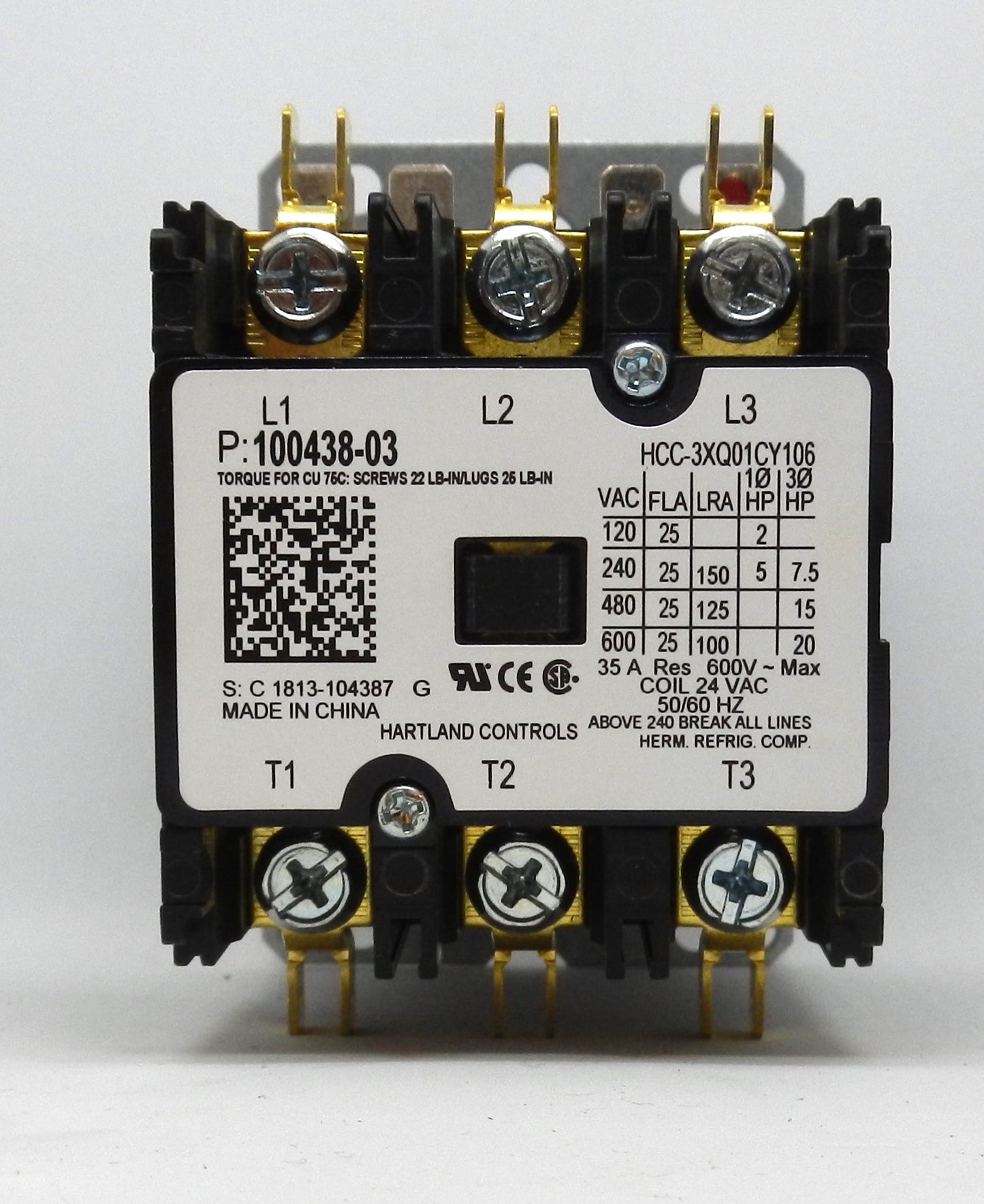

100438-03 Hartland Controls 3-Pole Definite Purpose Contactor 25A 24VAC Coil

Description:

• Genuine Hartland Controls definite purpose contactor for HVAC, refrigeration, and industrial control applications
• Provides 3-pole switching with a 25A FLA current rating
• Equipped with a 24 VAC, 50/60 Hz control coil
• Designed for reliable switching of compressors, fan motors, pumps, condensers, and other inductive loads
• Heavy-duty silver cadmium oxide contacts provide long electrical life and dependable performance
• Compact chassis-mount design for easy replacement and OEM installations
• Features quick-connect coil terminals and heavy-duty line/load terminals for fast wiring
• Compatible with residential and commercial HVAC equipment as well as industrial motor control applications
• Alternate manufacturer part number: HCC-3XQ01QG106.

Specifications:

• Manufacturer Name: Hartland Controls
• Part Number (MPN): 100438-03
• Alternate Part Number: HCC-3XQ01QG106
• Product Type: Definite Purpose Contactor
• Number of Poles: 3
• Rated Current (FLA): 25 A
• Locked Rotor Current (LRA): 150 A @ 240 VAC
• Coil Voltage: 24 VAC, 50/60 Hz
• Rated Voltage: 120–600 VAC
• Contact Configuration: 3-Pole Normally Open (3 NO)
• Mounting Style: Chassis Mount
• Coil Terminal Type: Quick Connect
• Power Terminal Type: Dual Quick Connect / Screw Terminals
• Contact Material: Silver Cadmium Oxide
• Frequency: 50/60 Hz
• Applications:
  • HVAC Systems
  • Air Conditioners
  • Heat Pumps
  • Refrigeration Equipment
  • Compressors
  • Fan Motors
  • Industrial Motor Control
  • OEM Equipment

Dimensions:

• Height: 2.37 in (60.2 mm)
• Width: 3.74 in (95 mm)
• Depth: 2.95 in (75 mm).

Weight:

• Approximate Weight: 0.57 kg (1.26 lb).
