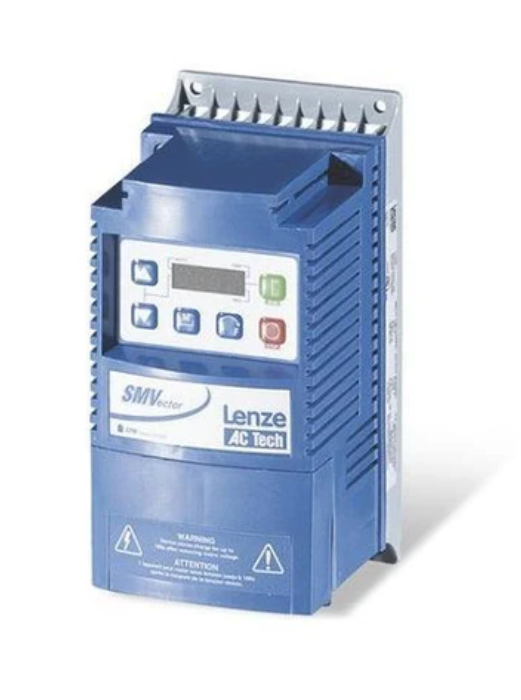

ESV552N02TXB Lenze AC Tech SMVector VFD 7.5HP 208-240V 3-Phase NEMA 1 Vector Drive

Description:

• Lenze AC Tech SMVector variable frequency drive designed for precise industrial motor speed control
• Rated for 7.5 HP (5.5 kW) with 208–240 VAC three-phase input and three-phase output
• Advanced sensorless vector control and V/Hz control provide excellent low-speed torque and motor performance
• Continuous output current of 23 A
• NEMA 1 / IP31 enclosure for indoor industrial installations
• Standard keypad with intuitive LED display for quick programming and diagnostics
• Supports PID process control, dynamic braking, programmable acceleration/deceleration ramps, and auto motor tuning
• Compact panel-mount design saves space in electrical control cabinets
• Ideal for conveyors, pumps, fans, packaging equipment, HVAC systems, material handling, and industrial automation
• Manufactured by Lenze AC Tech for reliable industrial motor control.

Specifications:

• Manufacturer Name: Lenze AC Tech
• Part Number (MPN): ESV552N02TXB
• Product Series: SMVector (SMV)
• Product Type: Variable Frequency Drive (VFD)
• Motor Rating: 7.5 HP (5.5 kW)
• Input Voltage: 208–240 VAC
• Input Phase: 3-Phase
• Output Voltage: 208–240 VAC
• Output Phase: 3-Phase
• Continuous Output Current: 23 A
• Control Method: Sensorless Vector / V/Hz
• Output Frequency: 0–500 Hz (1000 Hz optional)
• Enclosure Rating: NEMA 1 / IP31
• Display: LED Keypad
• Communications: Standard Keypad (No Communications Module Installed)
• EMC Filter: None
• Line Disconnect: None
• Mounting Type: Panel Mount
• Operating Modes: Constant Torque and Variable Torque
• Application: Pumps, Fans, Conveyors, Packaging Machinery, Material Handling, HVAC, Industrial Automation.

Dimensions:

• Height: 9.8 in (250 mm)
• Width: 5.1 in (130 mm)
• Depth: 6.3 in (160 mm).

Weight:

• Approximate Weight: 7.4 lb (3.4 kg).
