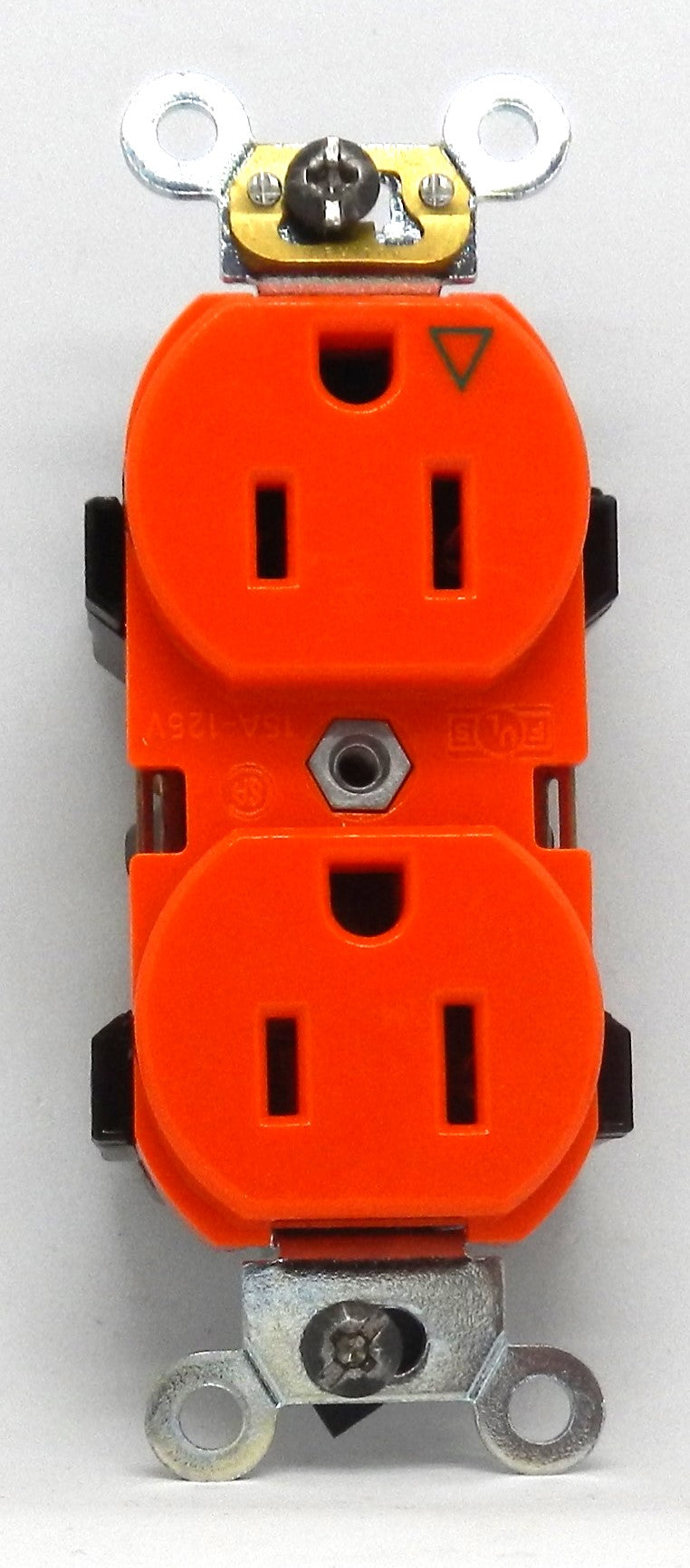

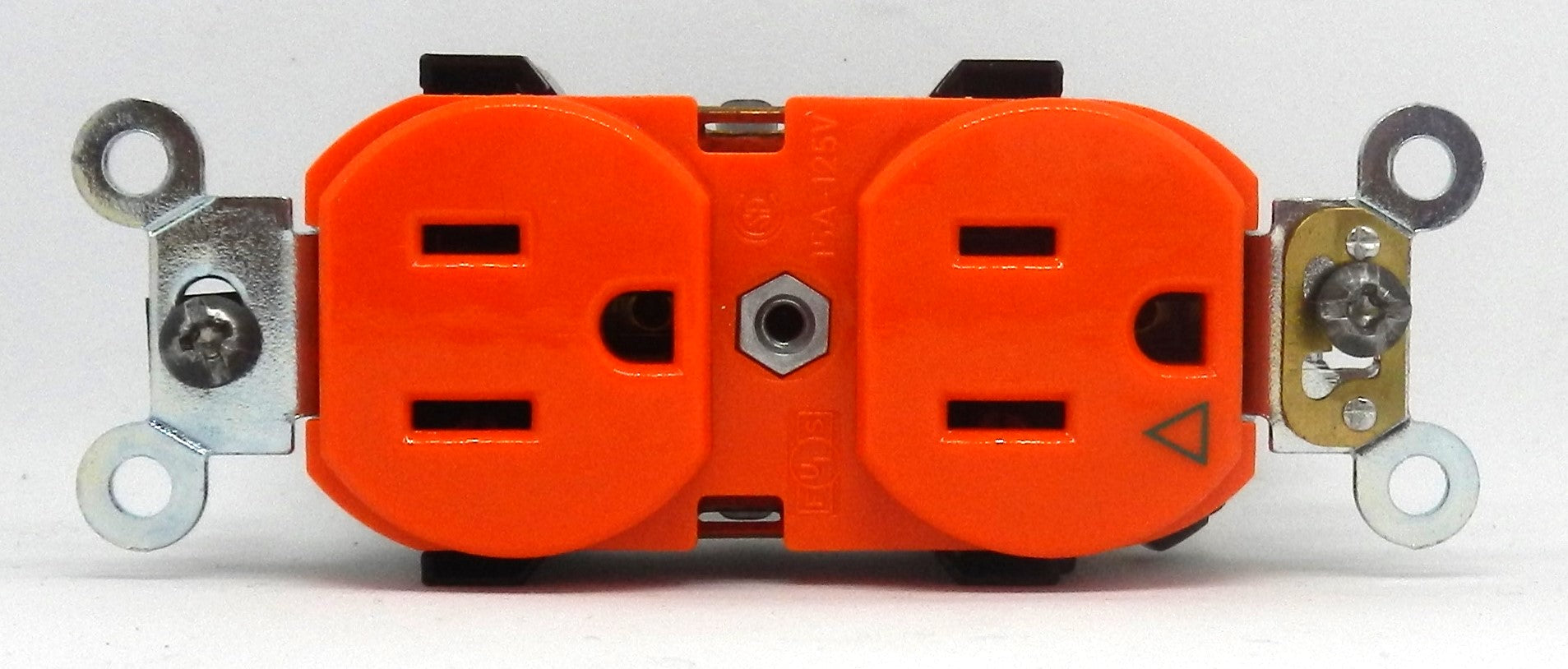

5262-IGO Leviton 15A 125V Industrial Grade Isolated Ground Duplex Receptacle Orange NEMA 5-15R

Description:

• Genuine Leviton industrial-grade isolated ground duplex receptacle for commercial and industrial electrical installations
• Rated for 15 Amp, 125 Volt operation with NEMA 5-15R configuration
• Isolated Ground (IG) design provides a dedicated grounding path for sensitive electronic equipment, reducing electrical noise and interference
• Heavy-duty specification-grade construction for long service life in demanding environments
• Features 2-pole, 3-wire grounding configuration with straight blade receptacle design

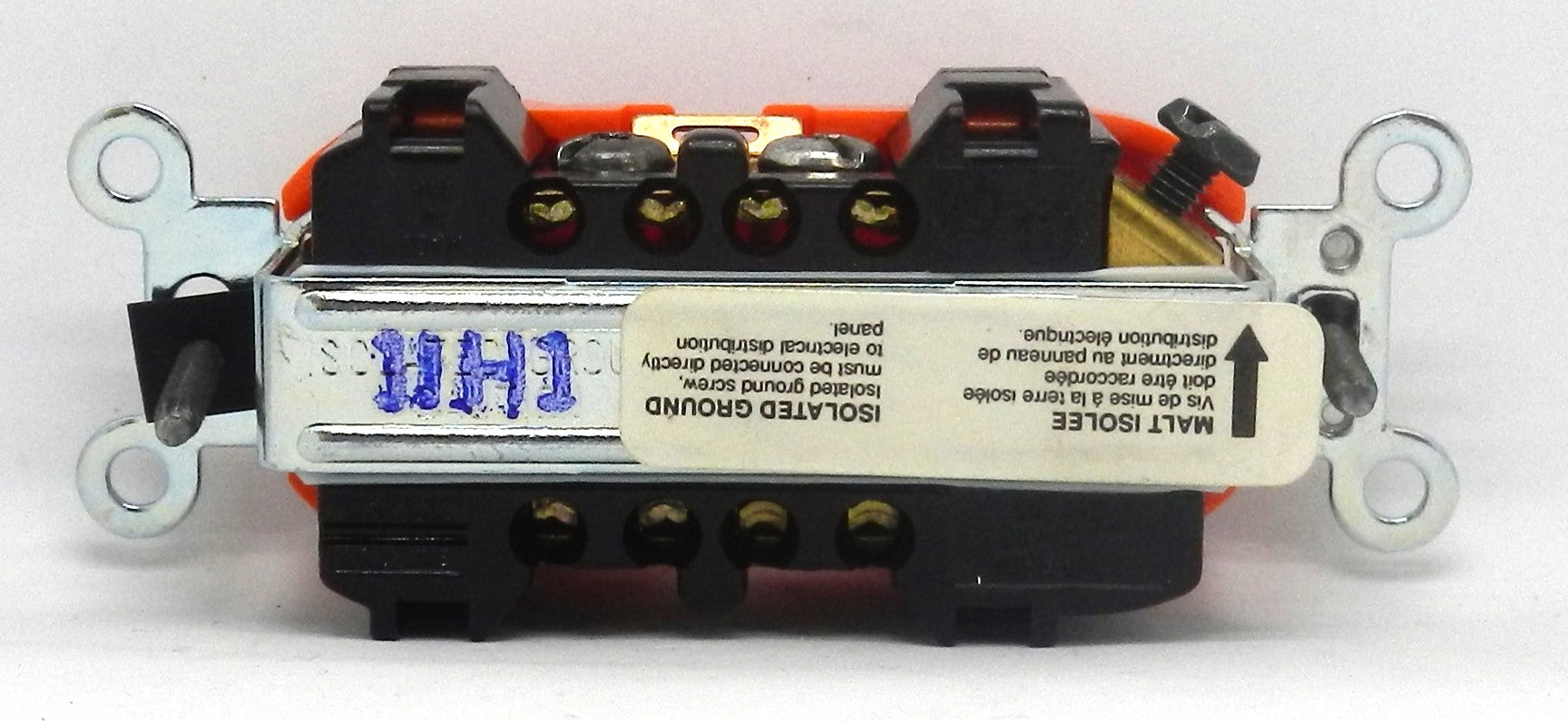

• Supports back and side wiring using #14–#10 AWG solid or stranded copper conductors
• Durable thermoplastic housing with impact-resistant face and galvanized steel mounting strap
• Self-grounding when installed in a properly grounded metallic outlet box
• Ideal for data centers, hospitals, laboratories, industrial control panels, automation systems, UPS installations, and sensitive electronic equipment
• UL Listed, CSA Certified, and compliant with UL 498, NEMA WD-1, and NEMA WD-6 standards.

Specifications:

• Manufacturer Name: Leviton
• Part Number (MPN): 5262-IGO
• Product Series: Heavy-Duty Industrial Specification Grade
• Product Type: Duplex Receptacle
• Current Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Configuration: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Ground Type: Isolated Ground
• Receptacle Type: Duplex
• Connection Type: Back Wire / Side Wire
• Terminal Wire Size: #14–#10 AWG
• Mounting Type: Flush Mount / Wall Box
• Housing Material: PBT Polyester Blend
• Strap Material: Galvanized Steel
• Contact Material: Phosphor Bronze
• Operating Temperature: -40°C to +75°C
• Dielectric Voltage: 3000V Minimum
• Flammability Rating: UL94 V-0
• Certifications:
  • UL 498
  • CSA C22.2 No. 42
  • NEMA WD-1
  • NEMA WD-6
  • NOM
  • RoHS Compliant
• Applications:
  • Industrial Facilities
  • Data Centers
  • Medical Equipment
  • Laboratories
  • Control Panels
  • Commercial Buildings
  • Sensitive Electronic Equipment

Dimensions:

• Height: 4.06 in (103.2 mm)
• Width: 1.71 in (43.4 mm)
• Depth: 1.13 in (28.7 mm).

Weight:

• Approximate Weight: 0.12 kg (0.26 lb).
