N1303DS Leviton Powerswitch AC Manual Motor Starter 30A 600V 3-Pole Type 1 Enclosed Switch

Description:

• Genuine Leviton Powerswitch® AC manual motor starter designed for reliable industrial motor control applications
• Rated 30 Amps, 600 VAC for three-phase motor switching and disconnect applications

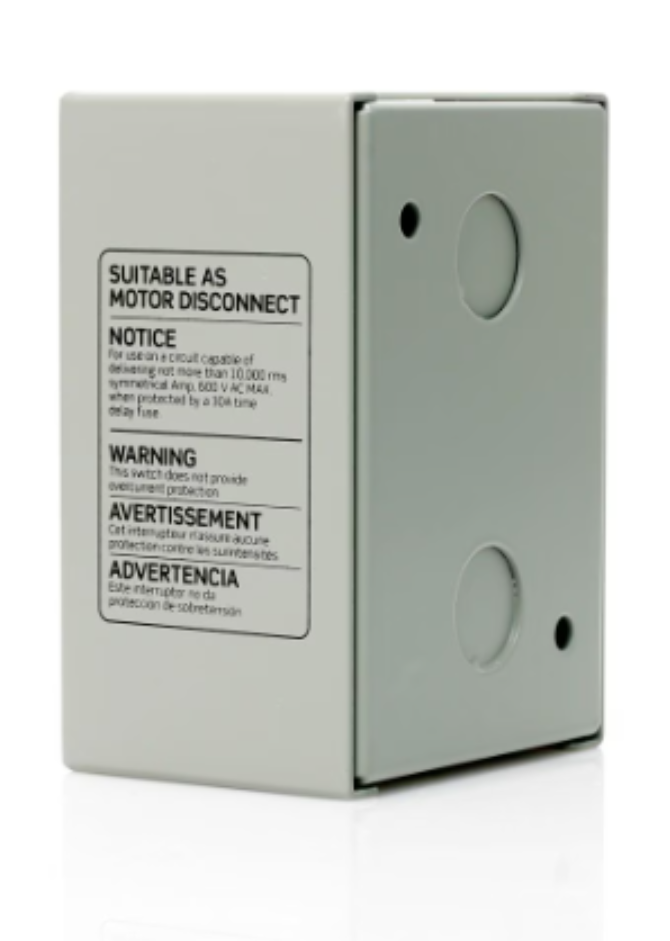

• 3-pole toggle-operated manual motor controller housed in a NEMA Type 1 steel enclosure
• Suitable for use as a motor disconnect switch in commercial and industrial installations
• Heavy-duty industrial-grade construction with silver alloy contacts for long service life

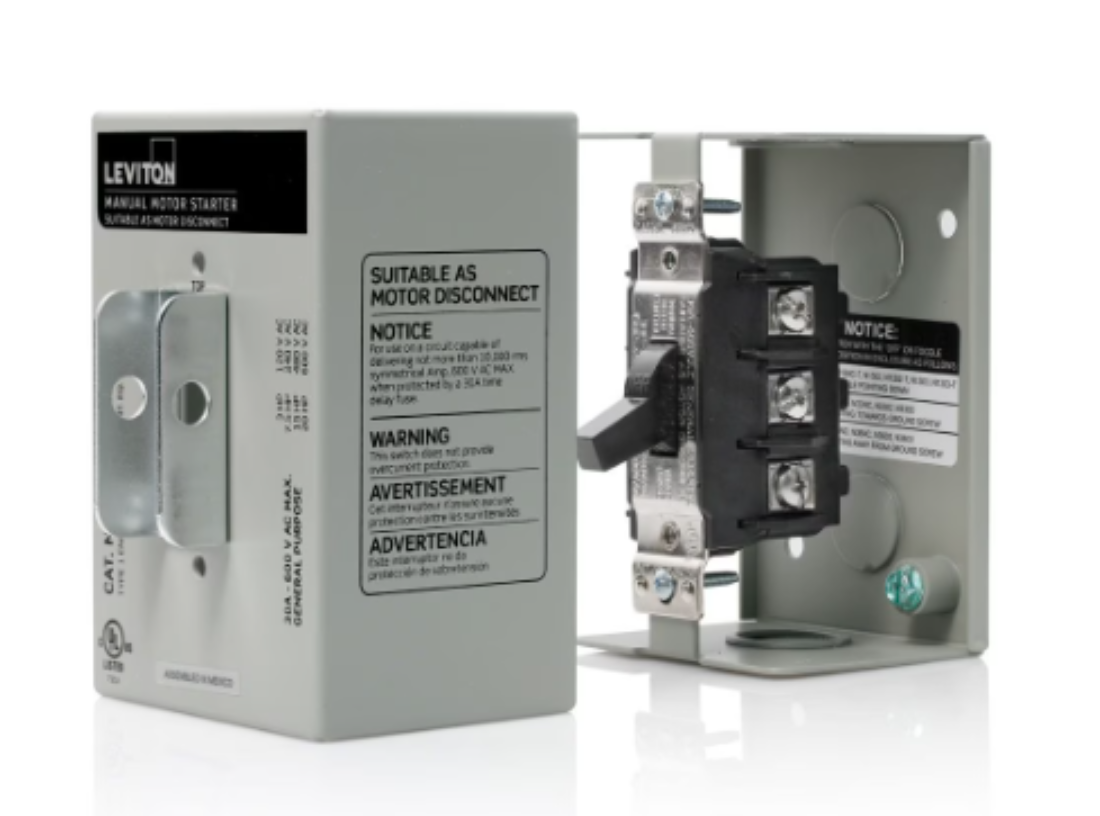

• Back and side wiring terminals provide flexible installation options
• Grounded metal enclosure enhances operator safety
• Thermoplastic switch body resists heat, impact, tracking, and electrical arcing
• Ideal for conveyors, pumps, compressors, HVAC equipment, machine tools, and industrial machinery
• Manufactured by Leviton and backed by a 10-year limited warranty.

Specifications:

• Manufacturer Name: Leviton
• Part Number (MPN): N1303DS (N1303-DS)
• Product Series: Powerswitch®
• Product Type: AC Manual Motor Starter
• Switch Type: Manual Motor Controller
• Number of Poles: 3
• Action: TPST (Three-Pole Single Throw)
• Amperage Rating: 30 A
• Voltage Rating: 600 VAC
• Enclosure Rating: NEMA Type 1
• Enclosure Material: Steel
• Wiring Method: Back & Side Wire
• Terminal Wire Size: #10–#8 AWG
• Grounding: Grounded to Enclosure
• Operating Temperature: -40°C to +60°C
• Dielectric Strength: 2200 V for 1 Minute
• Endurance: 6,000 Inductive Motor Load Cycles
• Contact Material: Silver-Cadmium Alloy
• Certifications:
  • UL 60947-4-1
  • CSA C22.2 No. 111
  • ANSI C-73
  • NEMA WD-1 & WD-6
  • NOM Certified
• Country of Origin: Mexico
• Application: Manual Motor Starting, Motor Disconnect, Pumps, Compressors, Conveyors, HVAC Equipment, Industrial Control Panels, Manufacturing Equipment.

Dimensions:

• Height: 4.75 in (121 mm)
• Width: 3.25 in (83 mm)
• Depth: 3.16 in (80 mm).

Weight:

• Approximate Weight: 0.79 kg (1.74 lb).
