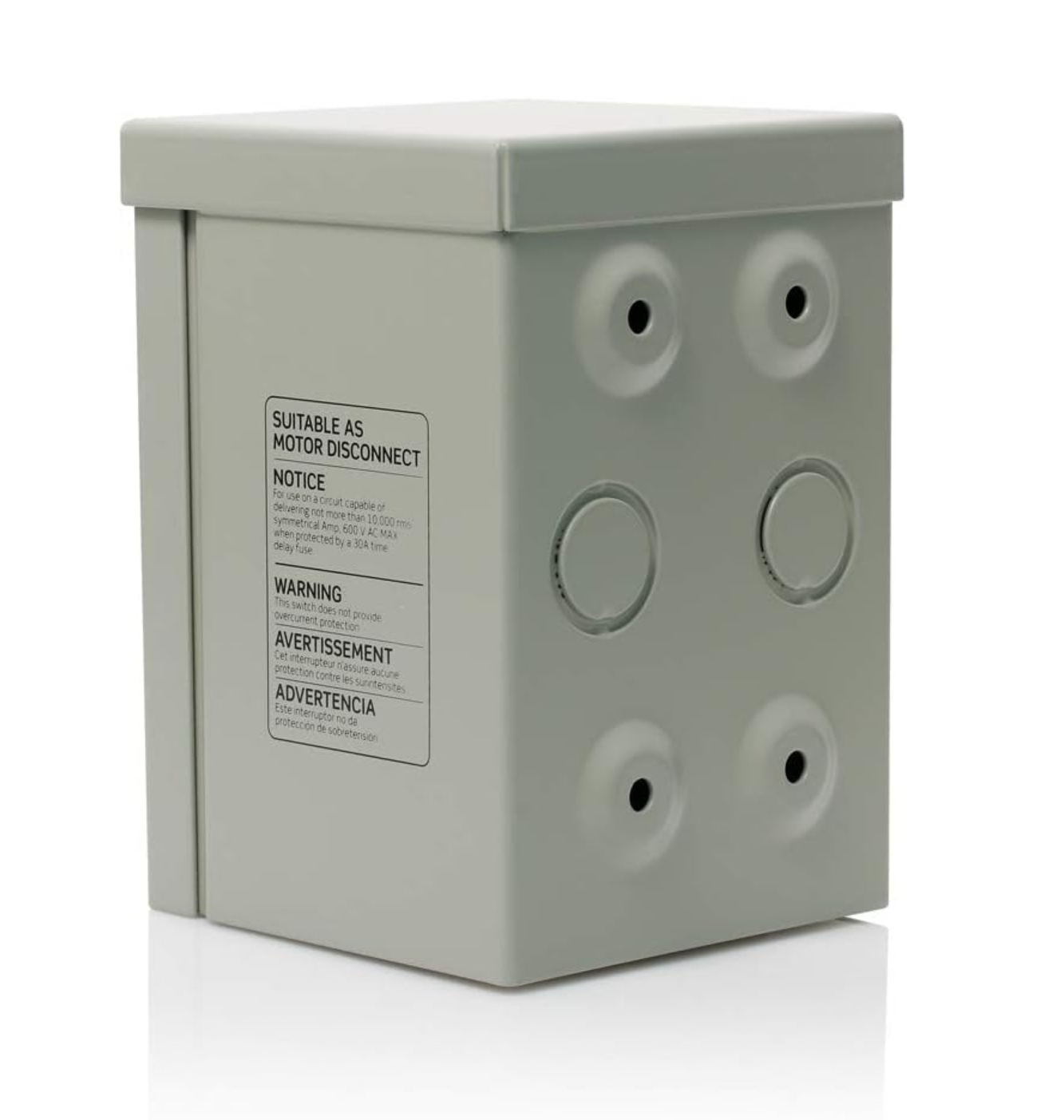

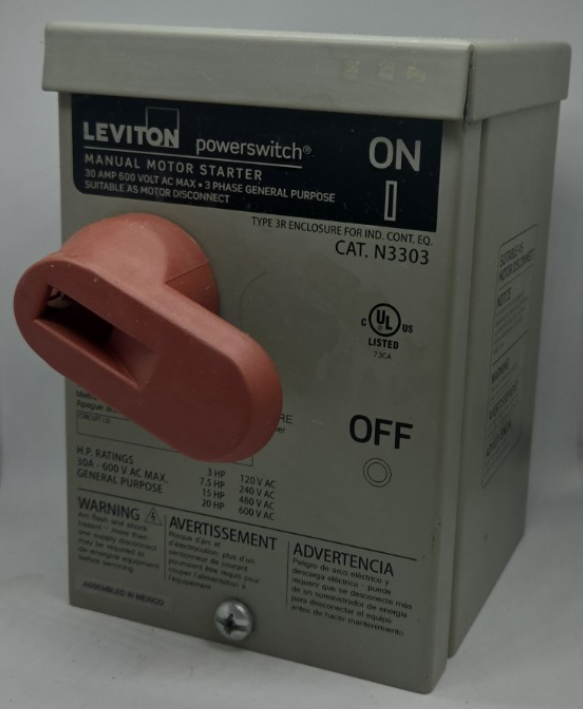

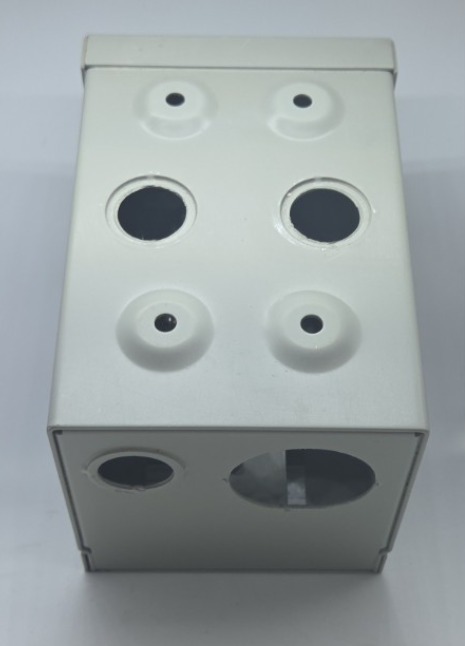

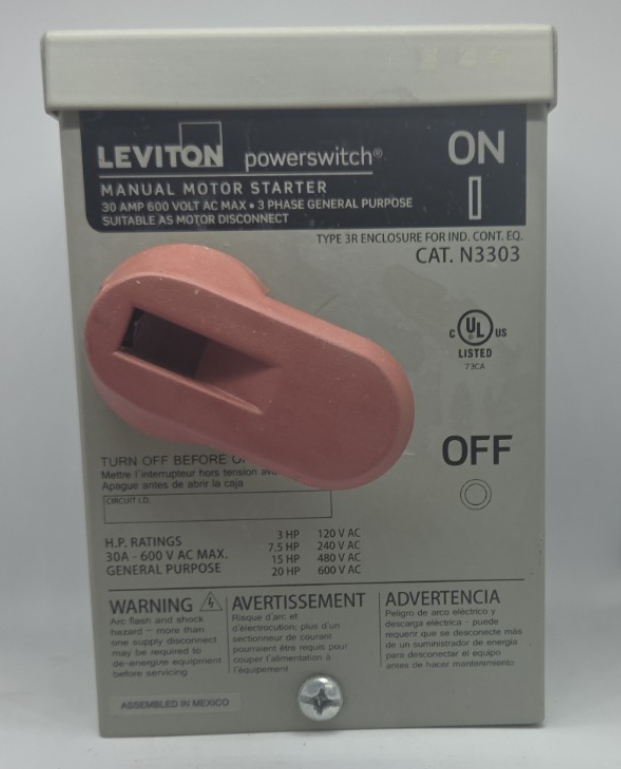

N3303 Leviton Powerswitch Manual Motor Starter Switch 30A 600V 3-Phase Industrial Grade

Description:

• Genuine Leviton Powerswitch® manual motor starter switch for industrial motor control applications
• Rated 30 Amps, 600 VAC for reliable switching of three-phase motor loads
• Three-pole (TPST) manual motor controller suitable for motor disconnect applications
• Heavy-duty industrial-grade construction with fast-make/slow-break switching mechanism
• Silver-alloy contacts provide excellent conductivity and long service life
• Oversized toggle handle allows easy operation, even while wearing gloves
• Thermoplastic housing resists impact, heat, chemicals, tracking, and arcing
• Back and side wiring terminals simplify installation and maintenance
• Ideal for conveyors, pumps, compressors, HVAC equipment, machine tools, and industrial machinery
• Listed to UL 60947-4-1 and backed by Leviton's limited 10-year warranty.

Specifications:

• Manufacturer Name: Leviton
• Part Number (MPN): N3303
• Product Series: Powerswitch®
• Product Type: Manual Motor Starter Switch
• Switch Type: Manual Motor Controller
• Amperage Rating: 30 A
• Rated Voltage: 600 VAC
• Number of Poles: 3
• Phase: 3-Phase
• Action: TPST (Three-Pole Single Throw)
• Wiring: Back & Side Wire
• Terminal Wire Size: #10–#8 AWG
• Dielectric Strength: 2200 V for 1 Minute
• Endurance: 6,000 Inductive Motor Load Cycles
• Operating Temperature: -40°C to +60°C
• Contacts: Silver-Cadmium Alloy
• Housing Material: Thermoplastic Polyester
• Mounting Strap: Nickel-Plated Brass
• Standards: UL 60947-4-1, CSA C22.2 No. 111, NEMA WD-1 & WD-6
• Application: Motor Starters, Pumps, Conveyors, Air Compressors, HVAC Equipment, Industrial Control Panels, Manufacturing Equipment.

Dimensions:

• Height: 6.15 in
• Width: 4.26 in
• Depth: 5.42 in

Weight:

• Approximate Weight: 1.6 kg (3.5 lb)
