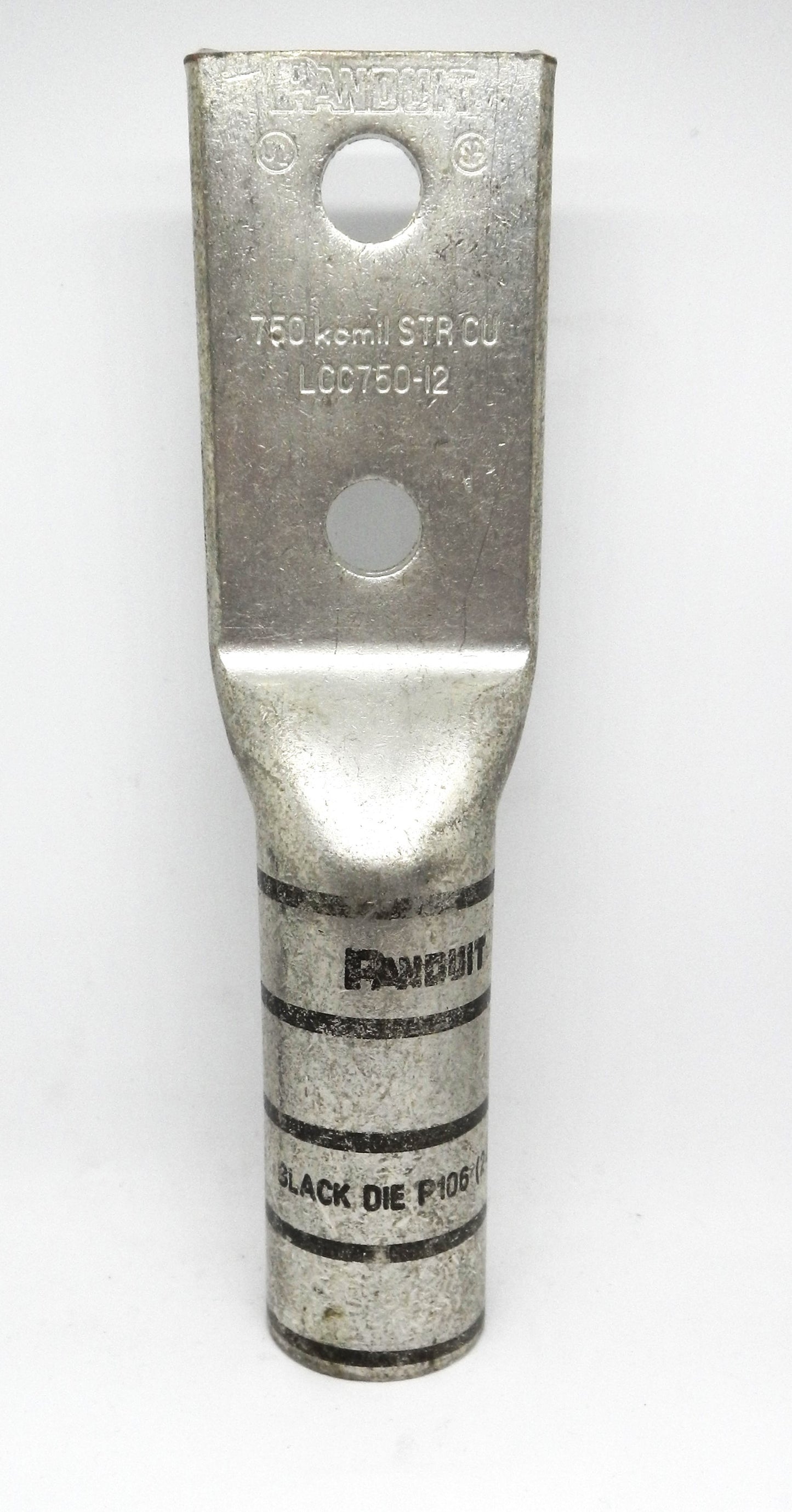

750 KCMIL 2-Hole Copper Compression Lug Tin-Plated 1/2 in Stud Long Barrel Crimp Terminal

Description:

• Premium 2-hole copper compression lug designed for terminating 750 KCMIL stranded copper conductors
• Manufactured from high-conductivity electrolytic copper for maximum electrical performance
• Tin-plated finish provides excellent corrosion resistance and is suitable for harsh industrial environments
• Long barrel design increases crimping area for improved mechanical strength and electrical conductivity
• Two-hole NEMA mounting pad helps prevent connector rotation and provides a secure connection to bus bars and equipment terminals
• Chamfered barrel entry allows smooth conductor insertion while minimizing strand damage
• Suitable for power distribution, switchgear, transformers, motor control centers, panelboards, and industrial electrical installations
• Rated for applications up to 35 kV when installed with approved crimping tools and dies
• Meets UL 486A-486B and CSA requirements for copper compression terminals.

Specifications:

• Product Type: Copper Compression Lug
• Conductor Size: 750 KCMIL
• Conductor Material: Copper
• Number of Mounting Holes: 2
• Stud Size: 1/2 in
• Hole Spacing: 1-3/4 in (44.5 mm)
• Barrel Type: Long Barrel
• Terminal Style: Straight
• Material: High-Conductivity Copper
• Finish: Electro Tin-Plated
• Connection Type: Compression Crimp
• Voltage Rating: 35 kV Maximum
• Temperature Rating: 90°C
• Standards:
  • UL 486A-486B Listed
  • CSA Certified
  • RoHS Compliant
• Applications:
  • Power Distribution
  • Switchgear
  • Bus Bars
  • Transformers
  • Industrial Control Panels
  • Motor Control Centers
  • Electrical Distribution Systems

Dimensions:

• Conductor Size: 750 KCMIL
• Stud Size: 1/2 in
• Hole Spacing: 1.75 in
• Tongue Width: 1.91 in
• Overall Length: 6.87 in (174.5 mm)

Weight:

• Approximate Weight: 0.45 kg (1.0 lb) (varies slightly by manufacturer).
