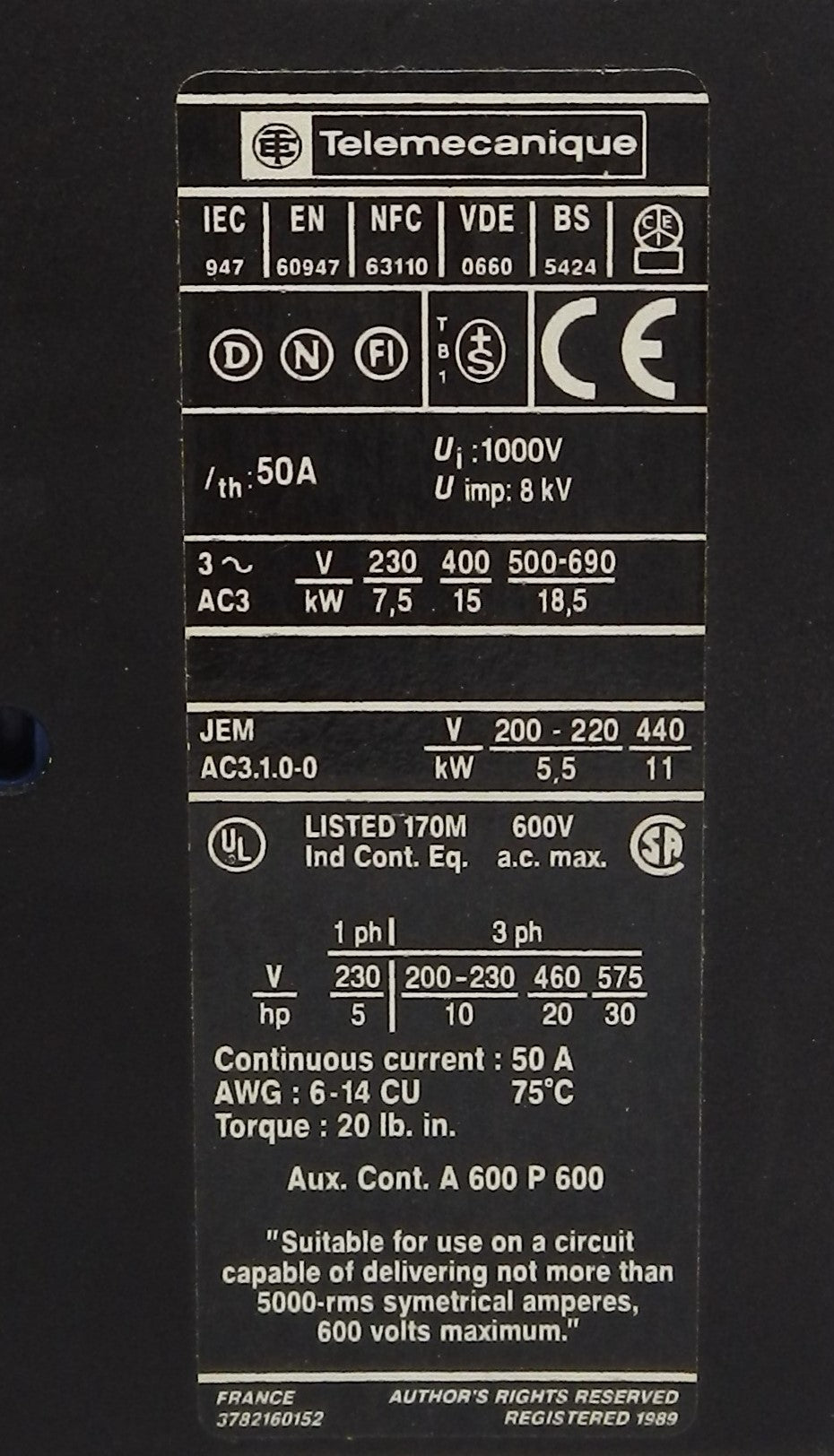

LP1 D32 01 Telemecanique IEC Contactor 32A 3-Pole 1NC Motor Control Contactor

Description:

• Genuine Telemecanique (Schneider Electric) IEC contactor for industrial motor control and automation applications
• Rated for 32A AC-3 motor switching duty
• Features 3 Normally Open (3 NO) main power contacts and 1 Normally Closed (1 NC) auxiliary contact
• Designed for controlling three-phase motors, compressors, pumps, conveyors, HVAC equipment, and industrial machinery
• Coil voltage is determined by the suffix following the base part number (for example: B7, F7, G7, M7, P7, U7, etc.)
• Supports clip-on auxiliary contacts, overload relays, surge suppressors, timers, and mechanical interlocks
• Compact IEC design with 35 mm DIN rail or panel mounting
• Screw terminal connections provide secure and reliable field wiring
• Ideal for industrial automation, OEM equipment, machine control panels, and motor starters
• Part of the Telemecanique TeSys D contactor family.

Specifications:

• Manufacturer Name: Telemecanique (Schneider Electric)
• Part Number (MPN): LP1 D32 01
• Product Series: TeSys D
• Product Type: IEC Contactor
• Rated Operational Current (AC-3): 32 A
• Number of Poles: 3
• Main Contacts: 3 Normally Open (3 NO)
• Auxiliary Contacts: 1 Normally Closed (1 NC)
• Utilization Category: AC-3
• Rated Insulation Voltage: 690 VAC
• Rated Operational Voltage: Up to 690 VAC
• Mounting Type:
  • 35 mm DIN Rail
  • Panel Mount
• Terminal Type: Screw Clamp
• Mechanical Durability: Up to 10 million operations
• Electrical Durability: Up to 1 million operations (application dependent)
• Compatible Accessories:
  • TeSys D Thermal Overload Relays
  • Auxiliary Contact Blocks
  • Mechanical Interlocks
  • Surge Suppressors
  • Timing Modules
• Applications:
  • Motor Starters
  • Industrial Automation
  • Machine Control
  • HVAC Systems
  • Pumps
  • Compressors
  • Conveyor Systems
  • OEM Equipment

Dimensions:

• Height: 85 mm (3.35 in)
• Width: 45 mm (1.77 in)
• Depth: 92 mm (3.62 in)

Weight:

• Approximate Weight: 0.42 kg (0.93 lb).
