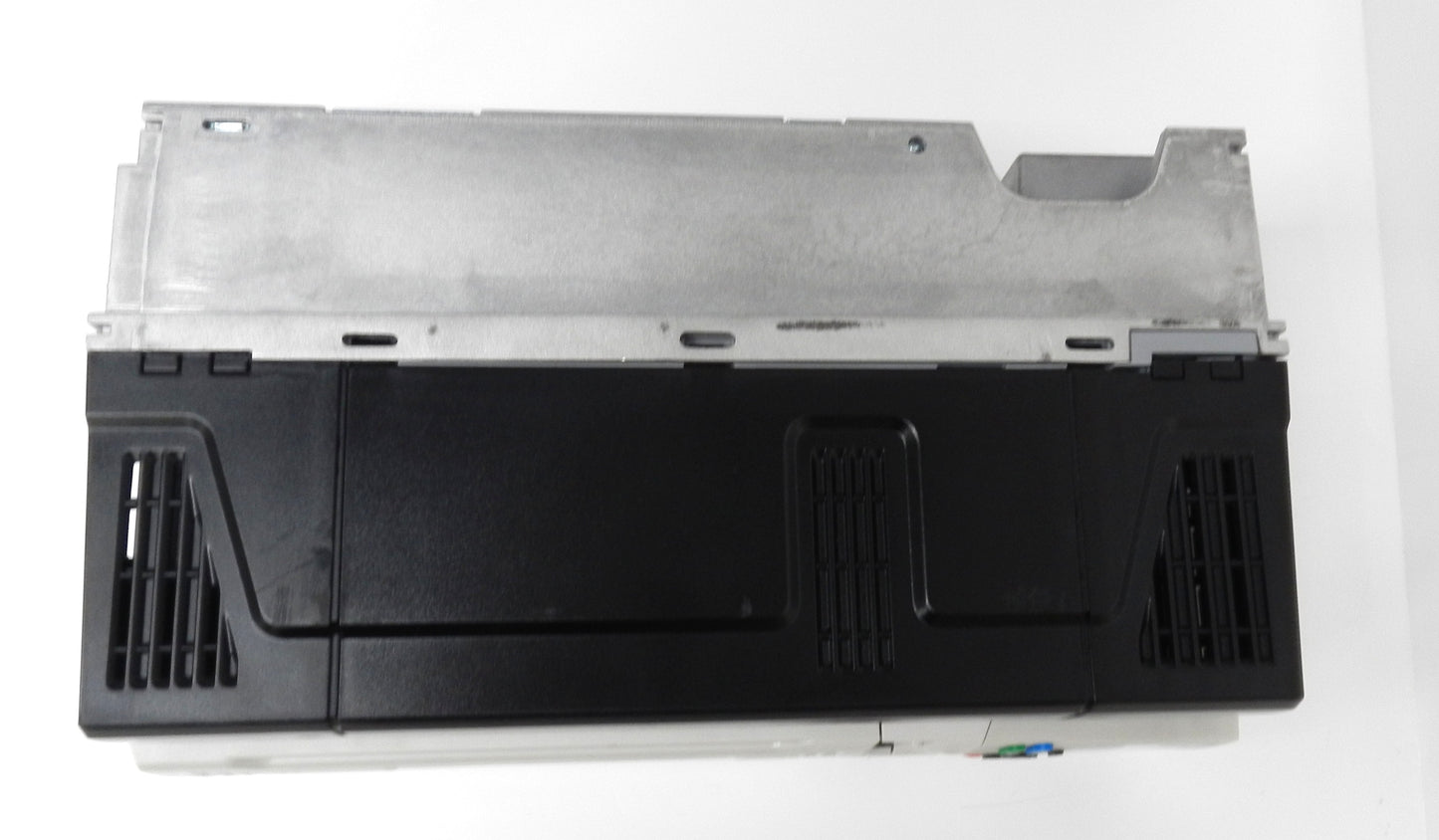

M700-05200250A101 Control Techniques Unidrive M700 VFD 5.5/7.5kW 200-240V 3PH

Description

• Control Techniques Unidrive M700 high-performance variable frequency drive
• Model: M700-05200250A101
• Base drive model: M700-05200250A

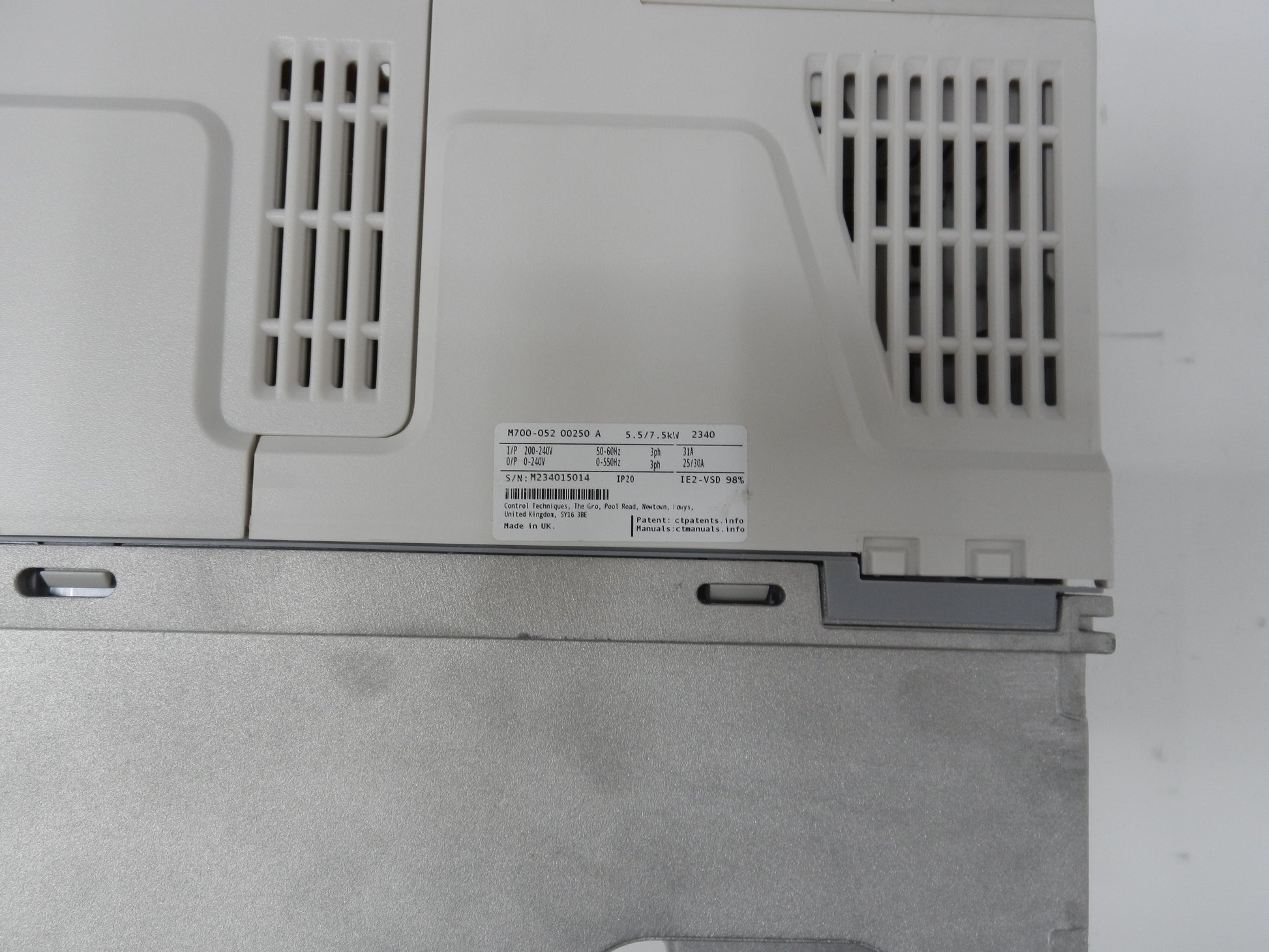

• Rated power shown on nameplate: 5.5 / 7.5 kW
• Designed for advanced industrial motor control and automation applications
• 200–240 VAC three-phase input
• 0–240 VAC three-phase output
• 50–60 Hz input frequency
• 0–550 Hz output frequency

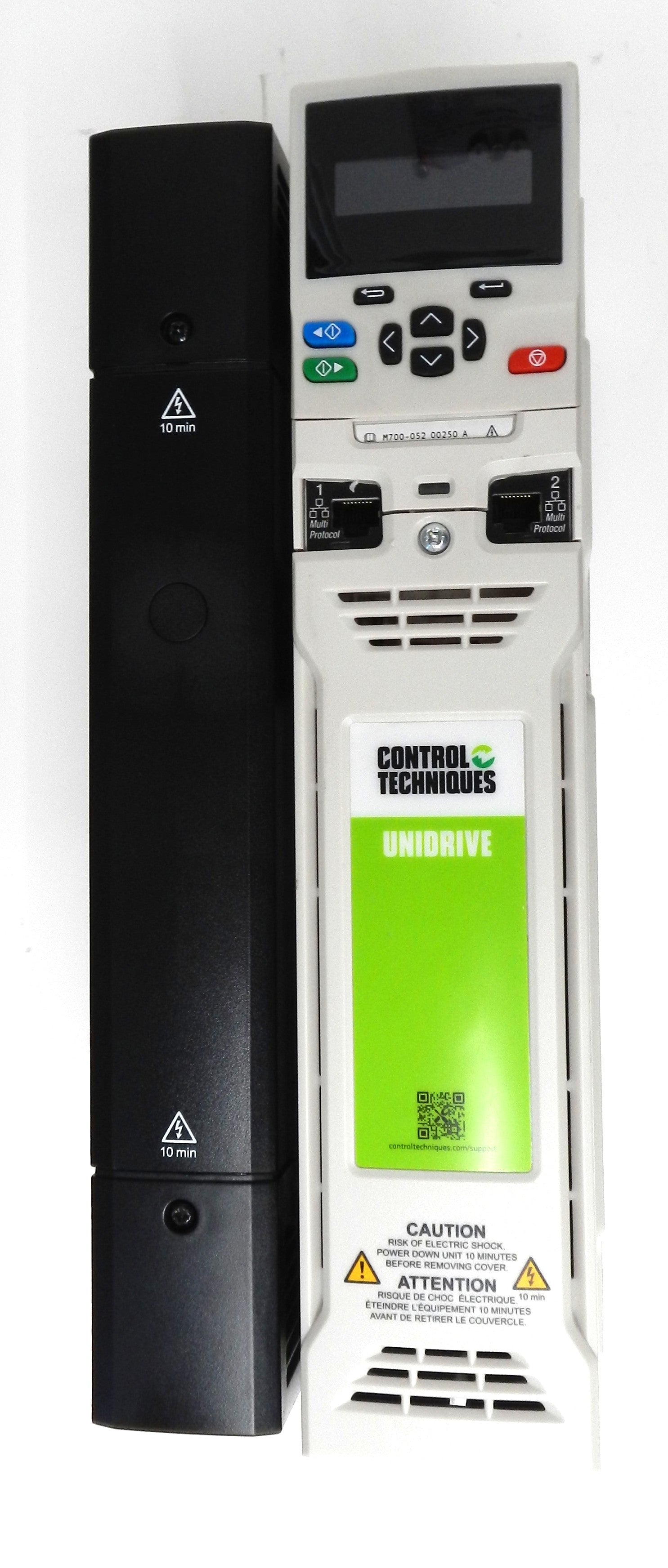

• Equipped with front keypad/display for configuration and operation
• Dual Multi Protocol communication ports
• Suitable for industrial machinery, automation and motion-control systems
• IP20 enclosure rating
• Made in UK

Specifications

• Manufacturer: Control Techniques
• Series: Unidrive M700
• Model: M700-05200250A101
• Base Model: M700-05200250A
• Product Type: Variable Frequency Drive / AC Drive
• Rated Power: 5.5 / 7.5 kW
• Input Voltage: 200–240 VAC
• Input Frequency: 50–60 Hz
• Input Phase: 3-Phase
• Input Current: 31 A
• Output Voltage: 0–240 VAC
• Output Frequency: 0–550 Hz
• Output Phase: 3-Phase
• Output Current: 25 / 30 A
• Enclosure Rating: IP20
• Efficiency Classification: IE2 – VSD 98%
• Communication: Dual Multi Protocol ports
• Display: Integrated keypad/display
• Country of Manufacture: United Kingdom
• Application: Industrial motor control, machinery, automation and motion control

Dimensions

• Approximate Height: 480.5 mm / 18.9 in
• Approximate Width: 210.5 mm / 8.3 in
• Approximate Depth: 250 mm / 9.8 in
• Note: Dimensions should be physically verified before entering shipping/package dimensions.

Weight

• Product Weight: Approximately 15 kg / 33 lb
• Note: Recommended to physically weigh the unit before entering the Shopify shipping weight.
