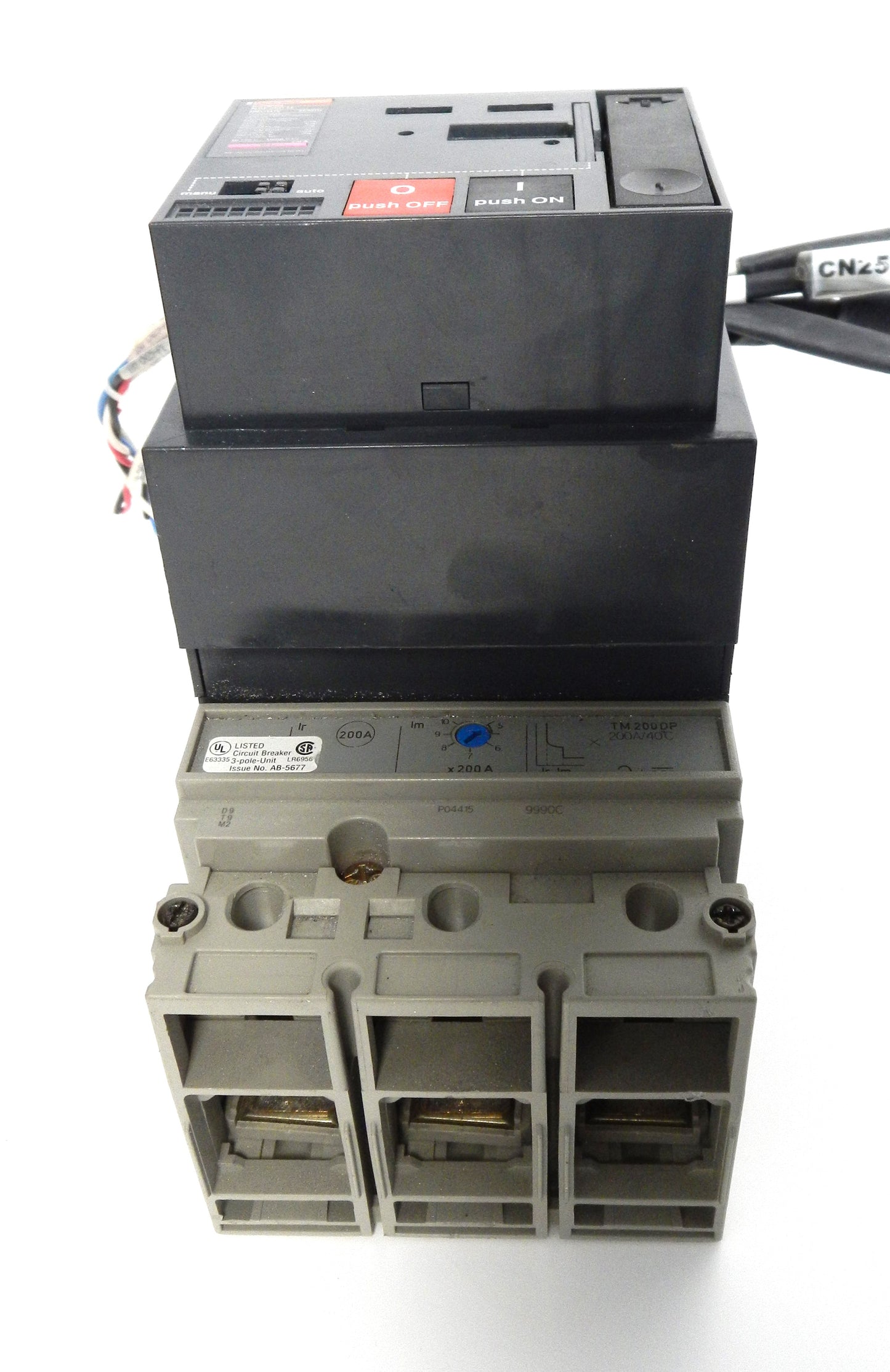

NSF250H Merlin Gerin Compact 250A 3-Pole 600VAC Molded Case Circuit Breaker Thermal Magnetic

Description:

• Genuine Merlin Gerin Compact molded case circuit breaker for industrial power distribution and equipment protection
• Rated at 250 Amps with a 3-pole configuration for three-phase electrical systems
• Operates at 600 VAC and provides dependable overload and short-circuit protection
• Thermal-magnetic trip unit with Long-Time and Instantaneous (LI) trip functions for reliable circuit protection
• 65 kA interrupting capacity at 480 VAC for high fault-current industrial applications
• Bolt-on mounting configuration with load-side lugs for secure installation
• Designed for industrial switchboards, motor control centers, panelboards, OEM equipment, and power distribution systems
• Compatible with Merlin Gerin Compact NS series accessories and industrial installations
• Suitable for manufacturing facilities, commercial buildings, utilities, and heavy-duty industrial automation
• Discontinued by the manufacturer, making it ideal for maintenance and replacement of existing systems.

Specifications:

• Manufacturer Name: Merlin Gerin (Schneider Electric)
• Part Number (MPN): NSF250H
• Product Family: Compact NSF
• Product Type: Molded Case Circuit Breaker (MCCB)
• Rated Current: 250 A
• Number of Poles: 3
• Rated Voltage: 600 VAC
• Phase: 3 Phase
• Interrupting Capacity: 65 kA @ 480 VAC
• Trip Unit: Thermal-Magnetic
• Trip Functions:
  • Long-Time (L)
  • Instantaneous (I)
• Mounting Type: Bolt-On
• Terminal Type: Load Lugs
• Applications:
  • Power Distribution
  • Motor Protection
  • Industrial Control Panels
  • Switchboards
  • MCCs
  • Manufacturing Equipment
  • OEM Machinery
  • Commercial Electrical Systems
• Lifecycle Status: Discontinued

Dimensions:

• Standard Compact NSF250H molded case circuit breaker form factor for bolt-on industrial installations.

Weight:

• Approximate Weight: 5.44 kg (12 lb).
